4 Core XLPE Insulated Overhead Service Drop Cable Quadruplex ABC Cable

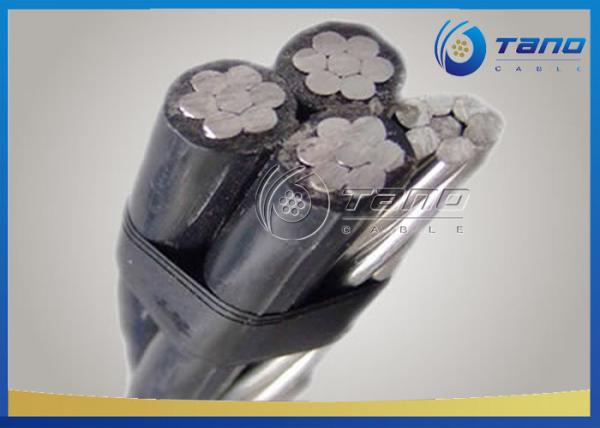

4 Core XLPE Insulated Overhead Service Drop Cable Quadruplex ABC Cable image
Brand Name :
TANO CBALE
Model Number :
4 Core XLPE Insulated Quadruple
Certification :
ISO CCC CE UL
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500000 Km Per Month
Delivery Time :
5-20 days
Packaging Details :
Wood Wood/ Steel Drum
Conductor material :
Aluminum
Insulation material :
XLPE,PE,XLPE or PVC
Application :
Overhead,overhead power transmission line
Type :
Low Voltage
Standard :
ASTM BS DIN IEC
Core :
4
Sample :
free sample available
Supply Ability:
2000 Kilometer/Kilometers per Month
Packaging Details
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Port
Qingdao, Shanghai, Tianjin, Ningbo etc…
Picture Example:
Lead Time :
| Quantity(Meters) | 1 – 10000 | >10000 |
| Est. Time(days) | 7 | To be negotiated |
4 Core XLPE Insulated Quadruplex ABC Cable Overhead Power Cable
Application
Primarily used for overhead service drop applications,such as:street lighting.outdoor lighting and temporary service for construction.To be used at voltages of 600v phase-to-phase or less and at at conductor temperatures not to exceed 75℃ for polyethylene(PE) insulated conductors or 90℃ cross-linked polyethylene(XLPE) insulated conductors.
Standards
ASTM – B-230 Aluminum Wire,1350-H19 for electrical purposes ASTM – B-231 Aluminum Conductors, Concentric-Lay-Stranded ASTM – B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced ICEA S-61-402 and ICEA S66-524
Technical Specification
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Morochuca | 6 | 1 | 45 | 6 | 43252 | 1190 | 145 | 145 | 75 | 60 |
| Chola | 6 | 7 | 45 | 6 | 43252 | 1190 | 153 | 153 | 75 | 60 |
| Morgan | 4 | 1 | 45 | 4 | 43252 | 1860 | 217 | 217 | 100 | 80 |
| Hackney | 4 | 7 | 45 | 4 | 43252 | 1860 | 229 | 229 | 100 | 80 |
| Palomino | 2 | 7 | 45 | 2 | 43252 | 2850 | 347 | 347 | 135 | 105 |
| Costena | 1/0 | 9 | 60 | 1/0 | 43252 | 4380 | 549 | 549 | 180 | 140 |
| Grullo | 2/0 | 11 | 60 | 2/0 | 43252 | 5310 | 677 | 677 | 205 | 160 |
| Suffolk | 3/0 | 17 | 60 | 3/0 | 43252 | 6620 | 837 | 837 | 235 | 185 |
| Appaloosa | 4/0 | 18 | 60 | 4/0 | 43252 | 8350 | 1038 | 1038 | 275 | 210 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 43252 | 8350 | 1494 | 1494 | 370 | 280 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 43118 | 8680 | 1568 | 1568 | 370 | 280 |
| *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP). +Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun. |
||||||||||
Structure
Construction
Conductor:
| Phase Conductor | Bare Neutral Messenger |
| AAC | AAC |
| ACSR | |
| Alloy |
Insulation material:
PE or XLPE or PVC or as the customer's demands.
Packing
For the Aerial Bundled Cable(ABC Cable) (aluminum or copper conductor material),we usually use the standard wooden drum to package as the belowing picture.We also can design the different package types according to the customer's requirements.
We are China 4 Core XLPE Insulated Overhead Service Drop Cable Quadruplex ABC Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
