4 Cores 132kV XLPE High Voltage Power Cables For Construction

 China 4 Cores 132kV XLPE High Voltage Power Cables For Construction supplier

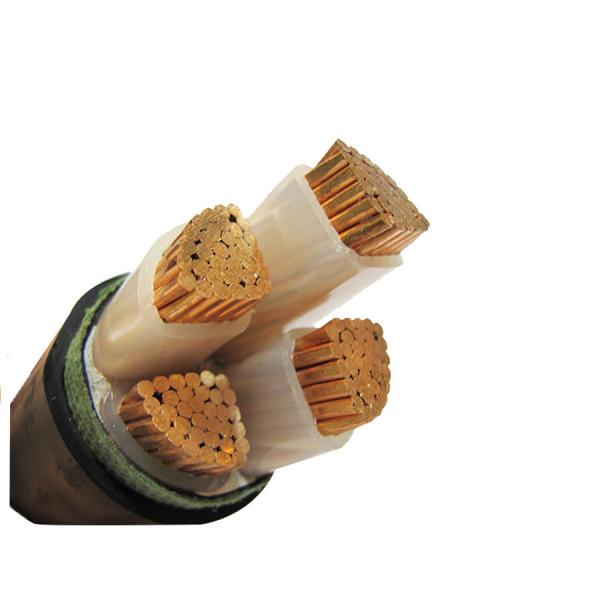

4 Cores 132kV XLPE High Voltage Power Cables For Construction image

Get a Quote Email to us

Place of Origin :
china

Brand Name :
OEM

Certification :
ISO/RoHS/CE

Supply Ability :
50000meters per week

Packaging Details :
wooden drum

MOQ :
200 meters

Price :
Negotiable

Insulation Material :
PVC

Type :
High Voltage

Application :
Construction

Conductor Material :
Copper, Copper Clad Aluminum, copper,aluminium alloy

Jacket :
PE

Core :
4 Cores

Rated voltage :
26/35kV

Color :
Black

Product name :
Steel Armored Cable

product name :
High voltage power cable XLPE cable manufacturer 132kV cable

Port :
Shenzhen/Guangzhou/Hongkong

Delivery Time :
5-15day

Payment Terms :
L/C, T/T

4 Cores 132kV XLPE High Voltage Power Cables For Construction

Product Description

1. Application :

Used for indoor & outdoor laying,The Cable can bear a certain laying traction,but can't bear the mechanical force from outide.Single core cable can't be allowed to lay in the magnetic pipe . The Cable is used for fixed laying in the rated voltage (U0/U)0.6/1KV,3.6/6KV & below for power transmission.

2. Product implementation standard:

GB/T12706-2002 Rated Voltage 1KV(uM=1.2KV) to 35KV(uM=40.5Kv) insulation electrical power & auxilary IEC60502-1997 Rated voltage 1-30kV Insulation electrical power cable & auxiliaries.

3. Operational performances:

(1) Working temperature:

The Max.conductor working temperature: 70℃ Centigrade Conductor short circuit temperature : highest temperature not more than 160℃ , the longest time not more than 5 seconds.

The min.bending radius of cable installation :

Table 1 :

Item

Single core Power Cable

3 Cores Electrical Power Cable

No Armour

With Armour

No Armour

With Armour

The Min.bending radius of cable installation

20D

15D

15D

12D

The min.bending radius near connecting box & terminal cable

15D

12D

12D

10D

Note : "D" refers to outside diameter of electrical power cable.

(2) Installation laying temperature :

Cable installation laying temperature not less than 0℃ Cable current-carrying capacity laying mode & basic parameters: Air laying: enviromental temperature : 40℃ Soil laying: enviromental temperature : 25℃ Soil Thermal resistance coefficient : 1.0.m/W Cable laying arrangments:

Single core calbe arrangment :Flat type. (adjacent space equals to cable outside diameter);

We are China 4 Cores 132kV XLPE High Voltage Power Cables For Construction manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
