40% Conductivity Copper Clad Steel Stranded Wire 19#8 Electric Plated Conductor

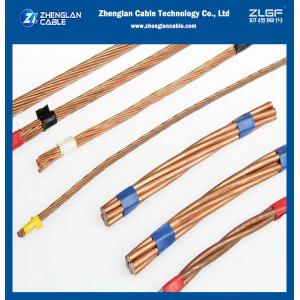

40% Conductivity Copper Clad Steel Stranded Wire 19#8 Electric Plated Conductor image
Product Description:
CCS is also used in the grounding industry, where it is used to make ground rods. The steel core provides the strength and durability needed for the rod to be driven into the ground, while the copper cladding provides the electrical conductivity needed for effective grounding.
Other applications of CCS include making welding wire, automotive brake lines, and heat exchangers. The properties of CCS can be tailored to meet specific requirements by varying the thickness of the copper cladding and the properties of the steel core.
Construction:
CCS wire is formed through electroplating method(taking steel wire as the core and depositing the copper layer evenly on the surface of the steel core) and cladding method (Cladding planished copper stripe concentrically on the outer surface of the steel core).
CCS wire can be divided into six types by conductivity, 15%CCS,18%CCS,21%CCS, 25%CCS, 30%CCS,40%CCS,and two mechanical status: Annealed (A) and Hard drawn(H).
Advantage:
• Substation grounding grid and fence ground
• Transmission lines
• Pole ground wire for distribution lines
• Communications networks
• Utility FTTx networks
Standard:
ASTM, BS, DIN, JIS,etc
Conductivity:
21%IACS-45%IACS
Technical Parameters:
| Parameter | Details |
|---|---|
| Standard | ASTM-B228 |
| No./size of strands | 19#8 |
| Structure No./mm | 19/3.26 |
| Cross-section mm2 | 158.90 |
| Rated strength kN | Grade 40 HS — 126.30 |
| DC Resistance Ω/km | 0.281 |
| Approx. weight kg/km | 1327.2 |
| Electrical conductivity | 40% |
| Min. Break Load kgf | 3904 |
Images:
Packing and Shipping:
- Wooden drum
- Iron frame wooden drum
- Iron drum
Copper Clad Steel Stranded can be shipped via trucks, planes or ships depending on the customer's needs and the quantity of the order.
Support and Services:
We offer a variety of technical support and service options for our Copper clad steel stranded wire products. Our engineers can provide technical advice and guidance on the product’s use, as well as recommendations for optimal performance. We also offer remote diagnostics and troubleshooting services and can provide replacement parts upon request. Additionally, our dedicated customer service team is available to answer any questions or concerns you may have.
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ:
Q: Is your company a factory or a trade company?
A: Factory, more than 20 years in China
Q: How long can I expect to get the sample?
A: After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account
Q: What are your payment terms?
A: We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
Q: What’s the delivery time?
A: Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
Q: What is the minimum order quantity for Copper clad steel stranded wire?
A: The minimum order quantity for CCS is 1000.
We are China 40% Conductivity Copper Clad Steel Stranded Wire 19#8 Electric Plated Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
