4+1 Core Armored LV Power Cable Xlpe Insulated 4 Core Armoured Cable

 China 4+1 Core Armored LV Power Cable Xlpe Insulated 4 Core Armoured Cable supplier

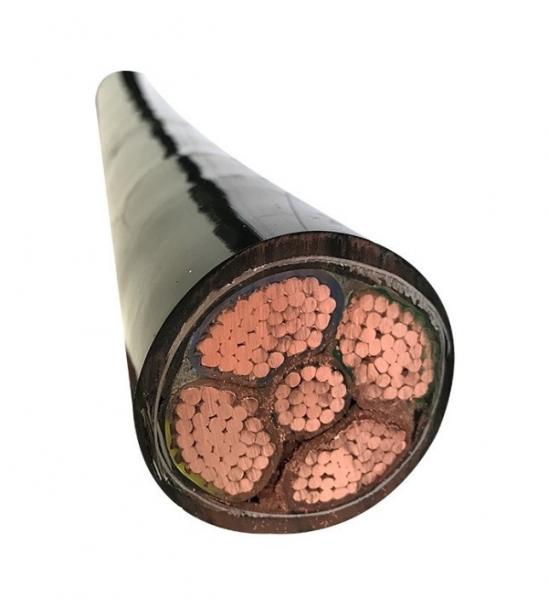

4+1 Core Armored LV Power Cable Xlpe Insulated 4 Core Armoured Cable image

Get a Quote Email to us

Brand Name :
Nuoxing

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-100

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Product Name :
Low Power Cable

Conductor material :
Copper

Insulation material :
XLPE

Application :
Construction,Underground,Industrial

Type :
Low Voltage

Jacket :
PVC

Standard :
IEC60502

Cable Type :
Underground Cable

4+1 Core Armored LV Power Cable 4 Core Armoured Cable

Application:

This product is suitable for AC 50Hz, rated voltage 0.6/1KV line for power transmission and distribution.

Use characteristics:

1. The higher rated temperature of the cable conductor is 70°C.
2. The higher temperature of the cable conductor should not exceed 160℃ during short circuit (longer duration no more than 5s).
3. The ambient temperature when laying the cable should not be lower than 0℃, and the smaller bending radius should not be less than 10 times the outer diameter of the cable.

Construction:

Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polietileno reticulado XLPE
3. Inner sheath:Polyvinyl chloride PVC
4. Armour: Non-magnetic steel-tape
5. Outer sheath: Polyvinyl chloride PVC

Multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: crosslinked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Steel-tape
7. Outer sheath: Polyvinyl chloride PVC

Specificaiton:

Product name Low Voltage Electric Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 – 400MM2

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.

We are China 4+1 Core Armored LV Power Cable Xlpe Insulated 4 Core Armoured Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
