5 Core Copper Conductor 35kV XLPE Insulated Power Cable

 China 5 Core Copper Conductor 35kV XLPE Insulated Power Cable supplier

5 Core Copper Conductor 35kV XLPE Insulated Power Cable image

Get a Quote Email to us

Brand Name :
OEM

Certification :
ISO/RoHS/CE

Place of Origin :
china

MOQ :
200 meters

Payment Terms :
L/C, T/T

Supply Ability :
50000meters per week

Delivery Time :
5-15day

Packaging Details :
wooden drum

Price :
Negotiable

Feature :
power cables 5 core

Usage :
industrial,Power station

Standard :
IEC,GB12706

Voltage :
0.6/1KV,Low and Medium Voltage Cable

Insulation :
PVC Insulation Cable

Conductor type :
Stranded Class 2

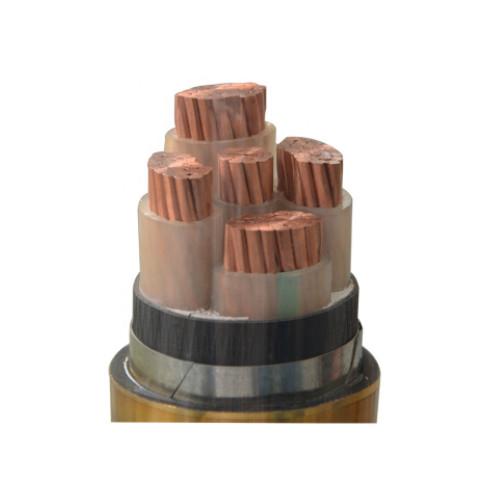

5 Core Copper Conductor 35kV XLPE Insulated Power Cable

The electric cable is applied to transmit and distribute power in power transmission and distribution system of 1kV~35kV or lower. It is widely adopted in the fields including power, construction, industry, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial re-place of PVC insulation or XLPE power cable.

YJV
Copper conductor, xlpe insulated power cable, PVC outer sheath Power Cable
1, 2, 3, 4, 3+1,
5, 4+1, 3+2
1.5~800mm2

YJY
Copper conductor, xlpe insulated power cable, PE outer sheath Power Cable
1, 2, 3, 4, 3+1,
5, 4+1, 3+2
1.5~800mm2

ZA-YJV
ZB-YJV
ZC-YJV
Copper conductor, XLPE insulation flame-retardant Power Cable
1, 2, 3, 4, 3+1,
5, 4+1, 3+2
1.5~800mm2

WDZA-YJY
WDZB-YJY
WDZC-YJY
Copper conductor, XLPE insulation Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable
1, 2, 3, 4, 3+1,
5, 4+1, 3+2
1.5~800mm2

NH-YJV
Copper conductor, XLPE insulation fire-resistant Power Cable
1, 2, 3, 4, 3+1,
5, 4+1, 3+2
1.5~800mm2

0.6/1KV STA SWA armoured customized insulation color XLPE Electrical Cable

Type Description Applications

N2XY/N2XSEY
NA2XY/NA2XSEY

Cu or AL conductor XLPE insulated PVC sheathed power cables. For laying indoors, in tunnels, in ducts. Able to bear extermal mechanical force but not large pulling forces. Single core cables are impermissible to be laid in magnetic ducts.

N2X2Y/N2XSE2Y
NA2X2Y/NA2XSE2Y

Cu or AL conductor XLPE insulated PE sheathed power cables.

N2XBY/N2XSEBY
NA2XBY/NA2XSEBY

Cu or AL conductor XLPE insulated PVC sheathed internal steel tape armoured power cables. For laying indoors, in tunnels, in ducts and underground. Able to bear extermal mechanical force but not large pulling forces, Impermissible to use single core cable in A.C circuit.

N2XB2Y/N2XSEB2Y
NA2XB2Y/NA2XSEB2Y

Cu or AL conductor XLPE insulated PE sheathed internal steel tape armoured power cables.

N2XRY/N2XSERY
NA2XRY/NA2XSERY

Cu or AL conductor XLPE insulated PVC sheathed internal steel wire armoured power cables. For laying in underground areas along route with large difference of elevation, in shafts and in water, able to bear a corresponding pulling forces and external mechanical forces.

N2XR2Y/N2XSER2Y
NA2XR2Y/NA2XSER2Y

Cu or AL conductor XLPE insulated PE sheathed internal steel wire armoured power cables.

0.6/1KV STA SWA armoured customized insulation color XLPE Electrical Cable

We are China 5 Core Copper Conductor 35kV XLPE Insulated Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
