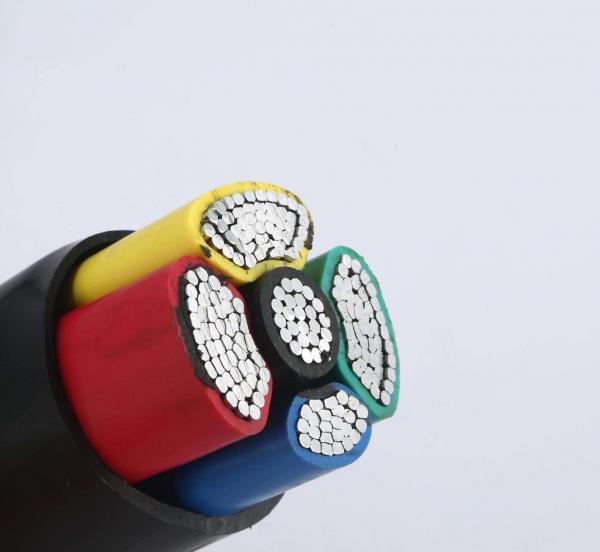

5 Core Pe Xlpe Insulated Electrical Power Cable 25 Mm2
5 Core Pe Xlpe Insulated Electrical Power Cable 25 Mm2 image
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Name :
Copper Conductor Cable
Conductor Material :
Copper
standard :
IEC 60502-1
Outer Sheath :
XLPE
Color :
Customized
Type :
XLPE Underground Cable
5 Core 25 Mm2 Pe Xlpe Insulated Electrical Power Cable
Article number: YJLV
Rated voltage :0.6/1 KV
Standard: GB/T 12706.1-2008, IEC 60502-2004
This product is suitable for power transmission and distribution under AC rated voltage 0.6/1kv and 50Hz operating frequency lines.
| Voltage rating for XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
| 1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
| 0.6/1 kV | 1×4 mm2 | 2×4 mm2 | 3×4 mm2 | 3×4 mm2 + 1×2.5mm2 | 4×4 mm2 | 3×4 mm2 + 2×2.5mm2 | 4×4 mm2 + 1×2.5mm2 | 5×2.5 mm2 |
| 1×6 mm2 | 2×6 mm2 | 3×6 mm2 | 3×6 mm2 + 1×4 mm2 | 4×6 mm2 | 3×6 mm2 + 2×4 mm2 | 4×6 mm2 + 1×4 mm2 | 5×4 mm2 | |
| 1×10 mm2 | 2×10 mm2 | 3×10 mm2 | 3×10 mm2 + 1×6 mm2 | 4×10 mm2 | 3×10 mm2 + 2×6 mm2 | 4×10 mm2 + 1×6 mm2 | 5×6 mm2 | |
| 1×16 mm2 | 2×16 mm2 | 3x16mm2 | 3×16 mm2 + 1×10 mm2 | 4×16 mm2 | 3×16 mm2 + 2×10 mm2 | 4×16 mm2 + 1×10 mm2 | 5×10 mm2 | |
| 1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3×25 mm2 + 1x16mm2 | 4×25 mm2 | 3×25 mm2 + 2x16mm2 | 4×25 mm2 + 1x16mm2 | 5×16 mm2 | |
| 1×35 mm2 | 2×35 mm2 | 3x 35 mm2 | 3×35 mm2 + 1x16mm2 | 4×35 mm2 | 3×35 mm2 + 2x16mm2 | 4×35 mm2 + 1x16mm2 | 5×25 mm2 | |
| 1×50 mm2 | 2×50 mm2 | 3x 50 mm2 | 3×50 mm2 + 1x25mm2 | 4×50 mm2 | 3×50 mm2 + 2x25mm2 | 4×50 mm2 + 1x25mm2 | 5×35 mm2 | |
| 1×70 mm2 | 2×70 mm2 | 3x 70 mm2 | 3×70 mm2 + 1x35mm2 | 4×70 mm2 | 3×70 mm2 + 2x35mm2 | 4×70 mm2 + 1x35mm2 | 5×50 mm2 | |
| 1×95 mm2 | 2×95 mm2 | 3x 95 mm2 | 3×95 mm2 + 1x50mm2 | 4×95 mm2 | 3×95 mm2 + 2x50mm2 | 4×95 mm2 + 1x50mm2 | 5×70 mm2 | |
| 1×120 mm2 | 2×120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4×120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5×95 mm2 | |
| 1×150 mm2 | 2×150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4×150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
| 1×185 mm2 | 2×185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4×185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
| 1×240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4×240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
| 1×300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4×300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
| 1×400 mm2 | ||||||||
| 1×500 mm2 | ||||||||
Other power cables
Cross-linked polyethylene or PVC insulation, PVC or polyethylene outer sheath, STA armored or non-armoured power cables/cables copper core power cables
Type: VV, YJV, VV22, YJV22, VV23, YJV23, NH-VV2 2
Number of cores: single core, 2 cores, 3 cores, 4 cores, 5 cores
Production range: 1.5mm2, 2.5mm2, 4mm2, 6mm, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 204mm2, 3504mm2 ,630mm2
Relevant voltage: 300/300v, 300/500v, 450/750v, 0.6/1kV
Applications
This product is suitable for the transmission and distribution of electricity under AC rated voltage 0.6/1kv , operating frequency 50Hz lines.
Low voltage power cables are used for transmission and distribution of power in 1kV transmission and distribution systems. Widely used in electric power, mining, construction, metallurgy, petrochemical, communications and other fields, completely replace the oil-impregnated paper insulated power cable.
Cross-linked polyethylene insulated power cables Cross-linked polyethylene insulated power cables have many advantages over paper-insulated and PVC-insulated cables. Cross-linked polyethylene cable has the advantages of high electrical strength, mechanical strength, high ageing resistance, environmental stress resistance, chemical corrosion resistance, simple construction, ease of use and high long-term working temperature. It can be laid without descent restrictions.
Advantages of cross-linked polyethylene cables
cross-linked polyethylene cables have a higher long-term operating temperature and a higher current rating. Under the same environmental conditions, cross-linked polyethylene cables can be reduced in size by 1 or 2 steps (normal cross-section) compared to PVC cables. These not only improve the quality and performance of the product, but also reduce the cost of producing the cable. Armoured cables
We are China 5 Core Pe Xlpe Insulated Electrical Power Cable 25 Mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 25 Mm2 Electrical Power Cable, 5 Core Xlpe Power Cable, xlpe insulated cable, Xlpe Insulated Electrical Power CableSimilar Or Related
