5 Ton Cable Winch Puller Electric Engine 220V / 380V / 4KW Cable Pulling Winch Machine

 China 5 Ton Cable Winch Puller Electric Engine 220V / 380V / 4KW Cable Pulling Winch Machine supplier

5 Ton Cable Winch Puller Electric Engine 220V / 380V / 4KW Cable Pulling Winch Machine image

Get a Quote Email to us

Brand Name :Shenhong
Model Number :JJM5D
Certification :ISO
Place of Origin :Jiangsu, China (Mainland)
MOQ :1 set
Price :get latest price
Supply Ability :500 Set/Sets per Month
Delivery Time :10 days after the deposit
Packaging Details :standard export wooden case
Power Source :electric engine
Application :power construction
Usage :hositing;pulling;lifting
Capacity(KN) :50
Speed(m/min) :3-9
weight(kg) :130
Warranty :1 year
dimension(mm) :1000*750*600

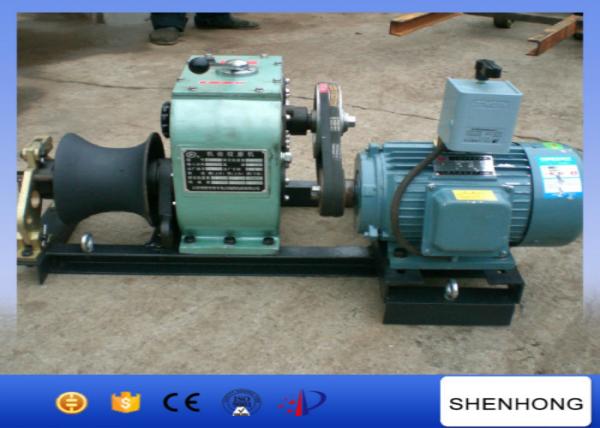

Cable Winch Puller 5 Ton Electric Winch 220V/380V/4KW For Cable Pulling
5 ton Electric winch is used in power transmission and distribution engineering, telephone construction
tower erection, traction cable, line, hoisting tools or heavy objects, the electric winch is driven by a belt,
effectively prevent the damage of overload, there are pros and cons and the speed of file, anti reverse
gear moment to ensure construction safety.
Winch can be modified as per requirement, such as changing curve capstan into straight even
cylindrical shape and coming with steel rope.
1. High Efficiency,Save Labor.
2. Widely Used,pulling,hoisting,lifting and so on.
3. Safe & Reliable,Interlock Brakes System.

Maintenance and safe use

1. Engine use and maintenance, according to the machine instructions.
2. Lifting shall not exceed in line with use.
Lubricating oil surface must be kept within 1/4

3. gearbox, before using the machine outside the bearing should add oil.
4. Automatic burning cars and interlock brakes, should always pay attention to the wear of the friction plate, the automatic braking gear and back tighten loose gap of 0.5 mm, if the gap is greater than 1.5 mm, you must replace the friction plate, or likely to cause accidents.
5. Automatic brake load the gearbox, automatic normal lifting, due to the reverse gear is stuck, there is no "beep beep" sound when the back loose.
6. The bearing support frame is anchored on both sides of the reel anchor point, it can not be used as an anchor point to another location.
7. After the long-distance transport aircraft, before use, must be a detailed examination of the various components fastening screws loose, ministries parts is stagnant leak. Gearbox ZL4 aluminum body with screws on it should not be too tight and unnecessary disassembly, but can not use a hammer.

Quality Control

We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.

Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.

Technical Data

No. Model Pull Force(KN) Speed(m/min) Engine Weight(kg)
10008 JJM5D 50 5

Electric engine


30 9
No Lifting 3

Please tell us the following information in your enquiry:

1. Engine Power ?

2. Pulling Speed(m/min) ?

3. Pulling capacity?

4. Quantity?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
