500KV High Height Lines Cable Suspension Clamp 23.7 – 51mm Conductor Diameter

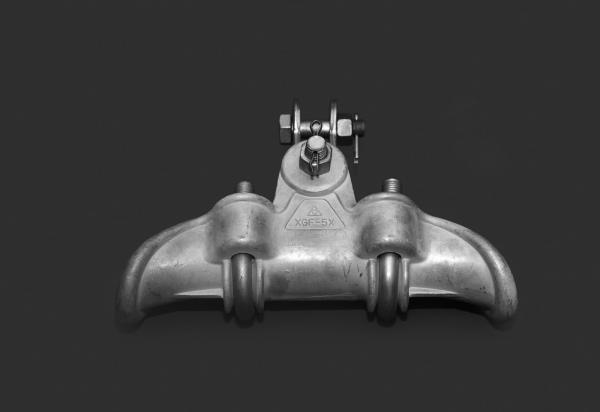

500KV High Height Lines Cable Suspension Clamp 23.7 – 51mm Conductor Diameter image
Brand Name :
GZXYHY
Model Number :
XGF
Certification :
ISO:9001
Place of Origin :
Guangdong, China (Mainland)
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
500000 Set/Sets per Month
Delivery Time :
Within 1 week
Packaging Details :
Stardard exporting package
Material :
Aluminium alloy
Failure load :
60-90kN
Conductor Dia. :
23.7-51mm
Voltage level :
110-1000kV
Type :
Hang-down type
Aluminium Alloy Suspension Clamp for 500 kV High Height Lines
Quick Details
|
Material: |
Aluminium alloy |
|
Model Number: |
XGF |
|
Failure load: |
60-90kN |
|
Conductor Dia. |
23.7-51mm |
|
Voltage level: |
110-1000kV |
| Type: |
Hang-down type |
Descriptions
- Type: Hang-down type
- Power level: 110kV-1000Kv
- Material: the body and keepers are aluminium alloy,cotter pin is stainless steel, the other parts are hot-dip galvanized steel.
- Make according to your drawings
Usage
It is used to fix the conductors in the suspension strings or hang the ground wire in the support of the ground wire.
Specifications
Specification details:
| Type | Conductor Dia.(mm) | Dimensions(mm) | Failure Load(kN) | Fig.No. | Weight(kg) | ||||
| C | M | h | R | L | |||||
| XGF-5X | 23.7-34 |
32 |
16 | 65 | 17 | 300 | 60 | 1 | 3.5 |
| XGF-6 | 35-44 | 48 | 18 | 70 | 23 | 300 | 70 | 2 | 4.5 |
| XGF-9X | 35-44 | 48 | 18 | 70 | 23 | 300 | 90 | 2 | 4.6 |
| XGF-53 | 43.0-51.0 | 56 | 16 | 100 | 26 | 350 | 70 | 2 | 5.6 |
We are China 500KV High Height Lines Cable Suspension Clamp 23.7 – 51mm Conductor Diameter manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
