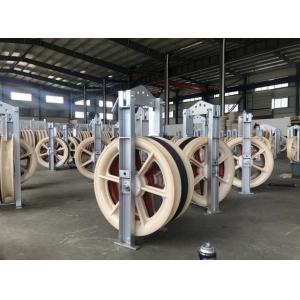

508X75mm 3 Nylon Sheaves Bundled Overhead Conductor Stringing Blocks

 China 508X75mm 3 Nylon Sheaves Bundled Overhead Conductor Stringing Blocks supplier

508X75mm 3 Nylon Sheaves Bundled Overhead Conductor Stringing Blocks image

Get a Quote Email to us

Brand Name :Suntech
Model Number :508mm
Certification :ISO
Place of Origin :Ningbo,China
MOQ :1 PCS
Price :Negotiation
Payment Terms :L/C , T/T, Western Union, MoneyGram
Supply Ability :3000 pcs per month
Delivery Time :15-20 days after Payment
Packaging Details :Exported Wooden Cases
Name :Conductor Stringing Block
Outer diameter :508mm
Inner diameter :408mm
Width of wheels :75mm Or 100mm
Usage :Transmission Line
Application :For condutors

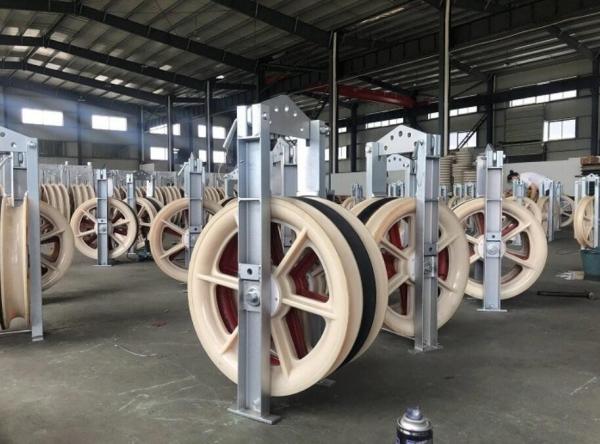

508X75mm 3 Nylon Sheaves Bundled Overhead Conductor Stringing Blocks

The 508MM Overhead Conductor Stringing Blocks (Running out blocks) are used for overhead transmisson line conductor or OPGW stringing.

The sheave of blocks is made in aluminum alloy lined with neoprene or high strength MC Nylon.

Application: It is suitable to string single, two or three, four stranded aluminum and ACSR conductors on tangent structures.

Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove.

The sheave is made in aluminum alloy or high strength nylon. The size 508X75 mm aluminum alloy sheave can be lined with neoprene.

508MM Overhead Transmission Line Cable Stringing Blocks

Item No. Model ACSR Size Range (mm²) Working Load (KN) Weight (kg) Material of Sheave
10101 SHD508 300-400 20 18 Aluminum alloy
10104 SHDN508 300-400 20 16 MC Nylon
10104A SHDN508X100 300-400 20 17 MC Nylon
10102 SHS508 300-400 40 61 Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene
10105 SHSLN508 300-400 40 47
10107 SHSQN508 300-400 40 43 Nylon, optional can be lined with neoprene
10107A SHSQN508X100 400 40 46
10108 SHWQN508 300-400 60 70
10108A SHWQN508X100 300-400 60 76

1. Clevis fitting are optional, please specify when ordering. Customized blocks could be supplied on request.

The data in the model means the outer diameter of sheave X width of sheave (mm).

2. All the sheaves are mounted on ball bearings. The frame of blocks is made in galvanized steel.
