5x25sqmm Flame Retardant LSZH power cable SAW armour XLPE insulation Copper Cable IEC60502-1

 China 5x25sqmm Flame Retardant LSZH power cable SAW armour XLPE insulation Copper Cable IEC60502-1 supplier

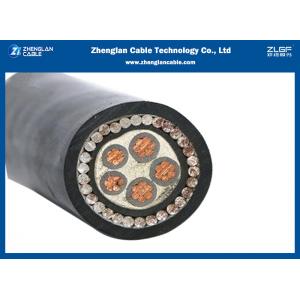

5x25sqmm Flame Retardant LSZH power cable SAW armour XLPE insulation Copper Cable IEC60502-1 image

Get a Quote Email to us

Brand Name :
Zhenglan cable

Model Number :
1kv xlpe insulaed flame retardant LSZH sheathed copper cable 5x25sqmm IEC60502-1

Certification :
ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
1000 meters

Price :
0.5USD-100USD/m

Payment Terms :
L/C, T/T,

Supply Ability :
10000m/day

Delivery Time :
15days

Packaging Details :
Wooden drum, wood and steel drum, as per customer’s request

Material :
CU

Insulation :
XLPE

Armor :
steel wire armor

sheath :
pvc/pe/lzsh

Out Sheath Color :
Black or Customized

Cable Length :
as per requirement

Voltage :
0.6/1kv

Standard :
IEC60502-1

1kv xlpe insulaed flame retardant LSZH sheathed copper cable 5x25sqmm IEC60502-1​

Application:

1kv CU/XLPE/PVC/SWA/PVC power cable 4x25sqmm IEC60502-1 are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Construction:

Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):

1 Core: Red or Black

2 Cores: Red, Black

3 Cores: Red, Yellow, Blue

4 Cores: Red, Yellow, Blue, Black

5 Cores: Red, Yellow, Blue, Black, Green

Above 5 Cores: Black Cores with White numerals

Core identificaation method: color tape

Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths: Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

1kv xlpe insulaed flame retardant LSZH sheathed copper cable 5x25sqmm IEC60502-1 Parameters:

Nominal

Area

Approx

Conductor

Diameter

Nominal

Insulation

thickness

Nominal

bedding

thickness

Nominal

Steel Wire

dia.

Nominal

Sheath

thickness

Approx.

Overall

Diameter

Approx.

Weight

mm² mm mm mm mm mm mm Kg/km
4×1.5 1.6 0.7 1 0.9 1.8 15 415
4×2.5 2 0.7 1 0.9 1.8 17.5 490
4×4 2.6 0.7 1 0.9 1.8 19 600
4×6 3.1 0.7 1 0.9 1.8 20 730
4×10 4 0.7 1 1.25 1.8 23 970
4×16 5 0.7 1 1.6 1.8 26 1520
4×25 6.3 0.9 1 1.6 1.8 29 2010
4×35 7.4 0.9 1 1.6 1.9 31 2560
4×50 8.8 1 1 1.6 2.1 36 3350
4×70 10.6 1.1 1.2 2 2.2 40 4680
4×95 12.4 1.1 1.2 2 2.4 44 5710
4×120 14 1.2 1.4 2.5 2.5 50 7500
4×150 15.5 1.4 1.4 2.5 2.6 55 9010
4×185 17.4 1.6 1.4 2.5 2.8 61 10820
4×240 20.3 1.7 1.6 2.5 3.1 69 13630
4×300 22.7 1.8 1.6 2.5 3.2 75 16820
4×400 25.4 2 1.8 3.15 3.4 83 22230

Nominal

Cross

Approx

Conductor

Diameter

Nominal Insulation thickness

Nominal

bedding

thickness

Nominal

Steel

Wire dia.

Nominal

Sheath

thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm²

(3)

mm

(1)

mm

(3)

mm

(1)

mm

mm mm mm mm² mm
3×16/10 5 4 0.7 0.7 1 1.6 1.8 25.5 1550
3×25/16 6.3 5 0.9 0.7 1 1.6 1.8 27.5 2010
3×35/16 7.4 5 0.9 0.7 1 1.6 1.8 29 2375
3×50/25 8.8 6.3 1 0.9 1 1.6 2 33 3100
3×70/35 10.6 7.4 1.1 0.9 1.2 2 2.1 38 4290
3×95/50 12.4 8.8 1.1 1 1.2 2 2.3 43.5 5540
3×120/70 14 10.6 1.2 1.1 1.2 2 2.4 49 7150
3×150/70 15.5 10.6 1.4 1.1 1.4 2.5 2.5 52 8330
3×185/95 17.4 12.4 1.6 1.1 1.4 2.5 2.7 57.2 10110
3×240/120 20.3 14 1.7 1.2 1.6 2.5 3 64 12740
3×300/150 22.7 15.5 1.8 1.4 1.6 2.5 3 69.8 15430
3×400/185 25.4 17.4 2 1.6 1.6 3.15 3.3 78.6 19990

Images

Test equipment

About zhenglan cable technology co., ltd

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 5000m.

We are China 5x25sqmm Flame Retardant LSZH power cable SAW armour XLPE insulation Copper Cable IEC60502-1 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
