600V G/PG Flexible Rubber Insulated Mining Vfd Drive Cable
600V G/PG Flexible Rubber Insulated Mining Vfd Drive Cable image
600V G/PG Flexible Rubber Insulated Mining Variable Frequency Drive VFD Cable
Application
VFD cable is mainly used for connecting the cable between the variable frequency power supply and the variable frequency motor, as well as the transmission and distribution lines with a rated voltage of 1 KV and below, for transmission of electrical energy. Especially suitable for papermaking, metallurgy, metal processing, mining, railway and food processing industries.
Construction

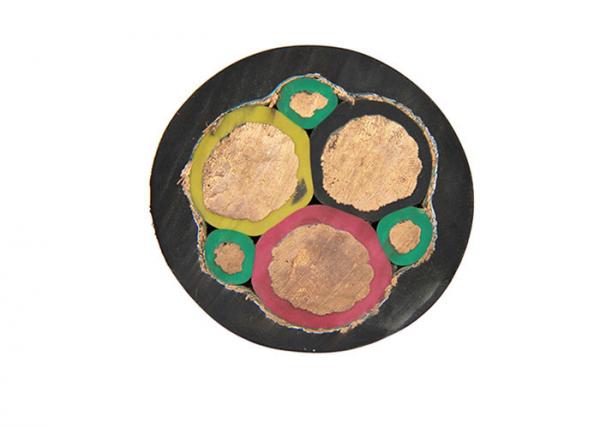

The structure includes three main core insulated and three earth core insulated . Outside includes wrapping layer , copper wire braided shielding layer, outer sheath. 3+3 core structure makes the cable has a strong voltage shock resistance, can withstand the pulse voltage of high frequency and frequent frequency conversion, play a good protection role for the frequency conversion appliance.
Features
1.Rated voltage 0.6/1KV
2. Conductor max. operating temperature is90℃ for long time,max.temperature is 250℃ for a short circuit.
3. Installation temperature not less than 0℃
4. The min. allowable bending radius is not less than 15D
Why is CN CABLE?
Technical parameter
| Cable size | Conductor Dia. | Insulation thickness | Copper tape shield thickness | Outer sheath thickness | Approx. cable dia. | Approx. Cable weight | ||||
| Phase | Earth | Phase | Earth | Phase | Earth | Individual | Overall | |||
| mm2 | mm | mm | mm | mm | mm | mm | kg/km | |||
| 2.5 | 0.5 | 2.01 | 0.8 | 0.7 | 0.5 | — | Min.0.05 | 1.8 | 13.4 | 390.2 |
| 4 | 0.75 | 2.55 | 0.99 | 0.7 | 0.5 | — | Min.0.05 | 1.8 | 14.8 | 484.1 |
| 6 | 1 | 3.12 | 1.14 | 0.7 | 0.6 | — | Min.0.05 | 1.8 | 16.1 | 590.3 |
| 10 | 1.5 | 4.05 | 1.4 | 0.7 | 0.7 | — | Min.0.05 | 1.8 | 18.4 | 793.3 |
| 16 | 2.5 | 5.13 | 1.8 | 0.7 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 21.4 | 1129.5 |
| 25 | 4 | 6 | 2.28 | 0.9 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 24.5 | 1545.9 |
| 35 | 6 | 7 | 2.79 | 0.9 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 26.9 | 1968.5 |
| 50 | 10 | 8.2 | 4.2 | 1 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 30.3 | 2636.6 |
| 70 | 10 | 9.9 | 4.2 | 1.1 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 34.9 | 3382.4 |
| 95 | 16 | 11.6 | 5.3 | 1.1 | 0.7 | Min.0.05 | Min.0.05 | 1.8 | 39 | 4407.8 |
| 120 | 25 | 13 | 6.7 | 1.2 | 0.9 | Min.0.05 | Min.0.05 | 1.8 | 42.9 | 5538 |
| 150 | 35 | 14.4 | 7.9 | 1.4 | 0.9 | Min.0.05 | Min.0.05 | 2.5 | 48.7 | 7015.3 |
| 185 | 35 | 16.2 | 7.9 | 1.6 | 0.9 | Min.0.05 | Min.0.05 | 2.7 | 54.5 | 8332.7 |
| 240 | 50 | 18.6 | 9.5 | 1.7 | 1.1 | Min.0.05 | Min.0.05 | 2.9 | 61.2 | 10685 |
Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum
Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
We are China 600V G/PG Flexible Rubber Insulated Mining Vfd Drive Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
