69kV Electric Utility Pole Suspension Post 60ft – 80ft For Philippines NGCP
69kV Electric Utility Pole Suspension Post 60ft – 80ft For Philippines NGCP image
Brand Name :
FUTAO
Model Number :
69kv
Certification :
ISO 9001 : 2008
Place of Origin :
CHINA
MOQ :
5 pieces
Price :
$111 – $411
Payment Terms :
L/C, T/T
Supply Ability :
1200 pieces every week
Delivery Time :
15 – 30 workdays
Packaging Details :
40HC or OT, wrap by mat or straw mat
Height :
60ft to 80ft
Thickness :
4-10mm
Material :
Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc.
Shape :
Polygonal or Conical
Color :
According to clients’ requirment
Surface Treatment :
Hot Dip Galvanized
Welding :
AWS D 1.1
69kv 60ft 65ft 70ft 75ft 80ft electrical power pole electric utility pole suspension pole for philippines NGCP
Product Description
Our electrical poles are specifically designed for 69kv 60ft 65ft 70ft 75ft 80ft electrical power pole electric utility pole suspension pole for phiippines market NGCP Client We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specific Details
|
Product Name |
69kv 60ft 65ft 70ft 75ft 80ft electrical power pole electric utility pole suspension pole for phiippines market |
|---|---|
|
Type |
Suspension Pole, Tension Pole, Angle Pole, Termination Pole |
|
Height |
2m – 50m |
|
Thickness |
4mm, 5mm ,6mm , 7mm, 8mm, 9mm , 10mm 11mm ,12mm |
|
Shape |
Polygonal or Conical |
|
Surface Treatment |
Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request |
|
Color |
Any, According to clients' request |
|
Ground Mounted |
Anchor Bolt |
|
Voltage |
69kv |
|
Material |
Q235, Q345, Q420, Q460, Gr 50, Gr65 ASTM 572 GR633 , Q460C |
|
Welding |
Welding complies with AWS D1.1 standard CO2 welding or Submerged Arc Auto methods No scarring, craters, spatters, distortions, defects of any kind due to welding errors Unique Internal and External Welding method that allows for a smoother surface Additional welding requirments can be made as per clients' request |
|
Life Expectancy |
More than 25 years depending on various environmental factors |
|
Qualification |
ISO9001-2015, AAA Credit Rating |
|
Wind Resistance |
160 km/h |
|
Earthquake Resistance |
Against earthquake of grade 8 |
SIZE TEST
| Top Diameter (mm): | 252 / 252 / 254 / 254 (AVE = 253) | 248 – 260 | Passed | |||||
| Butt Diameter (mm): | 464 / 464 / 453 / 454 (AVE = 458.75) | 448 – 468 | ||||||
| Wall Thickness (mm): | TS: 4.25 / 4.22 / 4.28 / 4.22 (AVE = 4.24) | 3.86 – 4.36 | ||||||
| BS: 4.15 / 4.12 / 4.18 / 4.2 (AVE = 4.16) | ||||||||
| Galvanized Coating Thickness (micron): | TS: 111, 101, 106, 95, 99, 105, 91, 122, 109, 103, (AVE = 103.75) | => 85 MIN. | ||||||
| BS: 126, 89, 74, 123, 94, 92, 96, 98, 103, 89, (AVE = 99) | ||||||||
| Total Assembly Length: | 21300 | 21286 – 21394 | ||||||
LOAD TEST
| Yield Strength, MPa | 740 | 450 min | Passed | |||||
| Tensile Strength, MPa | 800 | 550 min | ||||||
| Elongation, % | 20 | 15% min | ||||||
| C2. Chemical Test | Measured | Standard | Remarks | |||||
| Carbon (C), % | 0.062 / 0.061 / 0.059 (AVE = 0.061) | 0.23 max | Passed | |||||
| Manganese (Mn), % | 1.39 / 1.38 / 1.4 (AVE = 1.39) | 0.5 – 1.65 | ||||||
| Phosphorus (P), % | 0.014 / 0.013 / 0.014 (AVE = 0.014) | 0.04 max | ||||||
| Sulfur (S), % | 0.0047 / 0.0047 / 0.0047 (AVE = 0.005) | 0.05 max | ||||||
| Silicon (Si), % | 0.152 / 0.148 / 0.151 (AVE = 0.151) | 0.04 – 0.06 / 0.12 – 0.25 | ||||||
| Copper (Cu), % | 0.211 / 0.212 / 0.209 (AVE = 0.211) | 0.20 min | ||||||
| Nickel (Ni), % | 0.66 / 0.52 / 0.6 (AVE = 0.594) | — | ||||||
| Chromium (Cr), % | 0.031 / 0.031 / 0.031 (AVE = 0.031) | — | ||||||
| Niobium (Nb), % | 0.05 / 0.049 / 0.052 (AVE = 0.051) | — | ||||||
| Aluminum (Al), % | 0.036 / 0.036 / 0.036 (AVE = 0.036) | — | ||||||
| Columbium (Co), % | 0.004 / 0.0034 / 0.0034 (AVE = 0.004) | — | ||||||
| Vanadium (V), % | 0.0034 / 0.0029 / 0.0035 (AVE = 0.004) | — | ||||||
| Titanium (Ti), % | 0.023 / 0.023 / 0.023 (AVE = 0.023) | — | ||||||
Additional Details
Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES
Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing Process: Loading Tests may be conducted on factory site if required
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing

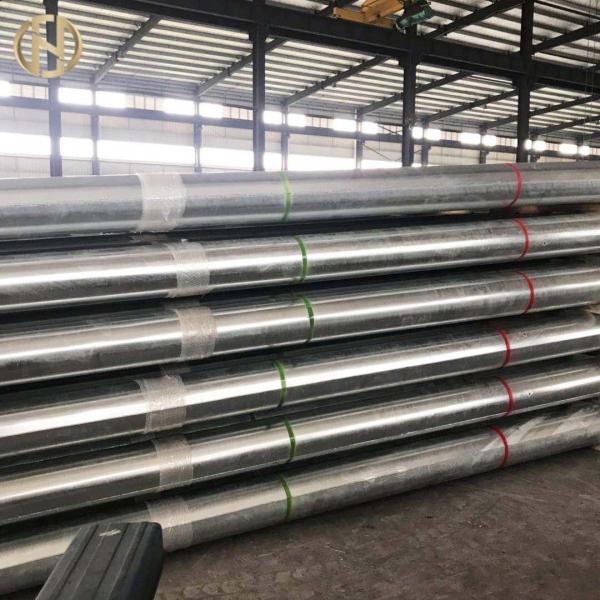

Packaging & Shipping

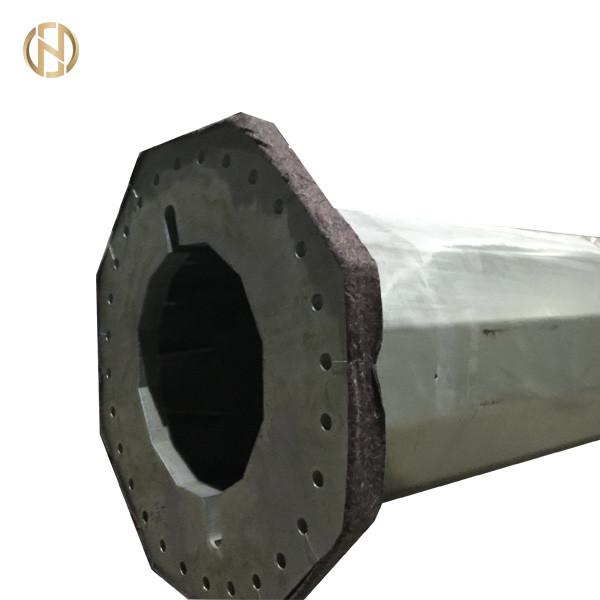

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
We are China 69kV Electric Utility Pole Suspension Post 60ft – 80ft For Philippines NGCP manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
