75ohm Flexible Coaxial Cable

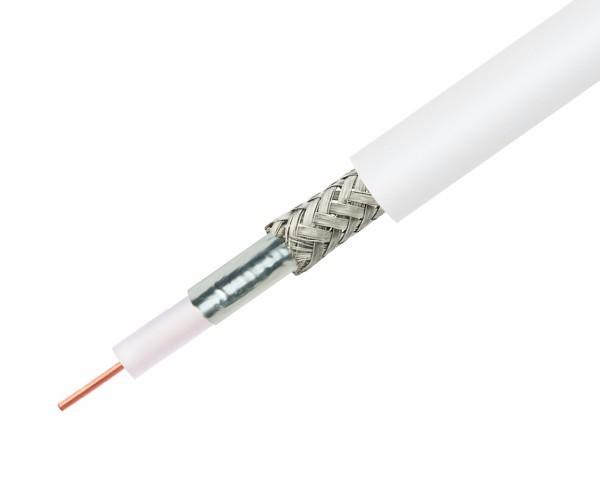

75ohm Flexible Coaxial Cable image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Product name :
Flexible Coaxial cable
Conductor material :
Oxygen free copper
Insulation :
Foam PE
Rated Voltage :
-10ºC~70ºC
Resistance :
75ohm
Rated voltage :
30V
75ohm Flexible Coaxial Cable
Production Description:
Description:
RG59 coaxial cable;
Meets GB/T14864-1993 or JIS C 3501;CE, RoHS compliant;
Impedance: 75Ω
Insulation resistance: ≥5000MΩ/km
Operating temperature: -20~70°C
Usage: mainly uses for Closed Circuit Television Monitoring System (CCTV) application, public antenna, video/radio, as well as uses for security monitoring system & television engineering.
Structure details:
Conductor Material: solid bare copper
(Other options: stranded CCS, CU, BC)
Conductor Diameter: 0.8mm, 14/0.15mm, 28/0.12mm
Insulation: 3.67mm FPE/SPE
Shield 1: aluminum foil 100% coverage
Shield 2: braid (material & coverage optional)
Jacket: PVC, LSZH
Overall diameter: 6.1mm
Color: black, white.
|
|
|
STANDARD SHIELD
|
|
CONDUCTOR
|
MATERIAL
|
BC/CCS
|
|
Nom.Dia.
|
20AWG
|
|
|
DIELECTRIC
|
MATERIAL
|
Foam PE
|
|
Nom.Dia.
|
3.66mm
|
|
|
SHIELD
|
MATERIAL
|
Al foil+Albraiding
|
|
COVERAGE
|
40%-95%
|
|
|
JACKET
|
MATERIAL
|
PVC/PE
|
|
Nom.Thick.
|
0.80mm
|
|
|
Nom.Dia.
|
6.10mm
|
BASIC CHARACTERISTICS
|
Nominal Impedance(Ω)
|
75
|
||
|
Nominal Velocity of Propagation(%)
|
85
|
||
|
Nominal Capacitance (pF/m)
|
50
|
||
|
Sparker Test (VAC)
|
4000
|
||
|
SRL(dB)
|
20
|
20
|
|
|
Attenuation
[@68°F(20℃)] |
Frequency(MHz)
|
Maximum(dB/100ft)
|
Maximum(dB/100m)
|
|
5
|
0.86
|
2.82
|
|
|
55
|
2.05
|
6.73
|
|
|
187
|
3.60
|
11.81
|
|
|
300
|
4.45
|
14.60
|
|
|
450
|
5.40
|
17.72
|
|
|
600
|
6.20
|
20.34
|
|
|
750
|
6.97
|
22.87
|
|
|
865
|
7.52
|
24.67
|
|
|
1000
|
8.12
|
26.64
|
|
|
1200
|
8.97
|
29.40
|
|
|
1450
|
9.88
|
32.41
|
|
|
1800
|
11.81
|
38.72
|
|
|
2200
|
13.05
|
42.78
|
|
5. Product Image:
We are China 75ohm Flexible Coaxial Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 75ohm flexible coaxial cable, 75ohm RF Coaxial Cable, Coaxial Power Cables, RG59 flexible coaxial cableSimilar Or Related
