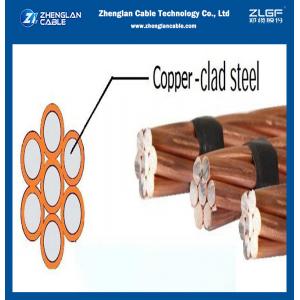

7#8AWG Copper Clad Steel Wire For Electrical Conductors Purposes ASTM B228
7#8AWG Copper Clad Steel Wire For Electrical Conductors Purposes ASTM B228 image
Application:
Copper Clad Steel Stranded is used in Ground wire for electrical power systems, telephone and CATV drop wire, tracer wire, and catenary wire for electrified railroads.
Construction:
CCS wire is formed through electroplating method(taking steel wire as the core and depositing the copper layer evenly on the surface of the steel core) and cladding method (Cladding planished copper stripe concentrically on the outer surface of the steel core).
CCS wire can be divided into six types by conductivity, 15%CCS,18%CCS,21%CCS, 25%CCS, 30%CCS,40%CCS,and two mechanical status: Annealed (A) and Hard drawn(H).
Advantage:
- Copper Clad Steel Wire pure electrolytic copper cable conductors for a variety of applications
- Stranded grounded conductor cut into standard lengths for easy field installation
- Optimized sizes to the most efficient electrical conductivity
- Good conductivity, and long use life.
Standard:
ASTM, BS, DIN, JIS,etc
Conductivity:
21%IACS-45%IACS
Technical Parameters:
| Parameter | Details |
|---|---|
| Standard | ASTM-B228 |
| No./size of strands | 7#8 |
| Structure No./mm | 7/3.26 |
| Cross-section mm2 | 58.56 |
| Rated strength kN | Grade 40 HS — 46.6 |
| DC Resistance Ω/km | 0.759 |
| Approx. weight kg/km | 487.07 |
| Electrical conductivity | 40% |
| Min. Break Load kgf | 1438 |
| Grounding systems |
Yes |
Images:
Packing and Shipping:
- Wooden drum
- Iron frame wooden drum
- Iron drum
Copper Clad Steel Stranded can be shipped via trucks, planes or ships depending on the customer's needs and the quantity of the order.
About Zhenglan Cable Technology Co., Ltd
Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.
FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 5000m.
