8sqmm 10sqmm Aluminum Conductor Cable XLPE/PE Insulated Nylon Sheath Power Cables

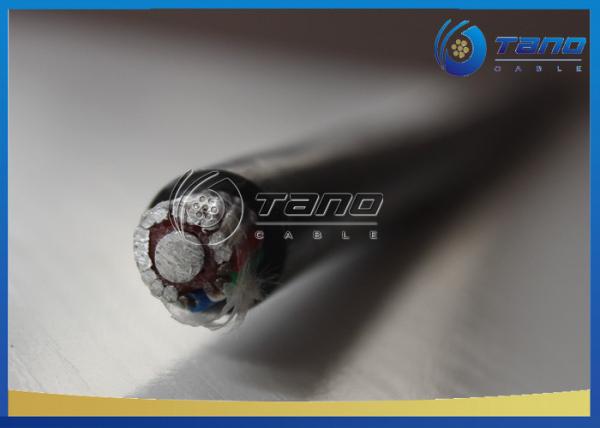

8sqmm 10sqmm Aluminum Conductor Cable XLPE/PE Insulated Nylon Sheath Power Cables image
Brand Name :
TANO CABLE
Model Number :
Concentric Cable
Certification :
ISO
Place of Origin :
CHINA
MOQ :
5000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000Km Per Month
Delivery Time :
7-20 Days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Key Words :
Concentric Cable
Core :
2 3 4
Conductor Type :
Solid or Stranded
Insulated :
XLPE PVC
Rated voltage :
5kv 15KV 25kv 35KV
Product name :
Medium-Voltage cable
8sqmm 10sqmm concentric cable aluminum conductor XLPE/PE insulated nylon sheath power cables
1. SCOPE
This specification is for PVC insulated single phase concentric cables with circular stranded Aluminum conductors for operation up to and including 1000 Volts between phases and 600 Volts to earth. The cable shall have a central phase conductor insulated with red PVC and concentric layer comprising bare aluminum wires (combined neutral-earth conductor) and out sheath in black PVC.
2. REFERENCES
The following standard contains provisions that, through reference in this text
constitute provisions of this specification. Unless otherwise stated, the latest editions
(including amendments) apply.
ISO 9001: Quality Management System-Requirements
ISO/IEC 17025: General requirements for the competence of testing and calibration laboratories.
KS 04-1022:- Kenya Standard Specification for 600/1000V PVC-insulated single-phase concentric cables with copper or aluminum conductors for electricity supply.
SPECIFICATIONS
TRXLPEMLP insulated URD cables meets or exceeds all applicable requirements of standards, and guaranteed all cables manufactured and tested under
– ANSIIICEA S94-649
– AEIC CS-8
– ASTM B-3, ASTM B-8, ASTM B-230 & ASTM B-231
CONSTRUCTION
aluminium or copper, stranded class B compressed stranding
Conductor ShieldExtruded semi-conducting compound
Insulation TRXLP (TreeRetardant XLPE) or XLPE
Insulation Shield Extruded semi-conducting compound
Concentric Neutral Uncoated copper concentric neutral wires (coated copper optional)
Encapsulated Jacket LLDPE embedded jacket with extruded red stripes.
PVC or Semi-conducting jacket are available upon request
MAXIMUM CONDUCTOR TEMPERATURE
Normal continuous at 90 ºC, Overload at 130 ºC and Short circuit at 250 ºC
FEATURES & BENEFITS, OPTIONS
– Triple extruded construction dry curing process guarantees
– TR XLPE insulation offers proven superior life span than conventional XLPE cables
– Triplex type is optional, it brings you saving installation cost
– Strand-filled conductor & Water-blocking jacket is available upon request
Technical date:
| Size | Phase Conductor | XLPE Insulation | Neutral Conductor | XLPE Sheath | |||||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | No./mm | / | / | / | ||||||
| 2×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 25/0.65 | 7.27 | 1.14 | 9.84 | 202 | 97 | 101 |
| 2×10 | 7/0.98 | 2.94 | 1.14 | 5.22 | 25/0.52 | 6.26 | 1.14 | 8.83 | 141 | 74 | 77 |
We are China 8sqmm 10sqmm Aluminum Conductor Cable XLPE/PE Insulated Nylon Sheath Power Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: aluminum conductor cable, Concentric Cable, concentric neutral cableSimilar Or Related
-
