95/15mm2 Aluminium Conductor Steel Reinforced Din 48204 Standard

 China 95/15mm2 Aluminium Conductor Steel Reinforced Din 48204 Standard supplier

95/15mm2 Aluminium Conductor Steel Reinforced Din 48204 Standard image

Get a Quote Email to us

Brand Name :
sanwu

Model Number :
ACSR

Certification :
ISO,CCC

Place of Origin :
HENAN

MOQ :
1000M

Price :
USD 0.1-0.5

Payment Terms :
L/C, T/T

Supply Ability :
200 tons per day

Delivery Time :
1-15days

Packaging Details :
wooden drums or depend on customers request

conductor :
aluminium

Core :
Steel

Color :
Silver

Insulation :
Bare

ACSR Cable 95/15mm2 Aluminum Conductor Steel Reinforced DIN 48204 Standard

Bare aluminum conductors, especially in the form of Aluminum Conductors Steel Reinforced(ACSR), have been widely used for overhead transmission lines as the most cost-effective and dependable product.

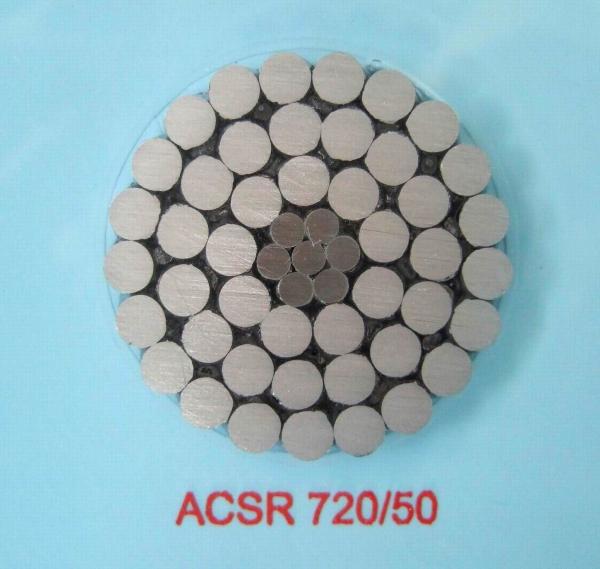

As the name implies, ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn EC grade aluminum wires over a high strength coated steel core. The core may be single wire or stranded, depending on the size.

Because of the numerous stranding combinations of aluminum and steel wires that may be used, it is possible to vary the portions of aluminum and steel so as to obtain the most suitable relation between current carrying capacity and mechanical strength for each application.

Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.

Product Name Aluminum Conductor Alloy Reinforced (ACAR)
Conductor Aluminum
Construction Aluminum Stranded & Aluminum Alloy Reinforce
Colors Assorted upon request
Voltage 600-1000V, 1KV-35KV
Application Used as bare overhead conductor for power distribution lines
Standards GB/T 1179, IEC 60889, IEC 61089,BS,DIN and ICEA upon request

1. Applications:

ACAR is used as bare cable for overhead transmission and distribution lines and also as bus-bar in substations where is highly suitable considering the mechanical and electrical characteristics.

As comparison with ACSR of same weight, ACAR can offers higher mechanical strength.

2. Features :

Aluminum Conductor Alloy Reinforced (ACAR)

cable is an excellent conductor choice where current

carrying capacity, higher strength and a lower conductor

weight are critical to the line design.

3. Construction:

Wires of Aluminium 1350-H19 is concentrically stranded on Aluminium Alloy 6201 core. The number of wires of each one depends on the cable design.

In some cable constructions the wires of Aluminium Alloy 6201 can be distributed in layers throughout the Aluminium 1350-H19.

4. Producing Process:

5.Our Products:

6.Packaging & Delivery:

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

We are China 95/15mm2 Aluminium Conductor Steel Reinforced Din 48204 Standard manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
