AAAC 1120 Chromium Aluminium Bare Conductor Simple Structure Good Conductivity
AAAC 1120 Chromium Aluminium Bare Conductor Simple Structure Good Conductivity image
Brand Name :
Tano Cable
Model Number :
AAAC
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000km per month
Delivery Time :
5-20 working days
Packaging Details :
by coil, carton, plastic bag, all wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Description :
AAAC
Conductor :
All aluminum alloy
Standard :
AS 1531
Application :
overhead
Jacket :
without
Voltage :
66kV
Tano Cable Aluminium Alloy Cable AAAC 1120 Chromium Bare Conductor AS 1531 Standard
Description of AAAC conductor
Factory Price Great Quality Overhead Cable AS 1531 Standard AAAC Conductor is our strong item. AAC, AAAC, ACSR, ACAR, ACSR conductors are the type of high-capacity, high-strength stranded conductor typically used in overhead power lines.The outer strands are high-purity aluminium, chosen for its good conductivity, low weight and low cost. Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support.
Standard of the alloy conductor
AS 1531
Technical Specification of AAAC
| Type | Number / Dia. of Wire | Approx. Overall Diameter | Approx. Weight | Calculated Breaking Load | DC Resistance at 20℃ Max. | ||
| No. / mm | mm | kg/km | kN | Ohm/km | |||
| Chlorine | 7 | / | 2.50 | 7.50 | 94 | 8.2 | 0.864 |
| Chromium | 7 | / | 2.75 | 8.25 | 114 | 9.9 | 0.713 |
| Fluorine | 7 | / | 3.00 | 9.00 | 135 | 11.8 | 0.599 |
| Helium | 7 | / | 3.75 | 11.25 | 211 | 17.6 | 0.383 |
| Hydrogen | 7 | / | 4.50 | 13.50 | 304 | 24.3 | 0.266 |
| Iodine | 7 | / | 4.75 | 14.25 | 339 | 27.1 | 0.239 |
| Krypton | 19 | / | 3.25 | 16.25 | 433 | 37.4 | 0.189 |
| Lutetium | 19 | / | 3.50 | 17.50 | 502 | 41.7 | 0.163 |
| Neon | 19 | / | 3.75 | 18.75 | 577 | 47.8 | 0.142 |
| Nitrogen | 37 | / | 3.00 | 21.00 | 720 | 62.2 | 0.114 |
| Nobelium | 37 | / | 3.25 | 22.75 | 845 | 72.8 | 0.0973 |
| Oxygen | 19 | / | 4.75 | 23.75 | 925 | 73.6 | 0.0884 |
| Phosphorus | 37 | / | 3.75 | 26.25 | 1125 | 93.1 | 0.0731 |
| Selenium | 61 | / | 3.25 | 29.25 | 1397 | 114.0 | 0.0592 |
| Silicon | 61 | / | 3.50 | 31.50 | 1620 | 127.0 | 0.0511 |
| Sulfur | 61 | / | 3.75 | 33.75 | 1859 | 145.0 | 0.0444 |
Advantages
1. 100% inspection of raw materials entering the market.
2. Self-inspection of workers and sampling inspection of quality inspection departments of each process in the production process.
3. Final inspection of finished products.
4. Regular maintenance and inspection of machines and equipment
5. Regular validation of test equipment.
6. Workers learn and improve regularly.
FAQ of cable conductor
Q: Are you trading company or manufacturer ?
A: We are manufacturer with more than 25 years.
Q: How long is your delivery time?
A: Generally it is 5-10 working days if the goods are in stock. Or 15-20 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
We are China AAAC 1120 Chromium Aluminium Bare Conductor Simple Structure Good Conductivity manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: aaac conductor, all aluminium alloy conductor, all aluminum alloy conductorSimilar Or Related
-

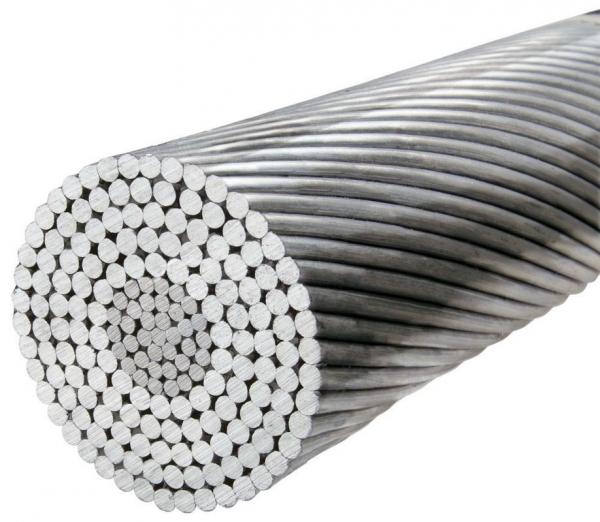

Round Wire Bare Conductor AAAC 6201-T81 For Power Transmission Line Bare Overhead
-

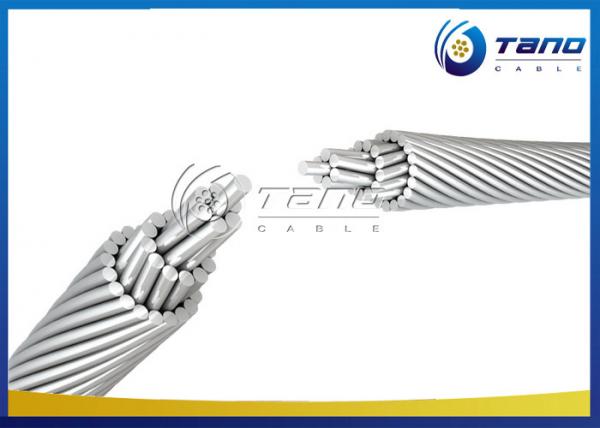

Circular Stranded All Aluminium Alloy Conductor 66kV For Overhead Power Transmisstion
-

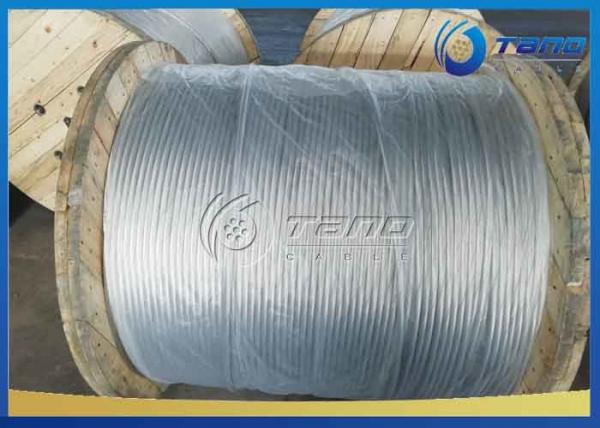

6201 Aluminum Alloy Bare Conductor Wire Cable AAAC ASTMB399 For Power Transmission
-
