AAC All Aluminum Conductor , All Al Conductor 95mm2 120mm2

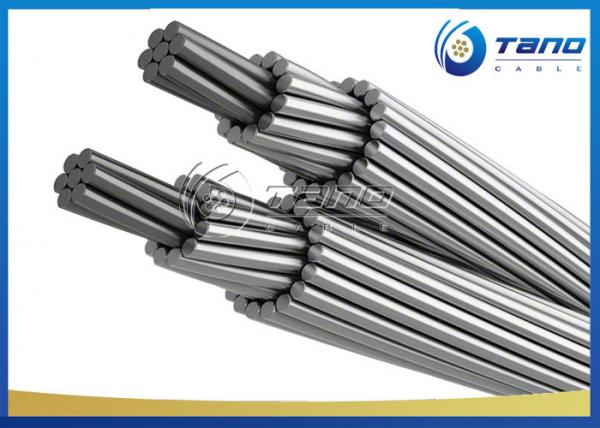

AAC All Aluminum Conductor , All Al Conductor 95mm2 120mm2 image
Brand Name :
TANO CABLE
Model Number :
AAC
Certification :
CCC ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000Kilometers per month
Delivery Time :
7-20 working days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Product name :
AAC
Certificate :
ISO
Conductor :
Aluminum
Standard :
DIN48201 – 5
Packing :
Wooden drum
Insulation :
Without
TANO CABLE DIN48201 standard all aluminum conductor 95mm2 120mm2 AAC
Application of AAC 95mm2
The aluminum alloy cables are used normally in overhead lines.
Standard of AAC 95mm2
Basic design to DIN48201 – 5
Description of AAC 95mm2
This bare concentric-lay stranded conductor is constructed with a straight round central wire surrounded by one
or more layers of helically wires.
Parameters of AAC 95mm2
DIN48201 – 5
| DIN 48201-5 | ||||||
| Area | No./Nominal diameter of wires |
Approximate Overal Diameter |
Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
|
| Nominal | Actual | |||||
| mm 2 | mm 2 | No./mm | mm | kg/km | KN | ohm/km |
| 16.0 | 15.9 | 7/1.70 | 5.10 | 43.0 | 2.8 | 1.8022 |
| 25.0 | 24.3 | 7/2.10 | 6.30 | 66.0 | 4.2 | 1.1810 |
| 35.0 | 34.4 | 7/2.50 | 7.50 | 94.0 | 5.8 | 0.8333 |
| 50.0 | 49.5 | 7/3.00 | 9.00 | 135.0 | 7.9 | 0.5787 |
| 50.0 | 48.4 | 19/1.80 | 9.00 | 133.0 | 8.5 | 0.5951 |
| 70.0 | 65.8 | 19/2.10 | 10.50 | 181.0 | 11.3 | 0.4372 |
| 95.0 | 93.3 | 19/2.50 | 12.50 | 256.0 | 15.7 | 0.3085 |
| 120.0 | 117.0 | 19/2.80 | 14.00 | 322.0 | 18.8 | 0.2459 |
| 150.0 | 147.1 | 37/2.25 | 15.80 | 406.0 | 25.3 | 0.1960 |
| 185.0 | 181.6 | 37/2.50 | 17.50 | 500.0 | 30.5 | 0.1588 |
| 240.0 | 242.5 | 61/2.25 | 20.30 | 670.0 | 39.5 | 0.1191 |
| 300.0 | 299.4 | 61/2.50 | 22.50 | 827.0 | 47.7 | 0.0965 |
| 400.0 | 400.1 | 61/2.89 | 26.00 | 1104.0 | 60.9 | 0.0722 |
| 500.0 | 499.8 | 61/3.23 | 29.10 | 1379.0 | 74.7 | 0.0578 |
| 625.0 | 626.2 | 91/2.96 | 32.60 | 1732.0 | 95.3 | 0.0462 |
| 800.0 | 802.1 | 91/3.35 | 36.90 | 2218.0 | 118.4 | 0.0360 |
| 1000.0 | 999.7 | 91/3.74 | 41.10 | 2767.0 | 145.8 | 0.0289 |
Construction of AAC 95mm2
Aluminum 1350 wires, concentrically stranded.
FAQ of AAC 95mm2
1. Can you provide Type Test Report?
Surely, we will give 100% support according to your instruction.
2. Can we represent your TANO CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
10. What is price term you can provide?
FOB, CFR, CIF or as your favorite
3. Which payment term do you accept?
A: The payment term varies with different price level and total amount of each contract.
The following are most common terms:
a. 30% T/T down payment, the balance before delivery.
b. 100% L/C at sight.
c. 30% T/T down payment, the balance against 100% L/C at sight.
d. 30% T/T down payment, 40% before delivery, the balance against the copy of B/L.
e. 30% T/T down payment, the balance against the copy of B/L.
f. 100% down payment.
We are China AAC All Aluminum Conductor , All Al Conductor 95mm2 120mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
