ABC Aerial Aluminium Overhead Cables NFC33-209 ACSR Conductor Cable

 China ABC Aerial Aluminium Overhead Cables NFC33-209 ACSR Conductor Cable supplier

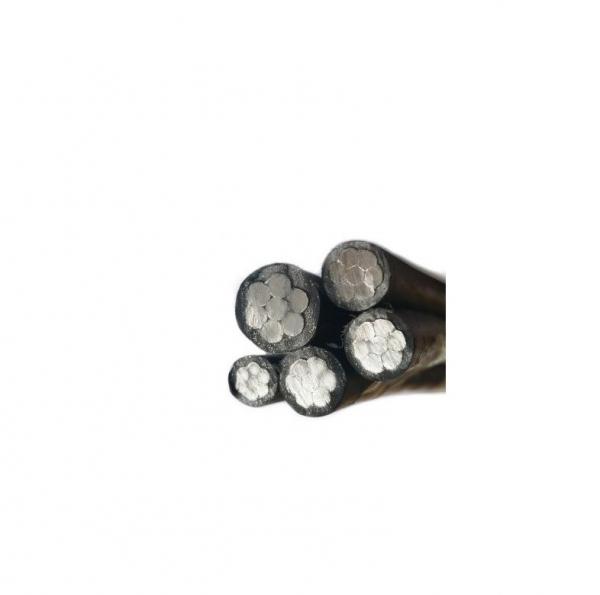

ABC Aerial Aluminium Overhead Cables NFC33-209 ACSR Conductor Cable image

Get a Quote Email to us

Brand Name :
Nuoxing

Model Number :
ABC

Place of Origin :
Hebei, China

MOQ :
100 Meters

Price :
$1.00 – $100.00/Meters

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
10000 Kilometer/Kilometers per Month

Delivery Time :
10-20 days

Packaging Details :
Standard export packing with wooden drum or steel wooden drum

Insulation :
XLPE

Type :
Low Votage

Application :
Construction

Jacket :
N/A

Cable Length :
As Per Requirement

Color :
Customizable

Referece Standard :
IEC60502-2

Product Name :
ABC Aerial Aluminium Overhead Cables

0.6/1KV NFC 33-209 ACSR Conductor ABC aerial Aluminium Overhead Cables

Application:

Aluminium overhead cables are widely used in overhead transmission lines, urban streets and green spaces. The aluminum conductor is 1350-H19 aluminum, 6201-T81 aluminum alloy or ACSR conductor, which is concentrically stranded and covered with polyethylene, high-density polyethylene (HDPE) or cross-linked polyethylene (XLPE) to resist the influence of the weather.

Construction:

Phase conductor: aluminum stranded(AAC)
Neutral conductor: aluminum stranded(AAC), aluminum alloy stranded(AAAC), Aluminum conductor steel reinforced(ACSR)
Insulation: PVC, XLPE, PE or LDPE

Technical data:

The maximum temperature of the conductor: under normal (90°C), emergency (130°C) or short-circuit conditions for no more than 5 seconds (250°C).

Minimum ambient temperature: When the ambient temperature is lower than 0℃, the cable needs to be preheated

Minimum bending radius: single-core cable 20 (d + D) ± 5%

Multi-core cable 15(d+D)±5%

Product parameter:

Product name Aluminium Overhead Cables
Certifications ISO9001/ISO14001 /OHSAS18001/CCC
Standard GB, IEC, BS, ASTM
Rated voltage 0.6/1KV
Test voltage 4 KV
Phase Conductor Stranded Aluminum Wires
Insulation Cross-linked polyethylene (XLPE)
Neutral AAC AAAC ASCR
Laying temperature min. -20
Operating temperature -30 to +80
OEM Available

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.

We are China ABC Aerial Aluminium Overhead Cables NFC33-209 ACSR Conductor Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
