ACSR 450MM2 Aluminum Power Cable Conductor For Overhead Transmission Line

 China ACSR 450MM2 Aluminum Power Cable Conductor For Overhead Transmission Line supplier

ACSR 450MM2 Aluminum Power Cable Conductor For Overhead Transmission Line image

Get a Quote Email to us

Brand Name :
Zhenzhou Zhenglan Cable

Model Number :
ACSR Bare Conductor 450MM2 CAMEL

Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
Negotiable

Price :
Negotiable

Payment Terms :
T/T, L/C, Western Union

Delivery Time :
10 days

Packaging Details :
Wooden drum, wood and steel drum,as customer’s request

Material :
aluminum and steel

Insulation Material :
None

Cross sectional area :
AL: 475.20sq.mm ; ST: 61.60sq.mm

Cable Drum Length :
Customized

characted :
Bare Conductor

Total Area :
536.80sq.mm

Jacket :
none

Aluminium/No. of wires :
54/3.35

Steel /No. of wires :
7/3.35

BS215-2 ACSR 450MM2 CAMEL Aluminum Conductor Steel Reinforced for Overhead Power Transmission Line

Application

ACSR conductors have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Description

  1. Concentric stranded zinc coated steel core
  2. Concentric-lay-stranded H19 1350 aluminium conductor

STANDARD

Basic design to IEC, ASTM, BS, DIN, JIS Standards.

CONSTRUCTION

ACSR is a concentrically stranded conductor composed of one or more layers of hard-drawn 1350H19 aluminum wire stranded with a high strength coated steel core. The core maybe single wire or stranded depending on the size.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

TECHNICAL DATA

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

Specification:

CODE AREA STRANDING O.D. WEIGHT STRENGTH RESISTANCE

AT 20℃

Nominal

Al..

Al. St. Total Al. St Al. St. Total
mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km kN Ω/km
Camel 450 475.20 61.60 536.80 54/3.35 7/3.35 30.15 1314 483 1797 145.70 0.06073

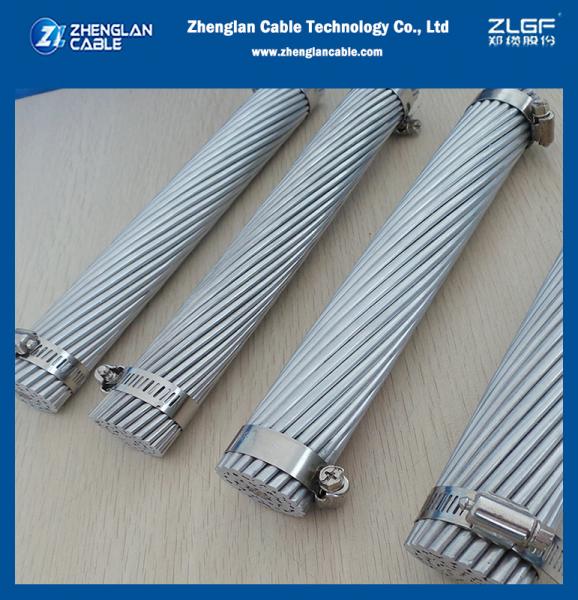

Product show:

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;

We offer a Wide range of high quality Cables & Conductors which are manufactured, designed and tested according to International, British and American standards.

We are China ACSR 450MM2 Aluminum Power Cable Conductor For Overhead Transmission Line manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
