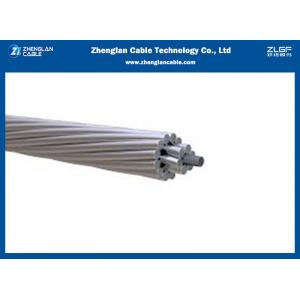

ACSR Conductor Overhead For Different Voltage Levels Of Power Transmission image

Get a Quote Email to us

Product Description

ACSR conductor overhead(Also named Aluminum Conductor Steel Reinforced bare overhead,ACSR aerial conductor,Aluminum Conductor Steel Reinforced ACSR cable, ACSR Bare Conductor)consists of one or more concentric layers of aluminum and steel wire, with one or more solid steel strand in the center and one or more outer layer of aluminum wire. ACSR conductor are popular conductors for power transmission lines under different voltage levels.

Compared to other bare conductor, such as All Aluminum Conductors (AAC), ACSR conductor overhead has more of strength and durability. ACSR bare overhead conductor has the advantage of economy ,dependability, and strength to weight ratio. Aluminum's light weight and high conductivity combined with the strength of the steel core gives it higher tension, less drooping and longer span than any alternative.

ACSR conductor overhead is mainly used for medium and high voltage overhead transmission lines of 500kV and above. ACSR bare overhead conductors are suitable for all practical spans on wooden poles, transmission towers and other structures.

Conductor Construction

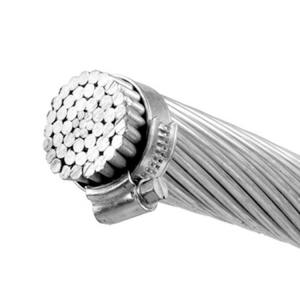

ACSR conductor consists of one or more concentric layers of aluminium and steel wire, having a solid stranded steel wire at the centre and the peripheral layer of aluminium wires.
1350 H-19 Aluminum Conductor, Galvanized Class A Steel Reinforced. Stranding Class AA

Product Parameters

Standard Conductor size Strands Nos
ASTMB232 6AWG~2312KCM 7~95
NFC 34-120 37.3mm2~865mm2 12~85
IEC 61089 16mm2~1250mm2 7~91
DIN48204 16mm2~1045mm2 7~79
CSA C49 8AWG~1590KCM 7~76
GB/T 1179 10mm2~800mm2 7~55
BS 215 10mm2~500mm2 7~61

Packaging & Shipping

Packing :wooden drum(fumigation),steel drum,steel wooden drum or according the customer's requirement
Shipping: Truck or train transportation or other available as required.


Q:Are you a manufacturer or trading company?
A:we are manufacturer with more than 15 years history.
Q:Can you do the design for us?
A:yes,we can offer customize service.
Q:How can I get a sample to check your quality?
A:After confirmed the exactly model, we can send to you by courier.
Q:Is the sample free,and How long can I expect to get the sample?
A:the sample is free. you only needs to afford the express fees. Usually, the delivery time will within one week if we have in stock.
Q:Packaging & Shipping:
A: wooden drums ,steel drums,steel-wooden drums or according to customers' requirement. Usually loaded in 20" or 40" container,shipping by sea or Railway.
Q:What about the lead time for mass production?
A:The delivery time will within 30-60 days for mass production.
Q:What is your terms of delivery?
A:EXW, FOB, CFR, CIF and so on.
Q:What kind of files do you accept ?
A:Original, copy and electronic version with seal and signature.
Q:What's your payment term?
A:T/T, L/C or negotiation-able

We are China ACSR Conductor Overhead For Different Voltage Levels Of Power Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
