ACSR Duck Aluminum Conductor Steel Reinforced 605MCM Overhead Bare Conductor

 China ACSR Duck Aluminum Conductor Steel Reinforced 605MCM Overhead Bare Conductor supplier

ACSR Duck Aluminum Conductor Steel Reinforced 605MCM Overhead Bare Conductor image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :

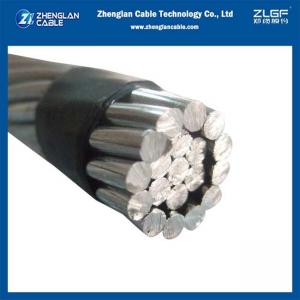

Aluminum conductor steel reinforced ACSR Duck 605MCM Overhead bare conductor

Certification :
ISO 9001, ISO14001, ISO45001

Place of Origin :
HN, CN

MOQ :
3ton

Price :
0.1-100USD/m

Payment Terms :
L/C, T/T,

Supply Ability :
15ton/day

Delivery Time :
depends on quantity

Packaging Details :
Wooden drum, wood iron drum

Material :
aluminum, ganvalnized steel wire

Insulation :
None

Cable Drum Length :
Normal or Customized

characted :
Bare Conductor

Port :
Tianjin or Qingdao port

Standard :
IEC61089, ASTM B232/232M

Aluminum conductor steel reinforced ACSR Duck 605MCM Overhead bare conductor ​

Application

Aluminum conductor steel reinforced ACSR Duck 605MCM Overhead bare conductor are commonly for river crossings, overhead earth wires, and installations involving extra-long spans use as bare overhead transmission cable and as primary and secondary distribution cable. They have a long service record because of its economy, dependability, and strength to weight ratio.

Bare Conductor Electrical Cable STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Bare Conductor Electrical Cable CONSTRUCTION

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The core wire or wires are made of galvanized steel and the external layer or layers. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

ELECTRICAL PROPERTIES

density@20ºC Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm
Temperature Coefficient@20°C Aluminium: 0.00403 (°C)
resistivity@20°C Aluminium: Should not exceed 0.028264

linear Expansivity

Aluminium: 23 x10 (°C)
Galvanised Steel: 11.5 x10 (1/°C)

SERVICE CONDITIONS

Ambient Temperature -5°C – 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 – 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%

TECHNICAL DATA

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

Aluminum conductor steel reinforced ACSR Duck 605MCM Overhead bare conductor ​ Parameters

AMERICAN STANDARD ASTM B232-B232 M1999
Code Word Stranding Stranding Nominal Overall Diameter Mass Rated Strength
Aluminium Wires Steel Wires
Number Diameter Number Diameter
mm mm mm kg/Km kN
Raven 6/1 6 3.37 1 3.37 10.11 216.08 19.48
Minorca 12/7 12 2.44 7 2.44 12.22 411.18 50.26
Quail 6/1 6 3.78 1 3.78 11.35 272.04 23.58
Leghorn 12/7 12 2.69 7 2.69 13.46 499.28 60.5
Guinea 12/7 12 2.92 1 2.92 14.63 589.76 71.17
Pigeon 6/1 6 4.25 1 4.25 12.75 343.02 29.45
Dotterel 12/7 12 3.08 7 3.08 15.42 656.13 76.95
Dorking 12/7 12 3.2 7 3.2 16.03 707.92 83.18
Brahma 16/19 16 2.86 19 2.48 18.14 1003.91 126.33
Cochin 12/7 12 3.37 7 3.37 16.87 783.96 92.08
Penguin 6/1 6 4.77 1 4.77 14.3 432.76 37.14
Partidge 26/7 26 2.57 7 2 16.31 546.01 50.26
Waxwing 18/1 18 3.09 1 3.09 15.47 430.23 30.69
Ostrich 26/7 26 2.73 7 2.12 17.27 613.42 56.49
Oriole 30/7 30 2.69 1 2.69 18.82 783.37 76.95
Linnet 26/7 26 2.89 7 2.25 18.29 687.53 62.72
Widgeon 18/1 18 3.47 1 3.47 17.37 542.88 38.7
Lark 30/7 30 2.92 7 2.92 20.47 925.34 90.3
Ibis 26/7 26 3.14 7 2.44 19.89 812.54 72.51
About Us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
  • overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
  • 1-35kv overhead transmission line use insulated conductor
  • power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
  • power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
  • 300/300V, 300/500V, 450/750V cotrol cable, house wire

We are China ACSR Duck Aluminum Conductor Steel Reinforced 605MCM Overhead Bare Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
