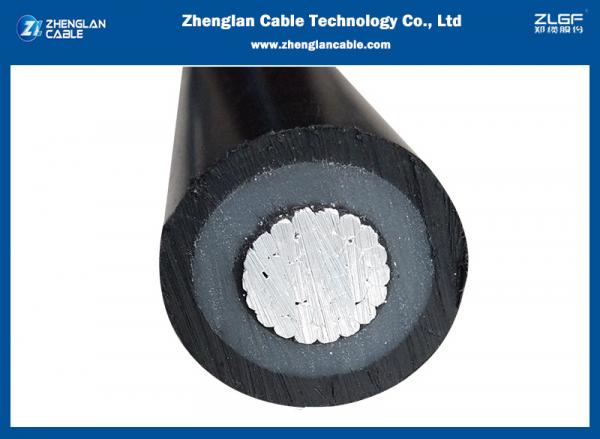

Aerial Bundled ABC AL/XLPE 1x95SQMM XLPE Insulated Cables

Aerial Bundled ABC AL/XLPE 1x95SQMM XLPE Insulated Cables image

Get a Quote Email to us

Brand Name :
Zhenglan cable

Model Number :
ABC

Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
1000 meters

Price :
As Negotiate

Payment Terms :
L/C, T/T

Supply Ability :
82,000 KM/Year

Delivery Time :
12 days

Packaging Details :
Wooden drum, wood and steel drum,as customer’s request

Material :
AL/XLPE

Application :
overhead power distribution

Insulation :
XLPE

Out Sheath Color :
Black or Customized

Core :
1-5 cores

Cable Mark :
Ink printing or Embossing Content Customized

LV MV Aerial Bundled Conductor (ABC) Cables AL/XLPE 1x95SQMM Overhead Power Distribution

Application:

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting. This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.

Standard:
Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards

CONSTRUCTION

Conductor: Aluminium conductor, round stranded compressed (RM).

insulation: XPLE compound, UV-resistant.

Core identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm² and a minimum of 16 ribs for cores above 50 mm². In the case of five core bundles the surface of the protective core should be smooth.

2 Cores : 1 rib Or Number 1

3 Cores : 2 ribs Or Number 1,2

4 Cores : 3 ribs Or Number 1,2,3

Cable Parameters:

Number of Cores xNominal Cross Section	Overall Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.×mm²	mm	Kg/Km	Ω/Km	KN	A
1×16 RM	8,0	74	1,910	2,5	72
1×25 RM	9,0	106	1,200	4,0	107
1×35 RM	10,5	138	0,868	5,5	132
1×50 RM	11,8	182	0,641	8,0	165
1×70 RM	13,0	252	0,443	10,7	205
1×95 RM	15,4	333	0,320	13,7	240
1×120 RM	17,0	408	0,253	18,6	290
1×150 RM	19,0	502	0,206	23,2	334
1×185 RM	21,0	611	0,164	28,7	389
1×240 RM	24,0	801	0,125	37,2	467
2×16 RM	15,6	147	1,910	2,5	72
2×25 RM	18,0	208	1,200	4,0	107
2×35 RM	20,0	277	0,868	5,5	132
2×50 RM	23,5	361	0,641	8,0	165
2×70 RM	25,4	505	0,443	10,7	205
2×95 RM	30,3	666	0,320	13,7	240
2×150 RM	38,0	1004	0,206	23,2	334
4×16 RM	18,8	286	1,910	2,5	72
4×25 RM	21,2	430	1,200	4,0	107
4×35 RM	24,1	553	0,868	5,5	132
4×50 RM	27,8	746	0,641	8,0	165
4×70 RM	31,8	1.009	0,443	10,7	205
4×95 RM	37,8	1.332	0,320	13,7	240
Number of Cores xNominal Cross Section	Overall Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.×mm²	mm	Kg/Km	Ω/Km	KN	A
4×120 RM	54,4	1.632	0,253	18,6	290
4×50 + 1×25 RM	319	814	0,641/1,200	8,0/4,0	165/107
4×50 + 1×35 RM	319	845	0,641/0,868	8,5/5,5	165/132
4×70 + 1×25 RM	360	1105	0,443/1,200	10,7/4,0	205/107
4×70 + 2×25 RM	400	1217	0,443/1,200	10,7/4,0	205/107
4×95 + 1×25 RM	418	1438	0,320/1,200	13,7/4,0	240/107
4×95 + 2×25 RM	420	1544	0,320/1,200	13,7/4,0	240/107
4×120 + 1×25 RM	590	2050	0,253/1,200	18,6/4,0	290/107

Why Choose Zhenglan Cable:

OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.

We are China Aerial Bundled ABC AL/XLPE 1x95SQMM XLPE Insulated Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
