AL Foil Shielded Instrument Cable XLPE Insulation

 China AL Foil Shielded Instrument Cable XLPE Insulation supplier

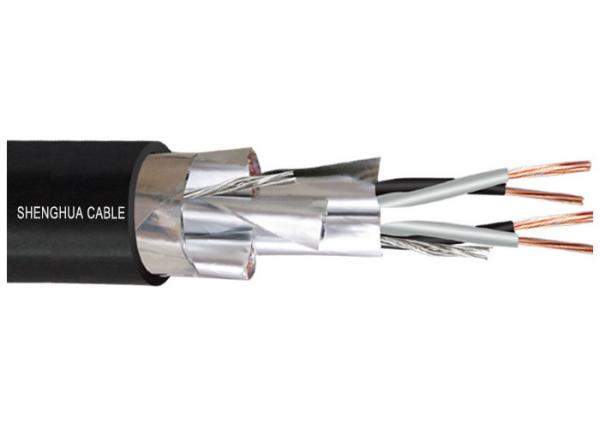

AL Foil Shielded Instrument Cable XLPE Insulation image

Get a Quote Email to us

Brand Name :
SHANCABLE

Model Number :
WDZ-KYYP3-33

Certification :
ISO,CE,IEC,TUV,KEMA

Place of Origin :
SHANGHAI, CHINA

MOQ :
3000

Price :
USD 1.6~12.9/meter

Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram

Supply Ability :
15000kilometer/Month

Delivery Time :
7 work days

Packaging Details :
Wooden drum

Model name :
Shielded Instrument Cable

Conductor Type :
Stranded Copper

Size :
1.5~10sqmm

Warranty :
2 years

Insulation color :
Any color

Flame retardant :
Yes

Armoured :
Steel Wire

Screen :
AL-foil plastic

Stranded Copper Conductor PE Insulated Al-Foil Plastic Screen With Steel Wire Armoured LSZH Sheath

Description:

Conductor Material Copper/Tinned Copper
Type Stranded/Solid/Flexible
Insulation Material PE/XLPE/PVC
Shield Material Copper wire braiding, Copper tape wrapping and Al-foil plastic with drain wire
Armored Material Steel wire or steel tape optional
Outer Sheath Material PVC/PE/LSZH

Application:

This product applies for connecting wire of electric appliance,apparatusor computer,used in distribution eqwipments with rated voltage up to and including A.C.450/750V

Shielded Instrument Cable is used as signal transmission and connection of checking appliances of distribution system, computer system and automatic system of power.

For use in installations designed to connect electrical instrumentation circuits and provide communication services in and around process plants. Suitable for direct burial applications.

Character and Relevant Parameters:

1. Long-term service temperature of the cable conductor: 70 or 90°C

2. Rated voltage: 300/500V,450/750V ,600/1000V.

3. Cable lying temperature ≥ 0°C

4. Cores(pair/triple): 1~19

5. Minimun bending radius:≥ out diameter of cable 6 times

Use condition

The cable is approved to operate upon fixed-installation or moveable using in ambient temperature from -40 ℃ to 50 ℃ , relative humidity not larger than 80%and operating temperature of core not higher than 70 ℃ as well as avoiding direct high-temperature radiation or contact. The temperature shall never less than 0℃ when the cable being laid. Permissible bending radius:not less than 6 times of overall diameter for unarmored cable;not less than 12 times of overall diameter for armored or screened cable;not less than 6 times of overall diameter for screened flexible cable.

Type Optional:

No. Optional Type Instrumenation Cable Description
1 DJYVPR Instrumenation soft cable with Cu core, PE insulation, PVC sheath, copper wire braided overall shielding
2 DJYPVP Instrumenation cable with Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
3 DJYPVPR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper wire braided individual & overall shielding
4 DJYVP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, copper tape wrapping overall shielding
5 DJYP2VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual shielding
6 DJYP2VP2R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath,copper tape wrapping individual & overall shielding
7 DJYVP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping overall shielding
8 DJYP3VR Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual shielding
9 DJYP3VP3 Instrumenation cable with Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding
10 DJYP3VP3R Instrumenation cable with flexible Cu core, PE insulation, PVC sheath, aluminum-plastic compound tape wrapping indivadual & overall shielding

Packing and shipping

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning
technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service . Our product are warranted by PICC(People's Insurance Company of China). We will
provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!
Shanghai Shenghua Cable (Group) Co., Ltd.

pair no x core x dia Reference outer diameter
DJYVP DJYVPR DJYPV DJPVR DJYPVP DJYPVRP
1x2x0.5 7.7 7.9 7.7 7.9 8.1 8.2
2x2x0.5 15.1 15.5 15.9 16.4 18 18.5
4x2x0.5 16.3 16.5 16.7 17.4 18.8 19.5
5x2x0.5 17.6 18.2 19 19.8 21.1 21.9
7x2x0.5 19.3 20.0 20.8 21.8 22.9 28.9
1x2x0.75 8.0 6.2 8 8.2 8.4 8.5
2x2x0.75 15.4 15.7 16.2 16.5 18.3 18.5
4x2x0.75 16.3 16.7 17.6 18.0 20.7 21.1
5x2x0.75 18.6 19.0 20.1 20.6 22.2 22.7
7x2x0.75 20.2 20.6 21.9 22.4 24 24.5
1x2x1.0 8.4 8.6 8.5 8.6 8.8 9.0
2x2x1.0 15.9 16.2 16.7 17.0 18.8 19.1
4x2x1.0 18.1 18.6 19.3 10.9 21.4 22.0
5x2x1.0 20.0 20.3 21.8 22.2 23.2 24.1
7x2x1.0 21.3 22.2 23.0 24.6 25.1 26.2
1x2x1.5 9.4 9.6 9.4 9.6 9.8 10.1
2x2x1.5 10.0 10.3 10.9 19.3 21.0 21.4
3x2x1.5 18.8 19.2 19.0 20.3 22 22.5
4x2x1.5 20.5 21.1 21.8 22.5 23.9 24.5
5x2x1.5 22.3 23.0 23.7 24.6 25.8 26
7x2x1.5 24 24.8 25.8 26.8 28 29

We are China AL Foil Shielded Instrument Cable XLPE Insulation manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
