Al Xlpe Cws Pvc 18/30(36)Kv 3Cx95sqmm Medium Voltage Power Cables

 China Al Xlpe Cws Pvc 18/30(36)Kv 3Cx95sqmm Medium Voltage Power Cables supplier

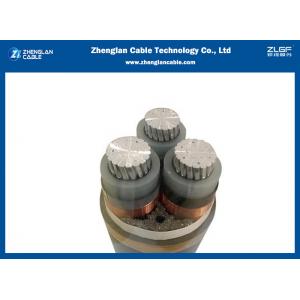

Al Xlpe Cws Pvc 18/30(36)Kv 3Cx95sqmm Medium Voltage Power Cables image

Get a Quote Email to us

18/30(36)kv al/xlpe/cts/pvc 3Cx95sqmm al/xlpe/cws/pvc aluminum cable​

Cable Construction


Either aluminium or copper conductors are used. Conductors up to 630mm² will be circular, compacted & stranded and shall comply with IEC 60228 class 2. 630mm² conductor will be circular stranded type on which a layer of semi-conducting tape will be applied.
Conductor Screen

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field. By careful material selection and special attention to process parameters, we produce the insulation screen layers with the required degree of stripping force as stipulated by the applicable national or international standard.

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.
Insulation Screen
This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.
Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.

Al Xlpe Cws Pvc 18/30(36)Kv 3Cx95sqmm Medium Voltage Power Cables

Three core without armor technical data

Normal cross sectional area(mm²)

Appro conductor dia


Nom insulation thickness


Copper tape thickness


Copper wire screen area(mm²) Appro. Insulation dia(mm)

Nom sheath thickness


Appro overall diameter


Appro weight(kg/km)
3Cx50 8.25 8.0 0.1 16 25.9 2.0 68 5800 4900
3Cx70 9.90 8.0 0.1 16 27.5 2.0 71 6800 5500
3Cx95 11.7 8.0 0.1 16 29.3 2.1 75 8000 6100
3Cx120 13.1 8.0 0.1 16 30.7 2.1 79 9000 6700
3Cx150 14.3 8.0 0.1 16 31.9 2.2 81 10100 7300
3Cx185 16.3 8.0 0.1 25 33.9 2.2 86 11800 8300
3Cx240 18.7 8.0 0.1 25 36.3 2.3 91 14000 9400
3Cx300 20.9 8.0 0.1 25 38.5 2.4 97 16500 10700
3Cx400 23.7 8.0 0.1 35 41.3 2.5 103 19700 12300

Test equipment

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.

We are China Al Xlpe Cws Pvc 18/30(36)Kv 3Cx95sqmm Medium Voltage Power Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
