All Dielectric Micro Tube Building Vertical G652D Fiber Optic Wire

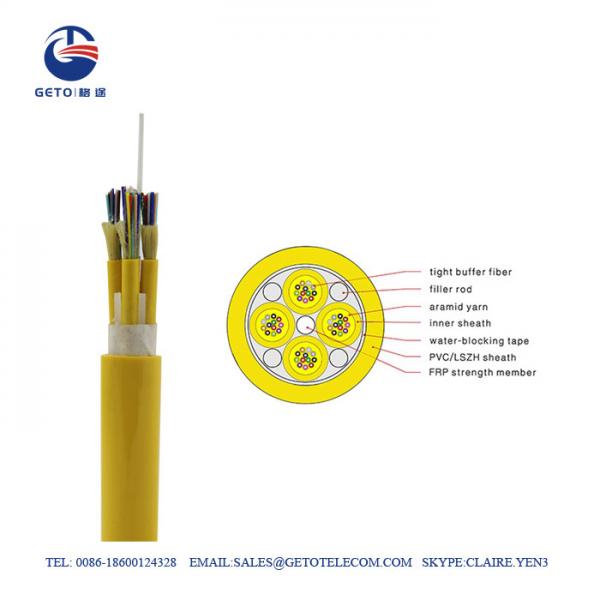

All Dielectric Micro Tube Building Vertical G652D Fiber Optic Wire image
Brand Name :
Geto Telecom
Model Number :
GJPFH
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
All-dielectric Micro-tube Building Vertical Wiring Fiber Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
GJPFH All-dielectric Micro-tube Building Vertical Wiring Fiber Cable
Description
GJPFH fiber optic cable is mainly used for vertical and horizontal wiring of buildings.This cable fully reflects the the fibre core is peeling easily and branching easily. At the corresponding floor, only the corresponding optical fiber is used to take out the corresponding optical fiber for construction, and it is not necessary to disconnect the entire optical fiber cable, thereby greatly saving construction process. It is now widely used in telecommunications, mobile communication buildings and inter-office communications.
Features:
- Accurate process control ensuring good mechanical and temperature performances
- Good structure design, easy for branching and splicing
- Small size and light weight, easy for installation
- LSZH sheath ensuring good flame-retardant performance
- Especially applicable to vertical wiring in buildings
Technical Parameters(Typical Value):
| No. of cable | 36 | 72 | ||||
| Fiber Model | G.657A2 | |||||
| Module | Material | LSZH | ||||
| Thickness | 0.17(±0.02)mm | |||||
| Diameter | 0.9(±0.05)mm | |||||
| Strength Member | Material | FRP | ||||
| Diameter | 1.0(±0.05)mm | |||||
| No. | 2 | |||||
| Outer Sheath | Material | LSZH-FR | ||||
| Color | White | |||||
| Cable Diameter | 10.5±0.5 | 11.5±0.5 | ||||
|
Max. allowable tension (Short-term) |
600N | |||||
|
Max. allowable tension (Long-term) |
200N | |||||
| Crush resistance test | 1000N/10cm | |||||
| Min. bending radius | Static | 105mm | 115mm | |||
| dynamic | 210mm | 230mm | ||||
|
Temperature range (℃) |
Installation | -5~+60 | ||||
| Transport&Storage | -40~+70 | |||||
| Operation | -5~+60 | |||||
Fibre Colours
| No. | 1 | 2 | 3 | 4 |
| Color | Red | Blue | Green | yellow |
Module Colours
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
| No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
| No. | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 |
| Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | Aqua | Pink |
Note:Othertypes of fiber can be provided according to the customer’s demands.
