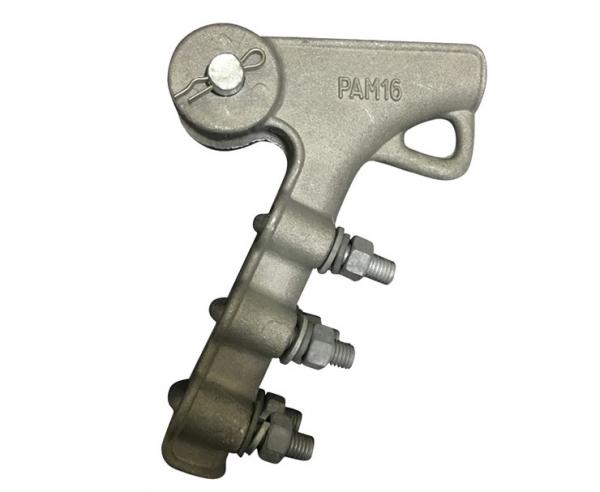

Aluminium Alloy Bolt Type Strain Clamp For 220KV Overhead Power Line
Aluminium Alloy Bolt Type Strain Clamp For 220KV Overhead Power Line image
Brand Name :
Suntech
Model Number :
Strain Clamp
Certification :
ISO9001
Place of Origin :
Ningbo,China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T,
Supply Ability :
50000pcs per month
Delivery Time :
20-25 days after payment
Packaging Details :
Exported Wooden Cases
Productor Name :
Alloy Bolt Type Strain Clamp
Material :
Aluminium Alloy
Application :
High and Low Voltage
Color :
Silver

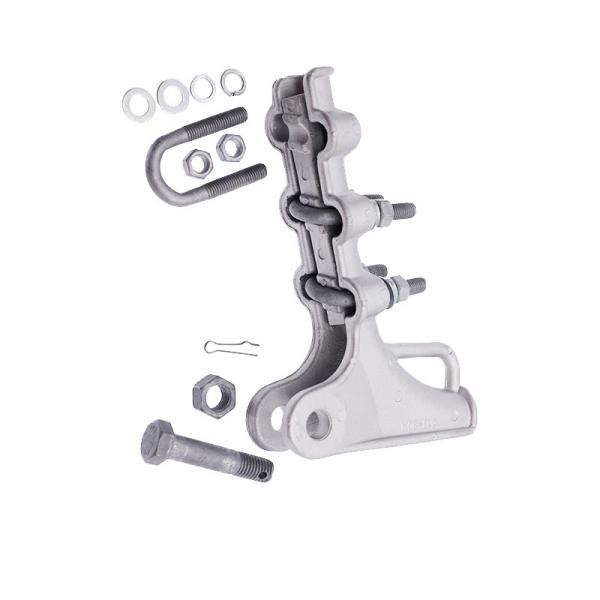

Tranmission Line NLL Series Aluminium Alloy Bolt Type Strain Clamp
Ningbo Suntech Power Machinery Tools Co.,Ltd. Is one of the global processional electircal apparatus manufacturer in China,covering various electrical frelds and engaged in the widest range of electrical power components and parts including Hardware Fitting,Clamps,Connectors,Terminals Cable Accessories,Insulators,Surge Arresters,Cutouts,Isolates Switches,Transormer,Tools,BK,BKC series control transformer,and all kinds of the regulator and so on.
As well, Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.
| Catalog No | Applicable Conductor | C | D | U Bolt | Specified Failure Load | Weight |
| (mm2) | KN | KG | ||||
| NLL-1 | 5.1-10.0 | 18 | 16 | 2 x M12 | 20 | 0.9 |
| NLL-2 | 10.0-14.0 | 18 | 16 | 2 x M12 | 40 | 1.1 |
| NLL-3 | 14.0-18.0 | 27 | 16 | 3 x M14 | 70 | 2.2 |
| NLL-4 | 18.0-23.0 | 30 | 18 | 3 x M14 | 90 | 2.8 |
| NLL-5 | 23.0-29.0 | 36 | 22 | 3 x M16 | 120 | 6.5 |
Note: NLL Series are suitable for aerial line up to 220KV, fixing aluminium wire or steel core aluminium wire on the stain pole.
We are China Aluminium Alloy Bolt Type Strain Clamp For 220KV Overhead Power Line manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 220KV Overhead Line Strain Clamp, 220KV Overhead Power Line Parts, Bolt Type Strain Clamp, Tower Erection ToolsSimilar Or Related
