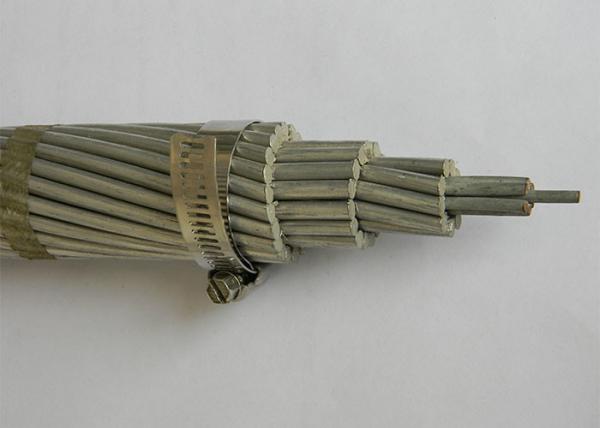

Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 117mm2
Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 117mm2 image
Brand Name :
Yifang Cable
Model Number :
JKLH
Certification :
CE,ISO,UL,KEMA
Place of Origin :
China
MOQ :
1km
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
500km per month
Delivery Time :
5-8working days
Packaging Details :
Wooden drum 1.1mx0.8mx1.1m, Wooden Steel Drum2.2mx1.45mx2.2m
Size :
54.6,93.3,117,228,288,336,507mm2
Standard :
NFC 34 215,EN 50182
material :
Aluminum Alloy
application :
overhead lv or mv power line
Coutry :
Senegal,Madagascar,Congo,Burkina Faso
Strands :
7,19,37,61
Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 117mm2
Quick Details
· Place of Origin: Henan, China (Mainland)
· Brand Name: Zhengcable
· Model Number: almelec cable with 7,19,37,61,91strands
· Insulation Material: none
· Type: HV MV LV
· Application: Overhead
· Conductor Material: Aluminium alloy
· Jacket: None
· advantage: Resistance chemical corrosion
· advantage1: anti heat-ageing,environment stress
· advantage2: light in weight
· advantage3: especially for laying across
Packaging & Delivery
| Packaging Details: | wooden drum;wooden_iron drum;iron drum. |
| Delivery Detail: | sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d) |
Product Description
All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard
1 Description of aaac cable
Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.
| Tech specs of AAAC 117mm2 | |||
| ITEM | DESCRIPTION | UNITS | OFFER DATA |
| 1 | Manufacturer | ‐ | Zhengzhou yifang cable co.ltd |
| 1.1 | Type Model No | ‐ | AAAC 117mm2 |
| 1.2 | Country of origin | ‐ | China |
| 2 | Structure | ‐ | |
| 2.1 | nominal section | mm² | 117 |
| 2.2 | Number | no. | 19 |
| 2.3 | Nominal diameter Diameter of single wire | mm | 2.8 |
| 2.4 | Approx.conductor diameter | mm | 14.0 |
| 3 | MECHANICAL PROPERTIES AND ELECTRICAL | ||
| 3.1 | Approx.weight of cable | Kg/Km | 321 |
| 3.2 | Breaking load | kN | 35.6 |
| 3.3 | Resistance at 20 ° C | Ohm/km | 0.286 |
| 4 | Standards | IEC 61089,NF EN 50182 | |
| 5 | Packing length | m | 2500±5% |
We are China Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 117mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
