Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 288mm2

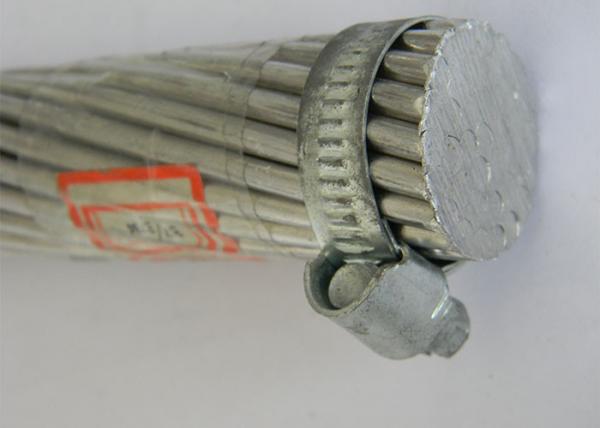

Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 288mm2 image
Brand Name :
Yifang Cable
Model Number :
JKLH
Certification :
CE,ISO,UL,KEMA
Place of Origin :
China
MOQ :
1km
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
500km per month
Delivery Time :
5-8working days
Packaging Details :
Wooden drum 1.1mx0.8mx1.1m, Wooden Steel Drum2.2mx1.45mx2.2m
Size :
54.6,93.3,117,228,288,336,507mm2
Standard :
NFC 34 215,EN 50182
material :
Aluminum Alloy
application :
overhead lv or mv power line
Coutry :
Senegal,Madagascar,Congo,Burkina Faso
Strands :
7,19,37,61
Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 288mm2
Quick Details
· Place of Origin: Henan, China (Mainland)
· Brand Name: Zhengcable
· Model Number: almelec cable with 7,19,37,61,91strands
· Insulation Material: none
· Type: HV MV LV
· Application: Overhead
· Conductor Material: Aluminium alloy
· Jacket: None
· advantage: Resistance chemical corrosion
· advantage1: anti heat-ageing,environment stress
· advantage2: light in weight
· advantage3: especially for laying across
Packaging & Delivery
| Packaging Details: | wooden drum;wooden_iron drum;iron drum. |
| Delivery Detail: | sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d) |
Product Description
All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard
1 Description of aaac cable
Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.
| TECHNICAL DATA SHEET | |||
| Câble Almélec 288 mm² ASTER | |||
| NO | DESCRIPTION | UNIT | DATA |
| 1 | Type/ code name | — | Almelec 288 |
| 2 | Material | — | Aluminium Alloy |
| 3 | Standards | — | IEC 61089,NFC 34 125,NF EN 50182 |
| 4 | Cross Section Area | mm2 | 288 |
| 5 | Conductor construction | ||
| Wire No. | No.s | 37 | |
| Nominal wire dia. | mm | 3.15 | |
| 6 | Approx. Overall Diameter | mm | 22.04 |
| 7 | Approx. Weight | kg/km | 786 |
| 8 | Min.Breaking Load | kN | 87.8 |
| 9 | Max. D.C. Resistant 20℃ | Ω/km | 0.1162 |
We are China Aluminum Alloy Bare Conductor Wire Aster Cable Almelec Conductor 288mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
