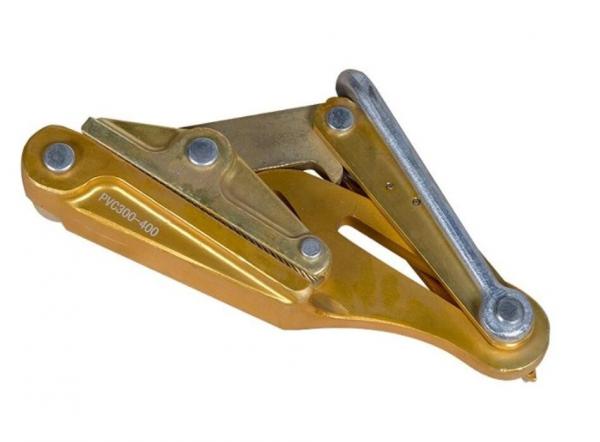

Aluminum Alloy Self Gripping Clamps Conductor Come Along 15KN
Aluminum Alloy Self Gripping Clamps Conductor Come Along 15KN image
Brand Name :
Suntech
Model Number :
SKL
Certification :
CE and ISO
Place of Origin :
Ningbo,China
MOQ :
1pcs
Price :
Get the lastest price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
In Stock
Packaging Details :
Exported Wooden Case
Certificaiton :
ISO
Origin :
Ningbo China
Name :
Aluminum Alloy Wire Grip
Model :
SKL
Weight :
1.4 Kg
Rated Load :
15 KN
Light Weight Aluminum Alloy Wire Grip For Conductor Come Along Clamp Zebra
Aluminum Alloy Wire Grip For Conductor Come Along Clamp Zebra
Uses: Come along clamp is apply to sag adjusting and tensioning on overhead line construction.
Features: The conductor clamp is forged of high strength aluminum alloy with small and light unit weight.
Aluminum Alloy Wire Grip Specification
Model SKL, rated load from 7KN to 50KN, applicable conducot ACSR from 25mm2 to 630mm2, the max open is 36mm, very light weight.
|
Item No.
|
Model No.
|
Rated Load
(KN)
|
Applicable Conductor
(ACSR-MM2)
|
Max Open
(MM)
|
Unit Weight
(KG)
|
|
0101
|
SKL-7
|
7
|
25~70
|
14
|
1.0
|
|
0102
|
SKL-15
|
15
|
95~120
|
18
|
1.4
|
|
0103
|
SKL-25
|
25
|
150~240
|
24
|
3.0
|
|
0104
|
SKL-40
|
40
|
300~400
|
32
|
4.0
|
|
0105
|
SKL-50
|
50
|
500~630
|
36
|
6.6
|
Conductor Gripper Sizes
Directions for use, maintenance and care for all kinds of all conductor grips:
Before each use: Check all parts for distortion or misalignment; proper maintenance and field inspection is necessary. Check grip to be sure of correct type and size for the application. Profile of the jaws and its teeth have to be kept always clean, dry, free of oil and grease to avoid a slipping of the wire.Avoid abrupt loading.Increase tensile force slowly to avoid slipping of the wire or even damage of the teeth. Lubricate only the rivets, never the jaws. Check mechanical condition of entire grip
Warning: When using grip never exceed Working load Limit WLL !
Our Plant also have the other kinds of come along clamps to support the operation, there is bolt type stranded wire gripper, it is to tighten compression nut reiteratively to satisfy the set torque. insulator conductor gripper is adopted serpentine and wavy jaw, positive grip and excellent protective to the insulation.
We are China Aluminum Alloy Self Gripping Clamps Conductor Come Along 15KN manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 15KN Self Gripping Clamps, Aluminum Alloy Self Gripping Clamps, come along clamp, Conductor Come Along ClampFAST AND RELIABLE SERVICE FOR YOUR PROJECT
