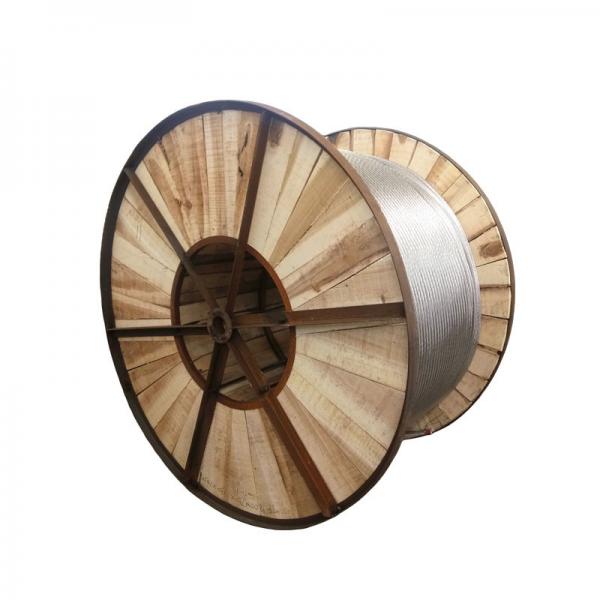

aluminum conductor steel reinforced ASTM B524 Aluminum Conductor Cable ACSR Cable Conductor

aluminum conductor steel reinforced ASTM B524 Aluminum Conductor Cable ACSR Cable Conductor​

Application

Aerial insulated cables of rated voltages up to and 1kV, This product is applicable to the aerial power distribution lines of rated voltage 0.6/1KV and below as the fixed laying lines or service wire.

Aerial insulated cables with rated voltages of 10 kV ,This product is a new type used for electricity supply on aerial power transmission lines, which has been preferentially selected as the 10kV engineering transmission line for the construction and transformation of grid system. This series of product is appropriate for maintained and security of lines and the product with annealed copper core is applicable to the down lead of transformer.

Stranded aluminium conductor steel-reinforced cores aerial insulated cables of rated voltages up to 10 kV ,This product is applicable to the aerial power distribution lines of A.C. voltage up to 10kV.

Operating Characteristics

1.Max. permissible continuous temperature:
PVC,PE insulated aerial cables:70℃
XLPE insulated aerial cables:90℃

2.HDPE insulated aerial cables:75℃

Max. short-circuit temperature of the conductor shall not exceed:
PVC insulated aerial cables: 160℃;
PE insulated aerial cables: 130℃;
XLPE insulated aerial cables: 250℃.

HDPE insulated aerial cables:150℃

3.Installation ambient temperature

The installation ambient temperature should not below -20℃.

1.Standard

ASTM B524 ,B 230, B 398, IEC61089, etc Application

2.Construction

ACSR has aluminium 1350 H-19 wires concentrically stranded around a 6201-T81 aluminium alloy core. Typically, the 6201-T81 is the conductor core, but in certain designs, the 1350 H-19 and the 6201-T81 wires may be stranded in the same layer

3.Features

1. ACSR offers excellent balance mechanical and electrical properties.

2.It has excellent corrosion resistance , owing to the compatible materials in the centre and the outer layers.

3.It is a compromise choice between AAC,ACSR,and AAAC.

4.It has 1350 designates grade of pure aluminium.

5. It has 6201 designates aluminium alloy grade.

4.Part of ACSR(6201) conductors of ASTM sizes.

5.Packaging and Delivery:

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

6.Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.
