Aluminum Conductor XLPE Insulated Power Cable For Power Distribution Transmission Line 6.35 – 11 KV

 China Aluminum Conductor XLPE Insulated Power Cable For Power Distribution Transmission Line 6.35 – 11 KV supplier

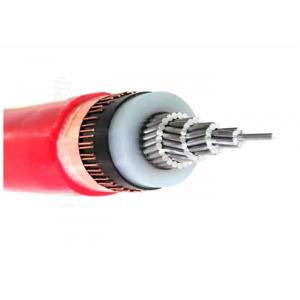

Aluminum Conductor XLPE Insulated Power Cable For Power Distribution Transmission Line 6.35 – 11 KV image

Get a Quote Email to us

Brand Name :SHANCABLE
Model Number :YJLV
Certification :ISO,CE,IEC,TUV,KEMA
Place of Origin :Shanghai, China
MOQ :Negotiable
Price :Negotiable
Payment Terms :L/C, T/T
Supply Ability :100KM/Week
Delivery Time :10 Days
Packaging Details :Wooden Drum
Rated Voltage :6.35/11kV
Insulation Color :Nature or Customization
Core No. :1 or 3
Conductor :Stranded Aluminum Conductor
Standard :IEC 60502-2,IEC 60228
Core Mark :Color Strip or Number
Cable Mark :Ink Printing or Embossing
Packing Style :500 to 1000 meter per drum
Drum type :Treaty steel wooden drum

Top Chinese Cable manufacturer XLPE Insulated Power cable 6.35-11kV Aluminum Conductor cable

Applications: XLPE Insulated Cable is used as power distribution and transmission line at rated voltage 6/10KV.

Construction:

Conductor Aluminunm Conductor as per IEC 60228,Class 2
Circular or Shaped conductor
Insulation XLPE (Cross-Linked Polyethylene) rated at 90℃,many color optional
Metallic Screen optional Copper tape or copper wires braiding optional
Sheath PVC or FR-PVC type ST2 to IEC 60502, black or red or customization

Ordering Advice

Rated Voltage

Application Standard: IEC/BS/UL/GB

Number of Cores

Conductor Size & Construction

Type of Insulation

Armored or unarmored. If armor, the armor type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

Technical data: Rated voltage:6/10kV Low Voltage

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor

Standards: International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)

China: GB/T 12706, (GB/T 18380-3 for FR-type only)

Other standards such as BS, DIN, VDE and ICEA upon request

Technical parameter:

Nom. Cross-section of conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 mm mm mm kg/km Ω /km kV/5min In air (A) In soil(A)
1×35 3.4 1.8 22 502 0.868 21 180 195
1×50 3.4 1.9 23 575 0.641 21 215 230
1×70 3.4 1.9 24 664 0.443 21 265 285
1×95 3.4 2.0 26 790 0.320 21 325 345
1×120 3.4 2.0 28 916 0.253 21 375 395
1×150 3.4 2.1 30 1038 0.206 21 425 445
1×185 3.4 2.1 31 1190 0.164 21 490 500
1×240 3.4 2.2 34 1423 0.125 21 580 590
1×300 3.4 2.4 36 1650 0.100 21 665 670
1×400 3.4 2.4 39 2027 0.0778 21 785 780
1×500 3.4 2.5 42 2384 0.0600 21 910 895
1×630 3.4 2.5 48 3046 0.0469 21 1060 1016
1×800 3.4 2.7 52 3575 0.0367 21 1230 1160
1×1000 3.4 2.9 57 4300 0.0291 21 1410 1300
1×1200 3.4 3.0 61 4986 0.0247 21 1540 1410
3×25 3.4 2.8 42 1430 1.20 21 110 110
3×35 3.4 2.9 44 1640 0.868 21 130 130
3×50 3.4 2.9 46 1881 0.641 21 160 155
3×70 3.4 2.9 50 2205 0.443 21 195 155
3×95 3.4 3.3 54 2653 0.320 21 235 190
3×120 3.4 3.3 58 3087 0.253 21 275 225
3×150 3.4 3.6 62 3518 0.206 21 310 225
3×185 3.4 3.6 65 3877 0.164 21 355 325
3×240 3.4 3.6 71 4753 0.125 21 415 380
3×300 3.4 3.8 75 5577 0.1005 21 475 430
3×400 3.4 3.9 84 7547 0.0778 21 555 484

Packing and shipping: We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

After-service commitment

Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client. Hereby, we guarantee that:

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips and installation commissioning technical advisory service when establish cooperation relationship with clients.
4. Thoughtful after sales service. Our product are warranted by PICC (People's Insurance Company of China). We will provide free maintaining and debugging within 12 month after installation(except for the wrong using).
5. We guarantee solve your problems within 24 hours in Shanghai, 72 hours for other district.
6. 24 hours hot-line telephone service. We will appoint professional person answer your question timely.
We always firmly believe that " Quality is life line, Service is laissez-passer", which will make us more closer and tight!

Shanghai Shenghua Cable (Group) Co., Ltd.

FAQ
Q: How long does it take to get a quote back?

A: Most quotes are returned within 24 hours, however, if it is for a special construction, it could take more days.

Q: What warranties do your products carry?

A: SHAN cable guarantees that all of our products, wires cables,and more are free from defects. We will take back any product that does not meet the agreed quality by both parties. The specific terms are as follows :
1. We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire
2. We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
3. The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
4. During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.

Q: Do you sell other products besides wire and cable?

A: Wire and cable is our forte, however, we also sell connectors, cable assemblies and cable tools to name just a few. Our products serve numerous markets all over the world.

We are China Aluminum Conductor XLPE Insulated Power Cable For Power Distribution Transmission Line 6.35 – 11 KV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
