Aluminum XLPE Low Voltage 0.6/1KV Triplex Service Drop Cable

 China Aluminum XLPE Low Voltage 0.6/1KV Triplex Service Drop Cable supplier

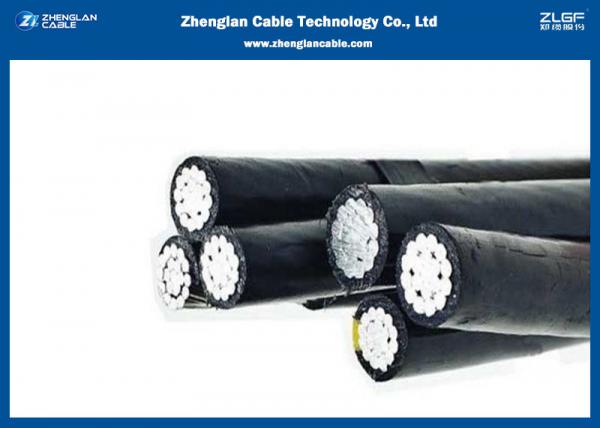

Aluminum XLPE Low Voltage 0.6/1KV Triplex Service Drop Cable image

Get a Quote Email to us

Brand Name :
Zhenglan cable

Model Number :
0.6/1KV Three+1 Cores Power Cable (Unarmoured) XLPE Insulated

Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
300 meters

Payment Terms :
L/C, T/T,

Delivery Time :
12 days

Packaging Details :
Wooden drum, wood and steel drum,as customer’s request

Material :
99.99% oxyzen free copper

Application :
power station

Insulation :
XLPE

Out Sheath Color :
Black or Customized

Core :
3+1

Cable Drum Length :
Customized

characted :
Unarmoured

Aluminum Conductor XLPE Insulated Low Voltage Triplex Service Drop Cable

Description:
0.6/1KV XLPE Insulated Cables (Unarmoured)

IEC60502,IEC60228,GB/T 12706.1-2008
CE,CCC,KEMA,ISO

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Application:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Standard:
Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Certificates:
CE, ROHS,KEMA and more others at request

Insulation:
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code Colour Code (1):
1 Core: Red or Black; 2 Cores: Red, Black; 3 Cores: Red, Yellow, Blue; 4 Cores: Red, Yellow, Blue, Black; 5 Cores: Red, Yellow, Blue, Black, Green; Above 5 Cores: Black Cores with White numerals

Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.

Armour:
Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.

Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Fire Performance of Cable Sheaths:
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.
Cable Parameters:
Three+1 Cores Power Cable (Unarmoured)

Nominal
Cross
Section

Diameter of
Conductor
(Approx.)

Nominal
Insulation
Thickness

Nominal
PVC Sheath
Thickness

Overall
Diameter
(Approx.)

Weight
of Cable
(Approx.)

mm² (3)mm (1)mm (3)mm (1)mm mm mm Kg/Km
3x 16/10 5.0 4.0 0.7 0.7 1.8 20.0 825
3x 25/16 6.3 5.0 0.9 0.7 1.8 22.8 1235
3x 35/16 7.4 5.0 0.9 0.7 1.8 24.8 1565
3x 50/25 8.8 6.3 1.0 0.9 1.8 28.5 2220
3x 70/35 10.6 7.4 1.1 0.9 1.9 32.0 2925
3x 95/50 12.4 8.8 1.1 1 2.1 37.5 3525
3×120/70 14.0 10.6 1.2 1.1 2.2 41.5 4940
3×150/70 15.5 10.6 1.4 1.1 2.3 45.0 6250
3×185/95 17.4 12.4 1.6 1.1 2.5 50.5 7450
3×240/120 20.3 14.0 1.7 1.2 2.6 56.0 9500
3×300/150 22.7 15.5 1.8 1.4 2.8 64.5 12100
3×400/185 25.4 17.4 2.0 1.6 3.1 70.0 18900

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
























































We are China Aluminum XLPE Low Voltage 0.6/1KV Triplex Service Drop Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
