Anti Twist Braid Galvanized Steel Wire For Transmission Line Stringing

 China Anti Twist Braid Galvanized Steel Wire For Transmission Line Stringing supplier

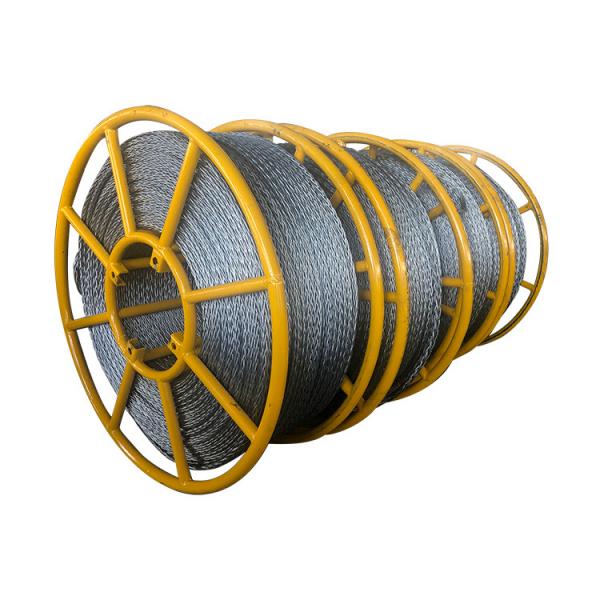

Anti Twist Braid Galvanized Steel Wire For Transmission Line Stringing image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
NT HT ST, Hexagon with 12 strands & 18 strands

Certification :
ISO

Place of Origin :
Ningbo,China

MOQ :
1000m

Price :
Get Latest Price

Payment Terms :
L/C, T/T,Western Union, MoneyGram

Supply Ability :
10000 meter/meters per day

Delivery Time :
7-10 days after payment

Packaging Details :
Steel Reel

Structure :
Hexagon With 12 Strands

Application :
Transmission Line Stringing

Surface Treatment :
Galvanized

Diameter :
9-30mm

Item :
Anti Twisted Pilot Rope Hexagon With 12 Strands Galvanized

Function :
Stringing Pilot Wire

Galvanized Steel Anti Twist Braid Rope for Transmission Line Stringing

Suntech Power is a Professional manufacturer of transmission line stringing tools and equipments in Ningbo,China. Such as conductor stringing blocks,cable roller,hoisting tackles,pulley blocks,conductor grippers,cable reel stand,gin poles,inspection trolleys,hydraulic puller tensioner,conductor compressors,cable pulling winch,anti twisting wire steel rope,etc.

Features

The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .

The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.

Hexagon is more suitable for puller, tensioner,winch, hoisting etc .

Technical Data

Model Structure

Nominal

Dia

(mm)

Single

bundle

Dia

(mm)

Ref

Weight

(kg/100m)

Breaking

Force(KN)

Standard

Length

(m)

HL9-12×19W Hexagon with 12 strands 9 2.0 26.69 55.0 1000
HL11-12×19W Hexagon with 12 strands 11 2.5 45.73 80.5 1000
HL13-12×19W Hexagon with 12 strands 13 3.0 57.96 120.0 1000
HL16-12×19W Hexagon with 12 strands 16 3.5 82.80 158.0 1000
HL18-12×19W Hexagon with 12 strands 18 4.0 103.82 210.0 1000
HL20-12×T25Fi Hexagon with 12 strands 20 4.5 129.62 250.0 800
HL22-12×T25Fi Hexagon with 12 strands 22 4.8 147.88 320.0 800
HL24-12×T25Fi Hexagon with 12 strands 24 5.0-5.2 160.23 360.0 800
HL26-12×T25Fi Hexagon with 12 strands 26 5.5-5.6 193.71 420.0 700
HL28-12×T29Fi Hexagon with 12 strands 28 6.0 230.50 480.0 500
HL30-12×T29Fi Hexagon with 12 strands 30 6.5 272.04 540.0 500
HL20-18×19W Hexagon with 18 strands 20 4.0 159.80 300.0 800
HL22-18×T25Fi Hexagon with 18 strands 22 4.2 189.80 389.0 800
HL24-18×T25Fi Hexagon with 18 strands 24 4.8 216.20 440.0 800
HL26-18×T25Fi Hexagon with 18 strands 26 5.2 276.80 480.0 700
HL28-18×T29Fi Hexagon with 18 strands 28 5.4 301.20 580.0 500
HL30-18×T29Fi Hexagon with 18 strands 30 5.6 361.60 658.0 500
HL32-18×T29Fi Hexagon with 18 strands 32 6.0 423.00 780.0 500

Note:

The single length of rope can be made according to your requirement.
