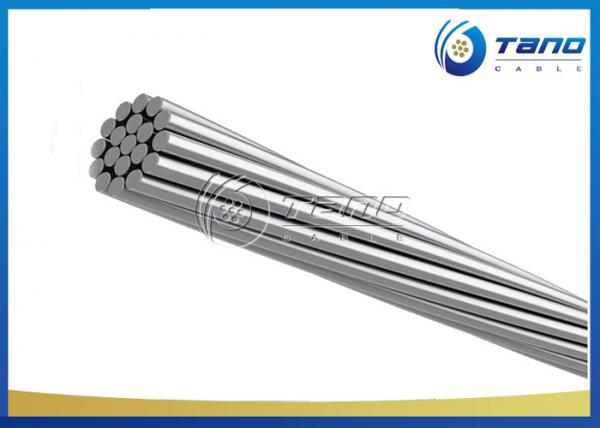

Ash All Aluminium Alloy Conductor Nominal Area 180.7mm2 EN 50182 Standard
Ash All Aluminium Alloy Conductor Nominal Area 180.7mm2 EN 50182 Standard image
Brand Name :
TANO CABLE
Model Number :
AAAC
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Supply Ability :
3000km Per Month
Delivery Time :
7 – 20 Days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Product Name :
All Aluminum Alloy Conductor
Key Word :
Bare Aluminum Conductor
Package :
Wooden Drum
Code Name :
Ash
Nominal Area :
180.7mm2
Standard :
EN 50182
TANO CABLE Code Name Ash Nominal Area 180.7mm2 British Standard EN 50182 AAAC Conductor
Description of All Aluminium Alloy Conductor
AAAC- 6201 Alloy Bare Aluminum
Application of All Aluminum Conductor
Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high
strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives AAAC higher resistance to corrosion than ACSR.
Standard of All Aluminum Conductor
EN 50182
Technical Specification of All Aluminum Conductor
| Code Name | Nominal Area |
No. / Dia. of Wire | Approx. Overall Diameter | Approx. Weight | Calculated Breaking Load | DC Resistance at 20° C Max. |
| mm2 | No. / mm | mm | kg/km | kN | Ohm/km | |
| Box | 18.8 | 7/1.85 | 5.55 | 51.4 | 5.6 | 1.7480 |
| Acacia | 23.8 | 7/2.08 | 6.24 | 64.9 | 7.0 | 1.3828 |
| Almond | 30.1 | 7/2.34 | 7.02 | 82.2 | 8.9 | 1.0926 |
| Cedar | 35.5 | 7/2.54 | 7.62 | 96.8 | 10.5 | 0.9273 |
| Deodar | 42.2 | 7/2.77 | 8.31 | 115.2 | 12.4 | 0.7797 |
| Fir | 47.8 | 7/2.95 | 8.85 | 130.6 | 14.1 | 0.6875 |
| Hazel | 59.9 | 7/3.30 | 9.90 | 163.4 | 17.7 | 0.5494 |
| Pine | 71.6 | 7/3.61 | 10.83 | 195.6 | 21.1 | 0.4591 |
| Holly | 84.1 | 7/3.91 | 11.73 | 229.5 | 24.8 | 0.3913 |
| Willow | 89.7 | 7/4.04 | 12.12 | 245.0 | 26.5 | 0.3665 |
| Oak | 118.9 | 7/4.65 | 13.95 | 324.5 | 35.1 | 0.2767 |
| Mulberry | 150.9 | 19/3.18 | 15.90 | 414.3 | 44.5 | 0.2192 |
| Ash | 180.7 | 19/3.48 | 17.40 | 496.1 | 53.3 | 0.1830 |
| Elm | 211.0 | 19/3.76 | 18.80 | 579.2 | 62.2 | 0.1568 |
| Poplar | 239.4 | 37/2.87 | 20.09 | 659.4 | 70.6 | 0.1387 |
| Sycamore | 303.2 | 37/3.23 | 22.61 | 835.2 | 89.4 | 0.1095 |
| Upas | 362.1 | 37/3.53 | 24.71 | 997.5 | 106.8 | 0.0917 |
| Yew | 479.0 | 37/4.06 | 28.42 | 1319.6 | 141.3 | 0.0693 |
| Totara | 498.1 | 37/4.14 | 28.98 | 1372.1 | 146.9 | 0.0666 |
| Rubus | 586.9 | 61/3.50 | 31.50 | 1622.0 | 173.1 | 0.0567 |
| Sorbus | 659.4 | 61/3.71 | 33.39 | 1822.5 | 194.5 | 0.0505 |
| Araucaria | 821.1 | 61/4.14 | 37.26 | 2269.4 | 242.2 | 0.0406 |
| Redwood | 996.2 | 61/4.56 | 41.04 | 2753.2 | 293.9 | 0.0334 |
Construction of All Aluminum Conductor
