Astm 399 Aaac Conductor Akron 15.48 Alton 24.71mm2

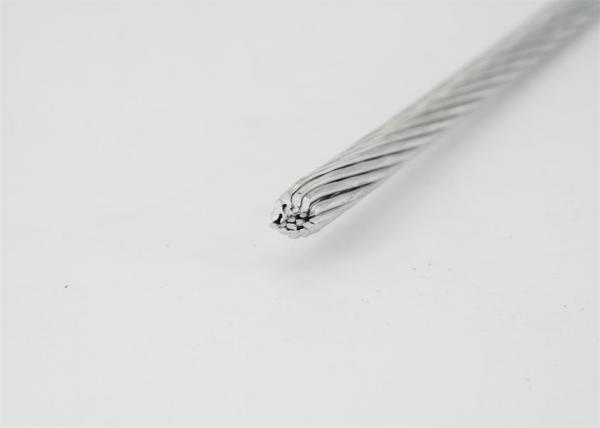

Astm 399 Aaac Conductor Akron 15.48 Alton 24.71mm2 image
Brand Name :
Sanwu
Model Number :
ASTM 399 AAAC
Certification :
CCC,ISO
Place of Origin :
LUOYANG,CHINA
MOQ :
1000m
Price :
Negociable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
1-15days
Packaging Details :
New wooden drum, Reel, Circle or according to customer’s request.
Product Name :
All aluminium alloy conductor
Application :
Overhead transmission line, electrical transmission line
Standard :
ASTM 399 AAAC
Insulation :
No, Bare conductor
Type :
concentric lay stranded
Aluminum alloy :
6201-T81
ASTM 399 AAAC Akron 15.48 Alton 24.71 mm2 All aluminium alloy conductor
SINCE 2016
1. APPLICATION
Used as bare overhead conductor for primary and secondary distribution.
2. STANDARDS
Standard Specification for Concentric-Lay-Stranded Aluminum-Alloy 6201-T81 Conductors
ASTM B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
ASTM B-399 Concentric-Lay-Stranded 6201-T81 power transmission lines
3. CONDUCTORS
This specification covers concentric-lay-stranded conductors, made from round aluminum-alloy 6201-T81 (hard: solution heat-treated, cold worked, and then artificially aged) wires, for use for electrical purposes. These conductors shall be constructed with a central core surrounded by one or more layers of helically laid wires. Conductors are classified as follows: Class AA (for bare conductors usually used in overhead lines) and Class A ( for conductors to be covered with weather resistant materials). The concentric-lay-stranded aluminum-alloy 6201 conductors sized to have diameter equal to ACSR, Class AA, and class A shall conform to the described construction requirements. The maximum electrical resistance of a unit length of stranded conductor shall not exceed the required nominal DC resistance. The concentric-lay-stranded aluminum-alloy 6201 conductors sized by standard areas, Class AA, and Class A shall conform to the described construction requirements. Minimum distance between joints in the complex and rating factors shall be described.
|
Code Name |
Area |
Size & Stranding of ACSR with Equal Diameter |
No. & Diameter of wires |
Overall Diameter |
Weight |
Nominal Breaking Load |
||
| Nominal | Actual | |||||||
| MCM | mm2 | AWG or MCM | Al/Steel | mm | mm | kg/km | kN | |
| Akron | 30.58 | 15.48 | 6 | 6/1 | 7/1.68 | 5.04 | 42.7 | 4.92 |
| Alton | 48.69 | 24.71 | 4 | 6/1 | 7/2.12 | 6.35 | 68.0 | 7.84 |
| Ames | 77.47 | 39.22 | 2 | 6/1 | 7/2.67 | 8.02 | 108 | 12.45 |
| Azusa | 123.3 | 62.38 | 1/0 | 6/1 | 7/3.37 | 10.11 | 172 | 18.97 |
| Anaheim | 155.4 | 78.65 | 2/0 | 6/1 | 7/3.78 | 11.35 | 217 | 23.93 |
| Amherst | 195.7 | 99.22 | 3/0 | 6/1 | 7/4.25 | 12.75 | 273 | 30.18 |
| Alliance | 246.9 | 125.1 | 4/0 | 6/1 | 7/4.77 | 14.31 | 345 | 38.05 |
| Butte | 312.8 | 158.6 | 266.8 | 26/7 | 19/3.26 | 16.30 | 437 | 48.76 |
| Canton | 394.5 | 199.9 | 336.4 | 26/7 | 19/3.66 | 18.30 | 551 | 58.91 |
| Cairo | 465.4 | 235.8 | 397.5 | 26/7 | 19/3.98 | 19.88 | 650 | 69.48 |
| Darien | 559.5 | 283.5 | 477.0 | 26/7 | 19/4.36 | 21.79 | 781 | 83.52 |
| Elgin | 652.4 | 330.6 | 556.5 | 26/7 | 19/4.71 | 23.54 | 911 | 97.42 |
| Flint | 740.8 | 375.3 | 636.0 | 26/7 | 37/3.59 | 25.16 | 1035 | 108.21 |
| Greely | 927.2 | 469.8 | 795.0 | 26/7 | 37/4.02 | 28.14 | 1295 | 135.47 |
4. FAQ
(1).Are you a manufacturer or trading company?
We are a leading and profesional manufacturer of cable and wire, including: LV power cable, ABC, bare conductor, building wire, control cable and so on, with high quality.
(2). Is it sample available?
For stock product, of course, the sample is available for free. The sample will be released against the freight, and freight collect is also acceptable.
(3). Can we represent your SANWU CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
(4). How about the package?
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
5. Available Samples
6. Factory Cable making machines
7. Packing&Delivery
We are China Astm 399 Aaac Conductor Akron 15.48 Alton 24.71mm2 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
