ASTM A475 Galvanized Steel Messenger Wire 3/8inch (7/3.05mm) High Strength Grade

ASTM A475 Galvanized Steel Messenger Wire 3/8inch (7/3.05mm) High Strength Grade image

Get a Quote Email to us

Brand Name :Zhenglan cable

Model Number :Galvanized steel wire Messenger wire 3/8inch (7/3.05mm) high strength grade ASTM A475

Certification :CE, ISO

Place of Origin :Henan, China

MOQ :3tons

Price :0.1-50USD/meter

Payment Terms :L/C, T/T, Western Union

Supply Ability :20tons/day

Delivery Time :As per quantity

Packaging Details :wood drum, iron steel drum

Application :Welding, Fencing, Binding

Certificate :ISO9001, 14001

Outer layer stranding :to the left or customized

Feature :High Strength, Corrosion Resistance

MOQ :3 Ton

Material :Galvanized Steel

Packing :Spool, Coil, Reel

Payment Term :T/T, L/C, Western Union

Surface Treatment :Galvanized

Galvanized steel wire Messenger wire 3/8inch (7/3.05mm) high strength grade ASTM A475 features

Galvanized steel is steel with a zinc coating. This zinc coating acts as a protective barrier and prevents corrosion & rust.

Stranding process requirements

1. The steel wires in the steel strand (including the center steel wire) should be of the same diameter, the same strength, and the same zinc layer level.

2. The diameter and lay length of the steel strand should be uniform and not loose after cutting.

3. The steel wires in the steel strand should be tightly twisted and should not be staggered, broken or bent.

4. The steel strand should be straight, soft, with small residual stress and should not be deformed after expansion.

5. No joints are allowed in 1×3 structural steel strands and overhead ground wires. The steel wire joints in other types of steel strands should be welded butt joints. The distance between any two joints should not be less than 50m and the joints should be treated with anti-corrosion treatment.

Surface Quality

1. The surface of the steel wires in the steel strand should not have defects such as overlapping marks, scratches, breaks, flattening and hard bends.

2. The surface of the steel strand must be free of oil, dirt, water and other impurities.

3. The galvanized layer on the surface of the split steel wires in the steel strand should be uniform and continuous, without cracks or peeling. However, a small amount of flash points, white thin layer and color difference are allowed on the surface of the zinc layer.

Galvanized steel wire Messenger wire 3/8inch (7/3.05mm) high strength grade ASTM A475 technical data

Strand Diameter (Inches)	Coated Wire Diameter (Inches)					Siemens-		Extra-High
		Wires Per Strand	Strand Weight lbs./1,000 ft.	Utilities	Common	Martin	High Strength Grade	Strength	Class A
				Grade	Grade	Grade		Grade
(3/8)	0.12	7	273	11,500	4,250	6,950	10,800	15,400	0.85

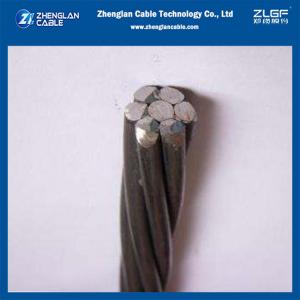

Galvanized steel wire Messenger wire 3/8inch (7/3.05mm) high strength grade ASTM A475 images and packing style

We are China ASTM A475 Galvanized Steel Messenger Wire 3/8inch (7/3.05mm) High Strength Grade manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
