ASTM B 711 AACSR Bare Aluminium Conductor Aluminum Alloy Steel Reinforced

 China ASTM B 711 AACSR Bare Aluminium Conductor Aluminum Alloy Steel Reinforced supplier

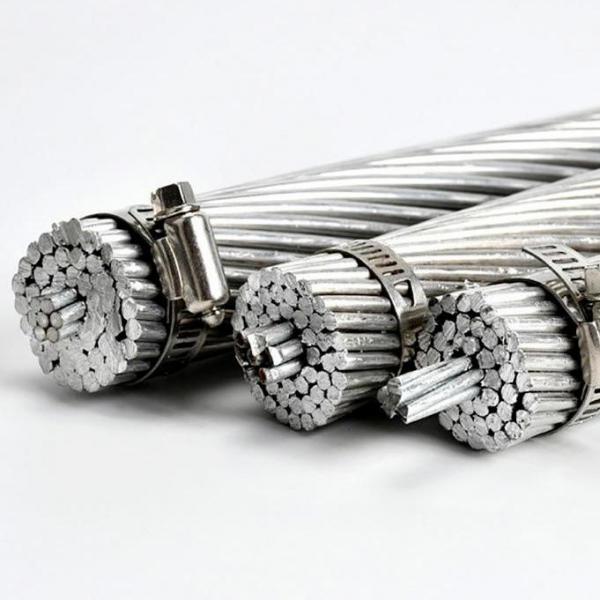

ASTM B 711 AACSR Bare Aluminium Conductor Aluminum Alloy Steel Reinforced image

Get a Quote Email to us

Brand Name :
Nuocing

Model Number :
AACSR

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-5

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Product Name :
Aluminum Alloy Steel Reinforced Bare Aluminum Conductor

Conductor :
Aluminum Alloy

Application :
Overhead

Insulation material :
None

Standard :
ASTM B 711, IEC 61089, DIN 48206, etc.

Warranty :
1 Year

ASTM B 711 Aluminum alloy steel reinforced AACSR Bare Aluminum Conductor

Description:

Compared with the conventional ACSR, the all aluminum alloy conductor steel reinforced features high tensile strength, light weight, sound creep resistance and good sag property. When setting up lines, our AACSR can help to reduce the iron tower height, enlarge the span length, and lower the cost.

Application:

The all aluminum alloy conductor steel reinforced is used for the power transmission lines with large span length installed under various severe weather conditions like snow, ice, storms, and so on. AACSR offers optimal strength for line design. Variable steel core stranding enables the desired strength to be achieved without sacrificing ampacity.

Standard:

ASTM B 711, IEC 61089, DIN 48206, etc.

Construction:

AACSR bare aluminium conductor is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be a single wire or stranded, depending on the size. The proportion of aluminum alloy and steel can be varied to obtain sound current carrying capacity and mechanical strength in order to make our all aluminum alloy conductor steel reinforced best suited to each application. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Specificaiton:

Product name Bare Aluminium Conductor
Certifications CE/CCC/ISO
Standard ASTM,IEC, DIN,BS
Conductor material Stranded Aluminum
Insulation Material None
Section Area 10-1000 sqmm
Packing wooden drum
Warranty one year

Bare Aluminium Conductor

We are China ASTM B 711 AACSR Bare Aluminium Conductor Aluminum Alloy Steel Reinforced manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
