ASTM B231 Overhead Distribution 15kv Aaac Core Tree Wire

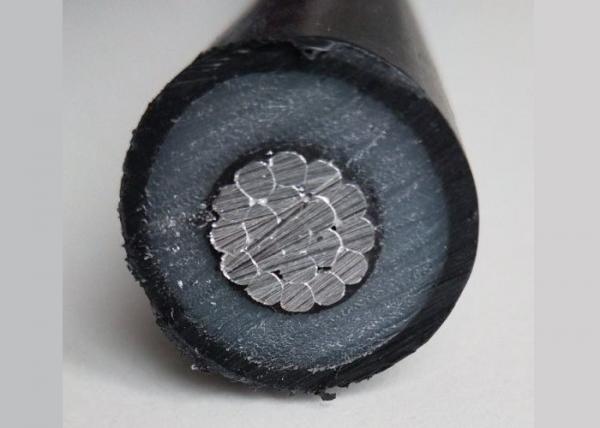

ASTM B231 Overhead Distribution 15kv Aaac Core Tree Wire image
15KV TREE WIRE AAAC CORE ACCORDING TO ICEA S-61-402
The cable is used for primary and secondary overhead distribution where limited space is available or desirable for rights of way.
It is installed as a bare conductor. Covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors. Particularly useful in congested areas such as alleyways or tight corridors.
ASTM B230,ASTM B231,ASTM B232 ASTM B398,ASTM B399,ASTM B400
AAC/AAAC/ACSR Conductor , XLPE/ Insulation , HDPE Outer Jacket
Packing Material:Wooden Reel, Iron-wooden Reel, Steel Reel
Tree Wire-15KV-3Layer-AAAC Core
|Size||Stranding No.||Conductor dia.||Conductor Shield Thickness||Insulation thickness||Outer sheath thickness||Approx. Cable. Dia.||Approx. Cable Weight||Rated strength|
Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum
Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port
Click here for FOB and CIF prices
CN Cable Group is specialized in development, design, production, sales, installation and technology service of wires & cables and accessories. We have strong manufacturing capacity and rich export experience for more than 15 years. The main products of the company include: Power cables up to 500KV, bare conductors (AAC/AAAC/ ACSR/ACAR/Galvanized steel wires, etc.), ABC cables, Electric wires and Electric equipment cables, Rubber cables, Special cables, cable accessories, etc.
The company has passed Quality Management System ISO 9001:2015 and ISO 14001:2015, owned CE certificate and IEC certificate, etc. Advanced production technology and production equipments are also adopted .Some advanced producing and testing equipments are imported from Switzerland, Finland, Germany, the United States and other countries. For example, CCV cross-linked production line from Finland, and VCV cross-linked production line from German Troester, etc.
There are more than 300 workers in the factory; most of them have rich experiences in the field of cable manufacturing, engineering technology, and enterprise management. More than 40 persons are of senior professional and technical personnel, who are the upgraded technology experts and academic technology leaders. Design and production of all of our products are strictly according to the relative standards, such as ASTM, Australian standard, BS, CSA, CCITT, DIN,GB, IEC, JIS, NFC, UL, etc. Our products have been exported to more than 80 countries and regions. Such as Australia, Bangladesh, Brazil, Canada, Chile, Congo, Dominican, Ghana, Indonesia, Iran, Kenya, Nigeria, Peru, Philippines, Rwanda, Saudi Arab, South Africa, Sudan, Togo, Uganda, US, UK, Zambia.
Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q3: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q4: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
We are China ASTM B231 Overhead Distribution 15kv Aaac Core Tree Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.Tags: 15kv ABC Power Cable, Aaac Core Tree Wire, ABC Power Cable, ASTM B231 Tree Wire
