ASTM-B232 Standard Acsr Panther Conductor High Tensile Strength

 China ASTM-B232 Standard Acsr Panther Conductor High Tensile Strength supplier

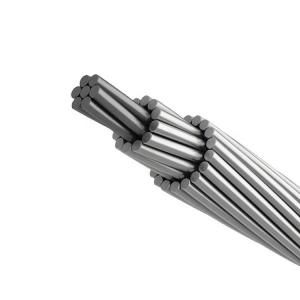

ASTM-B232 Standard Acsr Panther Conductor High Tensile Strength image

Get a Quote Email to us

Brand Name :Sanwu
Model Number :ACSR-001
Certification :ISO CCC
Place of Origin :Henan
MOQ :1000M
Price :Negotiable
Payment Terms :T/T, L/C, Western Union, MoneyGram
Supply Ability :200 tons per day
Delivery Time :1-15days
Packaging Details :New Wooden drum, reel, circle, or according to customers request.
Material :Aluminum
Keywords :Acsr Panther Conducto
Life span :More than 30 years
Application :Industry
Feature :High Tensile Strength
Original place :Henan, China

ASTM-B232 Standard Acsr Panther Conductor High Tensile Strength

Construction

Conductor: AL1350 pure aluminum
Steel core: G1A or G2A steel wire
Zinc coating steel wire

ACSR Conductor

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products,please leave a message,and we will immediately answer your questions. Thanks for your support.

Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels,because they have such good characteristics as simple structure,convenient installation and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.

We are China ASTM-B232 Standard Acsr Panther Conductor High Tensile Strength manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
