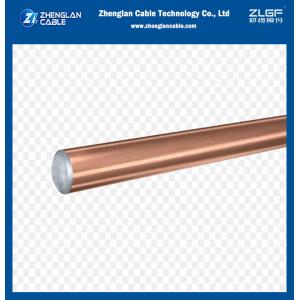

Bare CCS Copper Clad Steel Ground Electric Stranded Wire Rod Conductor image
Ground Factory Rod Conductor Wire Bare Copper Clad Steel Ground CCS Electric Stranded Wire *, *::before, *::after {box-sizing: border-box;}* {margin: 0;}html, body {height: 100%;}body {line-height: 1.5;-webkit-font-smoothing: antialiased;}img, picture, video, canvas, svg {display: block;max-width: 100%;}input, button, textarea, select {font: inherit;}p, h1, h2, h3, h4, h5, h6 {overflow-wrap: break-word;}ul, li, ol {padding: 0;list-style-position: inside;}.page-wrap {margin: 34px auto 0 auto;padding: 20px;color: #333;}.template1 h3:has(img)::after, .template2 h3:has(img)::after, .template3 h3:has(img)::after, .templat4 h3:has(img)::after, .templat5 h3:has(img)::after, .templat6 h3:has(img)::after {display: none !important;}.template1 h3 {color: rgb(0, 0, 0);font-size: 20px;font-weight: 700;line-height: 30px;margin-bottom: 6px;display: flex;margin-top: 22px;}.template1 .tit .tit-text {margin-right: 14px;font-size: inherit;font-weight: inherit;}.template1 h3:after {content: ;display: block;flex: 1;border-top: 1px dashed rgba(1, 1, 1, 0.8);position: relative;top: 17px;pointer-events: none;margin-left: 16px;}.template1 p {color: #333;font-size: 14px;font-weight: 400;line-height: 18px;}.template1 div {color: #333;font-size: 14px;font-weight: 400;line-height: 18px;margin-bottom: 6px;}.template1 ul, .template1 ol {font-size: 14px;font-weight: 400;line-height: 22px;list-style: decimal;}.template1 li span {color: #333;font-weight: normal;}.template1 table tr td, .template1 table tr th {padding: 4px;}li::marker {font-weight: normal;}.template1 table {border: 1px solid #333;width: 100%;border-collapse:collapse;}.template1 table td,.template1 table th {border: 1px solid #333;}
Product Description:
Copper clad Steel (CCS) conductors are with a concentric lay-stranded construction .The CCS strands are a 40%(or 30%, or 20%) conductivity grade of material using a low carbon steel core rendering greater flexibility to enable easier handling during installation.
STANDARDS
Construction as per ASTM ,IEC ,BS ,DIN, CSA,NFC and so on
APPLICATIONS
Copper clad steel wire and strand combines the electrical characteristics of copper with the mechanical properties of steel.Often used for buried ground grid systems ,overhead ground wire and messenger wire .it can resist mechanical damage during installation,as well as electrical damage during a fault condition. Copper clad steel has virtually no scrap value ,greatly reducing the potential of theft
Technical Parameters:
| No./size of strands | No./mm | Cross-section mm2 | Rated strength kN | DC Resistance,Ω/km | Approx. weight kg/km | ||||
| Grade 40 HS | Grade 30 HS | Grade 30 EHS | Grade 40 | Grade 30 | Grade 30 | Grade 40 | |||
| 3 No. 5 | 3/4.62 | 50.32 | 37.3 | 41.2 | 52.8 | 0.881 | 1.174 | 413.41 | 417.73 |
| 3 No.6 | 3/4.11 | 39.8 | 30.9 | 34 | 43.4 | 1.111 | 1.481 | 327.84 | 331.26 |
| 3 No. 7 | 3/3.67 | 31.65 | 25.5 | 28 | 35.3 | 1.401 | 1.867 | 259.39 | 262.66 |
| 3 No. 8 | 3/3.26 | 25.1 | 21.1 | 23 | 27.95 | 1.766 | 2.354 | 206.11 | 208.34 |
| 3 No. 9 | 3/2.91 | 19.9 | 17.13 | 18.9 | 22.8 | 2.227 | 2.969 | 163.55 | 165.19 |
| 3 No.10 | 3/2.59 | 15.78 | 14.35 | 15.6 | 18.5 | 2.808 | 3.744 | 129.62 | 130.99 |
| 3 No. 12 | 3/2.05 | 9.9 | 7.65 | 4.465 | 81.551 | 82.414 | |||
| 7 No. 4 | 7/5.19 | 148.1 | 99.3 | 110.3 | 130.9 | 0.3 | 0.4 | 1218.7 | 1231.5 |
| 7 No.5 | 7/4.62 | 117.4 | 82.4 | 91.1 | 109.7 | 0.378 | 0.504 | 966.41 | 976.53 |
| 7 No.6 | 7/4.11 | 93.1 | 68.2 | 75.2 | 91 | 0.477 | 0.636 | 766.25 | 774.29 |
| 7 No. 7 | 7/3.67 | 73.87 | 56.4 | 61.9 | 75.2 | 0.601 | 0.802 | 608.06 | 614.46 |
| 7 No.8 | 7/3.26 | 58.56 | 46.6 | 50.9 | 61.8 | 0.759 | 1.011 | 482.02 | 487.07 |
| 7 No. 9 | 7/2.91 | 46.44 | 38.4 | 41.2 | 50.2 | 0.956 | 1.275 | 382.16 | 386.18 |
| 7 No. 10 | 7/2.59 | 36.83 | 30.9 | 34 | 40.9 | 1.206 | 1.6 | 303.14 | 306.26 |
| 19 No. 5 | 19/4.62 | 318.7 | 223.5 | 247.2 | 297.6 | 0.14 | 0.187 | 2634 | 2660.8 |
| 19 No. 6 | 19/4.11 | 252.7 | 185.1 | 203.9 | 247 | 0.176 | 0.176 | 2087.9 | 2110.2 |
| 19 No. 7 | 19/3.67 | 200.4 | 153 | 167.9 | 204 | 0.222 | 0.297 | 1656.3 | 1674.2 |
| 19 No. 8 | 19/3.26 | 158.9 | 126.3 | 138.1 | 167.7 | 0.281 | 0.374 | 1313.6 | 1327.2 |
| 19 No. 9 | 19/2.91 | 12610 | 104.1 | 113.5 | 136.2 | 0.354 | 0.471 | 1041.7 | 1052.6 |
