Bare Conductor ACSR Aluminium Power Cable 1192.5 MCM Bunting Transmission Line ASTM B232

 China Bare Conductor ACSR Aluminium Power Cable 1192.5 MCM Bunting Transmission Line ASTM B232 supplier

Bare Conductor ACSR Aluminium Power Cable 1192.5 MCM Bunting Transmission Line ASTM B232 image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
Aluminum conductor steel reinforced 1192.5MCM Al/ST: 45/7 High voltage transmission use conductor

Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin :
Henan, China

MOQ :
1ton

Price :
0.1-100USD/m

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
15-30ton/day

Delivery Time :
7-15 days

Packaging Details :
Wooden drum, wood and steel drum,as customer’s request

Material :
AL&STEEL

Out Sheath Color :
None

Cable Drum Length :
Customized

Standard :
ASTMB232/232M

Country of original :
Henan, China

Total Area :
13.3~903.2

ACSR Conductor 1192.5MCM Bunting Bare Aluminum Overhead Power Transmission Line ASTM B232

Application

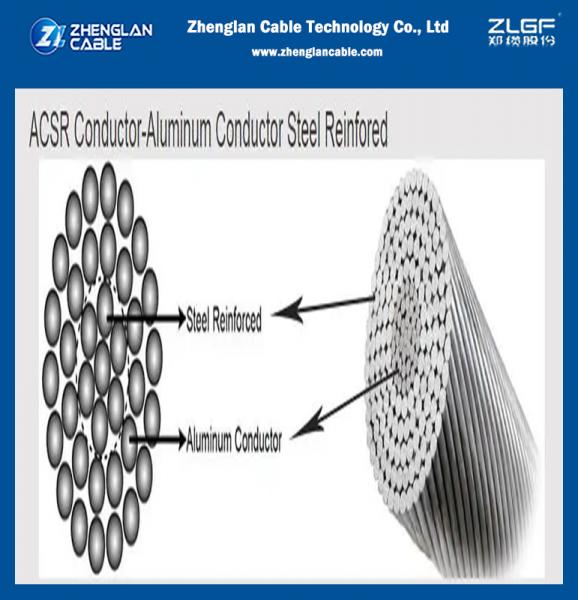

ACSR are formed by several wires of aluminum and galvanized steel, stranded in concentric layers. The inside of the ACSR is a steel "core", which mainly increases the strength; the outside is wrapped around the steel core with aluminum wire by twisting, and the aluminum strand mainly plays the role of transmitting electric energy.

Bare Conductor Electrical Cable STANDARD

BS EN50182 , IEC 61089, ASTM B232, BS 215-2, CSA C49M, GOST 839, NFC 34-120, GB/T1179-2008.

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Construction:

  • Concentric-lay stranded.
  • 1 up to 4 layers aluminum wires stranded, 6 to 84 aluminum wires.
  • 1 up to 3 layers steel wires as core, 1 to 37 steel wire.
  • Al/St 6/1, 7/1, 8/1, 12/7, 16/19, 18/1, 24/7, 26/7, 30/7, 30/19, 36/1, 54/7, 54/19, 72/7, 76/19, 84/19.
  • Coating od zinc, Zn-5A1-MM, high strength, Extra and Ultra available.
  • Can-do both left-hand lay and right hand lay.

The ACSR has simple structure, convenient installation and maintenance, low line cost, large transmission capacity, and is conducive to the laying of special geographical conditions such as crossing rivers and valleys. It has good electrical conductivity and sufficient mechanical strength and high tensile strength. , The distance of the tower pole can be enlarged and so on. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

ELECTRICAL PROPERTIES

[email protected]ºC Aluminium: 2.703 kg/dm
Galvanised Steel: 7.80 kg/dm
Temperature [email protected]°C Aluminium: 0.00403 (°C)
[email protected]°C Aluminium: Should not exceed 0.028264

linear Expansivity

Aluminium: 23 x10 (°C)
Galvanised Steel: 11.5 x10 (1/°C)

SERVICE CONDITIONS

Ambient Temperature -5°C – 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 – 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%

Technical date sheets

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

ACSR Conductor 1192.5MCM Bunting Bare Aluminum Overhead Power Transmission Line ASTM B232

CODE NAME AREA STRANDING AND WIRE DIAMETER APP. O.D WEIGHT BREAK LOAD D.C. RESISTANCE
Nominal Alum. Steel. Alum. Steel Total
AWG or MCM No. mm No. mm mm kg/km kg/km kg/km KN Ohm/km
BUNTING 1192.5 45 4.14 7 2.76 33.08 1674.36 327.00 2001.36 141.79 0.04793
