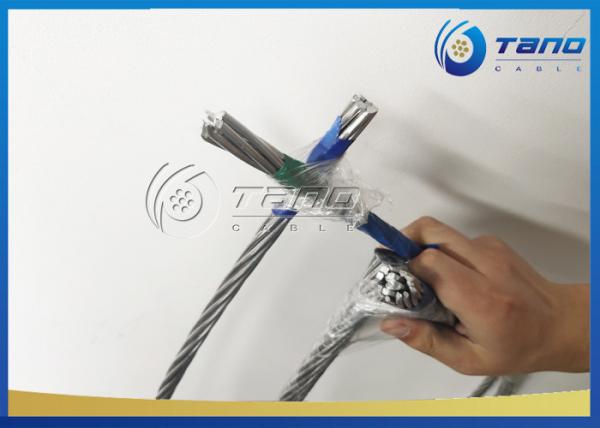

Bare Conductor All Aluminum Overhead Line Conductor Triton
Bare Conductor All Aluminum Overhead Line Conductor Triton image
Brand Name :
TANO CABLE
Model Number :
AAC
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000 KM Per Month
Delivery Time :
7-20 Days
Packaging Details :
by coil, carton, plastic bag, all wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Code Name :
Triton
Key Word :
Bare Line Conductor
Product Name :
AAC
Voltage :
0.6/1 kv
Package :
Roll and Wooden Drum
Insulation :
No Insulation
TANO CABLE AS 1531 Professional Overhead Bare Conductor All Aluminum Conductor Triton
Application of All Aluminum Conductor
The bare conductor:AAC , is used in overhead electrical power transmission and distribution lines with various grade voltage.
Standard of All Aluminum Conductor
AS 1531
Specifications of All Aluminum Conductor
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple
structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across
rivers and valleys where special geographical teatures exist.
Construction of All Aluminum Conductor
Technical Specification of All Aluminum Conductor
| AS 1531 | |||||||
| Code Name | Nominal Area |
No./Nominal diameter of wires |
Approximate Overal Diameter |
Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
|
| mm2 | No./mm | mm | kg/km | KN | ohm/km | ||
| Leo | 34.4 | 7/2.50 | 7.50 | 94.3 | 5.7 | 0.8330 | |
| Leonids | 41.6 | 7/2.75 | 8.25 | 113.0 | 6.7 | 0.6890 | |
| Libra | 49.5 | 7/3.00 | 9.00 | 135.0 | 8.0 | 0.5790 | |
| Mars | 77.3 | 7/3.75 | 11.30 | 211.0 | 11.8 | 0.3700 | |
| Mercury | 111.0 | 7/4.50 | 13.50 | 304.0 | 16.9 | 0.2580 | |
| Moon | 124.0 | 7/4.75 | 14.30 | 339.0 | 18.9 | 0.2320 | |
| Neptune | 158.0 | 19/3.25 | 16.30 | 433.0 | 24.7 | 0.1830 | |
| Orion | 183.0 | 19/3.50 | 17.50 | 503.0 | 28.7 | 0.1570 | |
| Pluto | 210.0 | 19/3.75 | 18.80 | 576.0 | 31.9 | 0.1370 | |
| Saturn | 262.0 | 37/3.00 | 21.00 | 721.0 | 42.2 | 0.1100 | |
| Sirius | 307.0 | 37/3.25 | 22.80 | 845.0 | 48.2 | 0.0940 | |
| Taurus | 337.0 | 19/4.75 | 23.80 | 924.0 | 51.3 | 0.0857 | |
| Triton | 409.0 | 37/3.75 | 26.30 | 1120.0 | 62.2 | 0.0706 | |
| Uranus | 506.0 | 61/3.25 | 29.30 | 1400.0 | 75.2 | 0.0572 | |
| Ursula | 587.0 | 61/3.50 | 31.50 | 1620.0 | 87.3 | 0.0493 | |
| Venus | 673.0 | 61/3.75 | 33.80 | 1860.0 | 97.2 | 0.0429 | |
FAQ
1.What types of products do you have?
As a manufacturer, we produce power cable, control cable, communication cable and electric wires. In addition, the size of cable
and wire can be customized.
2. How long have you been in the business?
We have been a leading company in China for more than 15 years.
3. What certifications do you have?
CCC CE and so on.
4. What do you take to win the trust from customers?
Put customers first, put quality first, put reputation first
We are China Bare Conductor All Aluminum Overhead Line Conductor Triton manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
