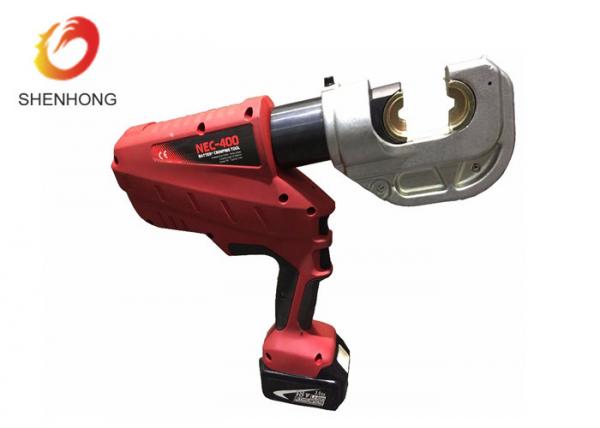

Battery Powered Hydraulic Cable Crimping Tool NEC-400 Up To 400sq.Mm With OLED Display
Battery Powered Hydraulic Cable Crimping Tool NEC-400 Up To 400sq.Mm With OLED Display image
Brand Name :
SHENHONG
Model Number :
NEC-400
Certification :
ISO
Place of Origin :
Jiangsu,China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
500pcs per month
Delivery Time :
7days after payment
Packaging Details :
plastic box
Crimping type :
Hexagon
Crimping range :
16-400mm2
Crimping force :
130KN
Name :
Hydraulic Battery Powered Crimping Tool
Crimp charge :
120times(Cu 150mm²)
Stroke :
42mm
Battery powered hydraulic crimping tool NEC-400 up to 400sq.mm with OLED display
Product Application
Micro computer control system-automatically detects the pressure when it crimping with double safety protect.
The too is equipped with a double piston pump which characterized with a fast approach towards the connecting material and transfer to high pressure automatically by slow crimping.
Specification
|
Crimping force: |
130kN |
||
|
Crimping range: |
16-400mm2 |
||
|
Stroke: |
42mm |
||
|
Crimp/Charge: |
120times(CU150mm2 |
||
|
Crimping cycle: |
10-20S |
||
|
Voltage: |
18V |
||
|
Capacity: |
3,0Ah |
||
|
Charging time: |
45mins |
||
|
Package: |
Plastic case |
||
|
ACCESSORIES |
|||
|
Crimpingdie: |
16.25.35.50.70.95.120.150.185.240.300.400 |
||
|
Battery: |
2pcs |
||
|
Charger: |
1pc(AC110-240V,50-60HZ) |
||
|
Sealing ring of cylinder: |
1set |
||
|
Sealing ring of safety valve: |
1set |
||
We are China Battery Powered Hydraulic Cable Crimping Tool NEC-400 Up To 400sq.Mm With OLED Display manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
