Black Aluminium Conductor AWG 600V Aerial Bundled Cable

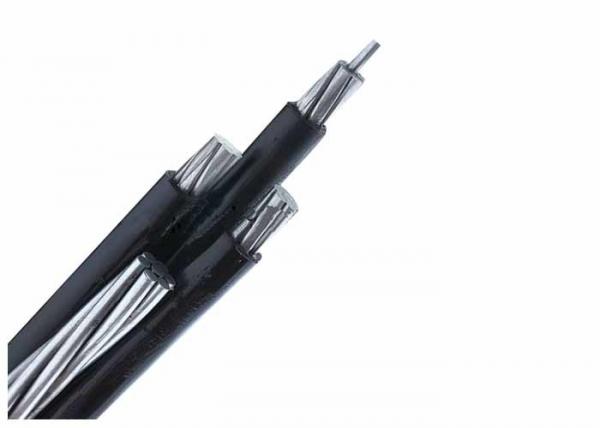

Black Aluminium Conductor AWG 600V Aerial Bundled Cable image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Neutral Conductor :
Aluminium Alloy
Rated Voltage :
0.6/1KV
Insulation :
XLPE
Phase Conductor :
Aluminium
color :
black
Size :
AWG
Black Aluminium Conductor AWG 600V Aerial Bundled Cable
USE:
To supply power from the utilitys lines to the consumers weatherhead. For service at 600 volts or less(phase to phase) at a conductor temperature of 75oC maximum for polyethylene insulation or 90 oC maximum for crosslinked insulation.
structure
1. stranded aluminium conductor
2. PE or XLPE insulation
3. ACSR, AAAC,Galvanised steel wire Messenger wire
3 power cores consisting of standard aluminium conductors, insulated with XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor
Technical Data:
Maksimum operating temperature 90 degree
Maximum short-circuit temperature 250 degree.Service drop( ABC cables) are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like village.
TECHNICAL PARAMETERS:
| Code Name | Phase Conductor | Bare Neutral | Approx.Weight | ||||
|---|---|---|---|---|---|---|---|
| Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE | |
| AWG | – | mil | AWG | – | lbs/1000ft | ||
| AAC Neutral Messenger | |||||||
| Pekingese | 6 | Solid | 45 | 6 | 7/w | 63.5 | 61.7 |
| Collie | 6 | 7/w | 45 | 6 | 7/w | 66.8 | 63.1 |
| Dachshund | 4 | Solid | 45 | 4 | 7/w | 95.5 | 93.4 |
| Spaniel | 4 | 7/w | 45 | 4 | 7/w | 100.5 | 95.4 |
| Doberman | 2 | 7/w | 45 | 2 | 7/w | 152.7 | 145.7 |
| Malemute | 1/0 | 19/w | 60 | 1/0 | 7/w | 242.6 | 234.2 |
| 6201 Alloy Neutral Messenger | |||||||
| Chihuahua | 6 | Solid | 45 | 6 | 7/w | 67.6 | 65.8 |
| Vizsla | 6 | 7/w | 45 | 6 | 7/w | 70.9 | 67.2 |
| Harrier | 4 | Solid | 45 | 4 | 7/w | 102.0 | 99.9 |
| Code Name | Phase Conductor | Bare Neutral | Approx.Weight | |||||
|---|---|---|---|---|---|---|---|---|
| Size | Stranding | Insulation Thickness | Size | Stranding | XLPE | PE | ||
| AWG | – | mil | AWG | – | lbs/1000ft | |||
| ACSR Neutral Messenger | ||||||||
| Setter | 6 | Solid | 45 | 6 | 6/1 | 75.0 | 73.2 | |
| Shepherd | 6 | 7/w | 45 | 6 | 6/1 | 78.3 | 74.6 | |
| Eskimo | 4 | Solid | 45 | 4 | 6/1 | 113.7 | 111.6 | |
| Terrier | 4 | 7/w | 45 | 4 | 6/1 | 118.7 | 113.6 | |
| Chow | 2 | 7/w | 45 | 2 | 6/1 | 181.7 | 174.7 | |
| Bull | 1/0 | 19/w | 60 | 1/0 | 6/1 | 288.7 | 280.3 | |
| 6201 Alloy Neutral Messenger | ||||||||
| Whippet | 4 | 7/w | 45 | 4 | 7/w | 107.0 | 101.9 | |
| Schnauzer | 2 | 7/w | 45 | 2 | 7/w | 163.3 | 156.2 | |
| Heeler | 1/0 | 19/w | 60 | 1/0 | 7/w | 259.2 | 250.8 | |
Note:
(1) Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.
(2) Conductor temperature of 90°C for XLPE, 75°C for PE; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun.
