Black EPR Rubber Insulated CSP Sheathed Electric Cable

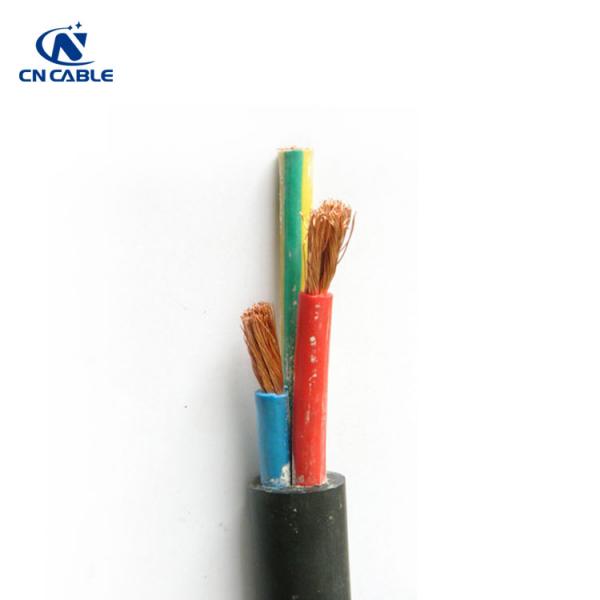

Black EPR Rubber Insulated CSP Sheathed Electric Cable image
Multi Cores EPR Rubber Insulated CSP Sheathed H05BN4-F Electric Cables
Application
These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. The electric cables are also suitable for caravans and camping equipment… The electric cables maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.
Standard
<HAR> CENELEC HD 22.12 S1
IEC 60245-4
Cable Construction
GSP outer jacket
Fine bare copper strands
Technical Characteristics
Technical parameter
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.1 | 29 | 54 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.7 | 43 | 68 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 7.3 | 58 | 82 |
| 18(24/32) | 5 x 0.75 | 0.6 | 1.0 | 8.1 | 72 | 108 |
| 17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.6 | 19 | 65 |
| 17(32/32) | 3 x 1 | 0.6 | 0.9 | 7.0 | 29 | 78 |
| 17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.6 | 38 | 95 |
| 17(32/32) | 5 x 1 | 0.6 | 1.0 | 8.5 | 51 | 125 |
