Black Triplex Service Drop Cable ACSR Neutral Conductor With ABC Cable

China Black Triplex Service Drop Cable ACSR Neutral Conductor With ABC Cable supplier

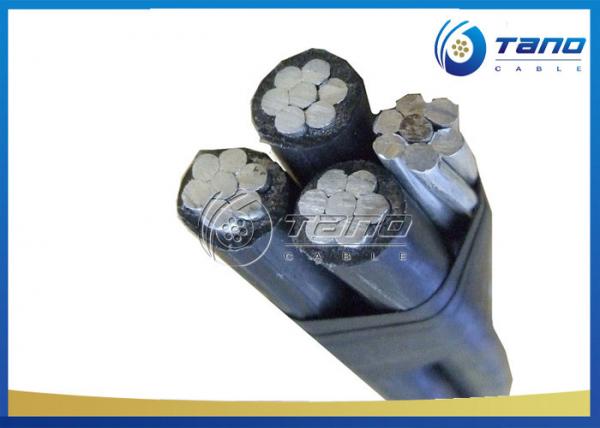

Black Triplex Service Drop Cable ACSR Neutral Conductor With ABC Cable image

Get a Quote Email to us

Brand Name :
TANO CABLE

Model Number :
Service drop cable

Certification :
ISO

Place of Origin :
China

MOQ :
2000 Meters

Price :
Negotiable

Payment Terms :
L/C, D/A, D/P, T/T

Supply Ability :
3000KM per month

Delivery Time :
7-20 working days

Packaging Details :
by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery

Conductor Type :
Stranded

Key words :
Service Drop Cable

Insulation Material :
XLPE

rating voltage :
0.6 / 1kV

Color :
Black

Messenger :
ACSR

TANO CABLE Triplex Service Drop Bare ACSR Neutral conductor with ABC Cable

Application of Overhead Service Drop Aluminum Conductor

This triplexed cable is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.

Construction of Overhead Service Drop Aluminum Conductor

  • Two insulated phase conductors twisted around a bare aluminum alloy or ACSR neutral conductor.
  • Conductors: Aluminum alloy 1350-H19 wire.
  • Insulation: Black thermoset cross-linked polyethylene (XLPE).
  • Neutral: Bare aluminum alloy or ACSR

Installation:
For service at 600 volts or less (phase to phase) at a maximum conductor temperature of 75C for Polyethylene insulation or 90C for Cross-Linked (XLPE) insulation

Technical Specification of Overhead Service Drop Aluminum Conductor

Code Word Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)		 Allowable
Ampacities+
Size
(AWG)		 Stranding Insul.
Thick.
(mils)		 Equiv.
Dia.
(AWG)++		 Size
(kcmil)		 Stranding Rated Strength
(Ibs.)		 XLP POLY XLP POLY
6201 ALLOY NEUTRAL-MESSENGER
Minex 6 1 45 6 30.58 7 1110 101 101 85 70
Hippa 6 7 45 6 30.58 7 1110 107 107 85 70
Prawn 4 1 45 4 48.69 7 1760 152 152 115 90
Barnacle 4 7 45 4 48.69 7 1760 160 160 115 90
Shrimp 2 7 45 2 77.47 7 2800 243 243 150 120
Gammarus 1/0 7 60 1/0 123.3 7 4460 390 390 205 160
Leda 1/0 9 60 1/0 123.3 7 4460 384 384 205 160
Dungenese 2/0 7 60 2/0 155.4 7 5390 483 483 235 185
Cyclops 2/0 11 60 2/0 155.4 7 5390 474 474 235 185
Flustra 3/0 17 60 3/0 195.7 7 6790 587 587 275 215
Lepas 4/0 18 60 4/0 246.9 7 8560 728 728 315 245

Code Word Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)		 Allowable
Ampacities+
Size
(AWG)		 Stranding Insul.
Thick.
(mils)		 Equiv.
Dia.
(AWG)++		 Size
(kcmil)		 Stranding Rated Strength
(Ibs.)		 XLP POLY XLP POLY
6201 ALLOY NEUTRAL-MESSENGER
Artemia 4 1 45 6 30.58 7 1110 135 135 115 90
Crab 4 7 45 6 30.58 7 1110 143 143 115 90
Solaster 2 7 45 4 48.69 7 1760 216 216 150 120
Sandcrab 1/0 7 60 2 77.47 7 2800 347 347 205 160
Echinus 1/0 9 60 2 77.47 7 2800 341 341 205 160
Fulgar 3/0 17 60 1/0 123.3 7 4460 519 519 275 215
Arca 4/0 18 60 2/0 155.4 7 5390 643 643 315 245
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.
++Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.

Code Word Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)		 Allowable
Ampacities+
Size
(AWG)		 Stranding Insul.
Thick.
(mils)		 Size
(kcmil)		 Stranding Rated Strength
(Ibs.)		 XLP POLY XLP POLY
AAC NEUTRAL-MESSENGER
Patella 6 7 45 6 7 563 103 103 85 70
Oyster 4 7 45 4 7 881 154 154 115 90
Clam 2 7 45 2 7 1350 233 233 150 120
Murex 1/0 7 60 1/0 7 1990 374 374 205 160
Purpura 1/0 9 60 1/0 7 1990 368 368 205 160
Nassa 2/0 7 60 2/0 7 2510 462 462 235 185
Melita 3/0 17 60 3/0 19 3310 562 562 275 215
Portunus 4/0 18 60 4/0 19 4020 696 696 315 245
Nannynose 336.4 19 80 336.4 19 6146 1118 1118 420 325
* Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+ Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Code Word Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)		 Allowable
Ampacities+
Size
(AWG)		 Stranding Insul.
Thick.
(mils)		 Size
(kcmil)		 Stranding Rated Strength
(Ibs.)		 XLP POLY XLP POLY
ACSR NEUTRAL-MESSENGER
Paludina 6 1 45 6 43252 1190 109 109 85 70
Voluta 6 7 45 6 43252 1190 114 114 85 70
Whelk 4 1 45 4 43252 1860 — 164 115 90
Periwinkle 4 7 45 4 43252 1860 172 172 115 90
Conch 2 7 45 2 43252 2850 262 262 150 120
Neritina 1/0 7 60 1/0 43252 4380 420 420 205 160
Cenia 1/0 9 60 1/0 43252 4380 414 414 205 160
Runcina 2/0 7 60 2/0 43252 5310 520 520 235 185
Triton 2/0 11 60 2/0 43252 5310 512 512 235 185
Mursia 3/0 17 60 3/0 43252 6620 635 635 275 215
Zuzara 4/0 18 60 4/0 43252 8350 789 789 315 245
Limpet 336.4 19 80 336.4 43118 8680 1167 1167 420 325
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

Code Word Phase Conductor Bare Neutral Messenger Weight
Per 1000ft.(Ibs.)		 Allowable
Ampacities+
Size
(AWG)		 Stranding Insul.
Thick.
(mils)		 Size
(kcmil)		 Stranding Rated Strength
(Ibs.)		 XLP POLY XLP POLY
ACSR REDUCED NEUTRAL-MESSENGER
Scallop 4 1 45 6 43252 1190 — 142 115 90
Strombus 4 7 45 6 43252 1190 151 151 115 90
Cockle 2 7 45 4 43252 1860 228 228 150 120
Janthina 1/0 7 60 2 43252 2853 366 366 205 160
Ranella 1/0 9 60 2 43252 2853 360 360 205 160
Cavolinia 2/0 7 60 1 43252 3550 453 453 235 185
Clio 2/0 11 60 1 43252 3550 444 444 235 185
Aega 3/0 17 60 1/0 43252 4380 549 549 275 215
Cerapus 4/0 18 60 2/0 43252 5310 681 681 315 245
*Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP).
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun.

ADDITIONAL STANDARDS​ of Overhead Service Drop Aluminum Conductor

  • ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
  • ASTM B-231: Concentric lay stranded aluminum 1350 conductors.
  • ICEA S-76-474: Neutral supported power cable assemblies with weather resistant extruded insulation rated at 600V.

FAQ of Overhead Service Drop Aluminum Conductor

1. Q: Are you the manufacturer or trading company?

A: We are the manufacturer and exporter.

2. Q: What's your MOQ?

A: It's base on the cable or wire type. Mabye 2-5km.

3. Q: How long is your delivery date?

A: It's general within 15 days after your prepayment,It according to quantity.

4.Q:What is your terms of payment ?

A:30% T/T in advance,Then 70% T/T or L/C balance before shipment.

5.Q:Do you provied sample? It's free or extra?

A:Yes,we could offer the sample for free charge.

If anything else you want, pls feel free to contact with us.

We are China Black Triplex Service Drop Cable ACSR Neutral Conductor With ABC Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
