Braiding PUR Sheath Stranded Copper Cable For Mining

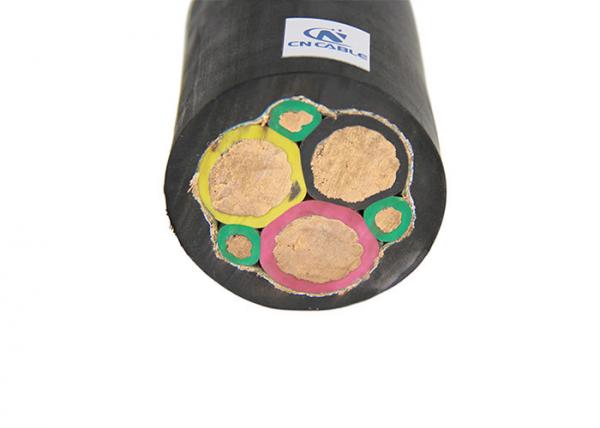

Braiding PUR Sheath Stranded Copper Cable For Mining image
PUR Sheath Power Reel Cable with Stranded Copper for for Mining Work
PUR Mining HF/FR
High quality cable for mining environment.
Reeling Mining Rubber Cable Description
Application:
The cables are suitable for movable facilities such as movable cranes for container, lifts, movable bigger facilities, grab dredgers and the sites of machinery stress caused by mining on the ground/well bottoms.
Specifications:
| Part Name | Outer diameter approx(mm) | Net weight per 1000m(kg) |
| 03X25 + 3G6 + 2X1.5 | 27 | 1250 |
| 03X35 + 3G6 + 2X1.5 | 29.3 | 1550 |
| 03X50 + 3G10 + 2X1.5 | 33.5 | 2300 |
| 03X70 + 3G16 + 2X1.5 | 38.5 | 3150 |
| 03X95 + 3G16 + 2X1.5 | 42.5 | 3850 |
| 03X120 + 3G25 + 2X1.5 | 46.5 | 5100 |
| 03X150 + 3G25 + 2X1.5 | 54 | 6100 |
| 03X185 + 3G35 + 2X1.5 | 58.5 | 7200 |
| 03X240 + 3G50 + 2X1.5 | 63.5 | 8950 |
| 03X25 + 3G6 + 2X2.5 | 27 | 1313 |
| 03X35 + 3G6 + 2X2.5 | 29.3 | 1628 |
| 03X50 + 3G10 + 2X2.5 | 33.5 | 2415 |
| 03X70 + 3G16 + 2X2.5 | 38.5 | 3308 |
| 03X95 + 3G16 + 2X2.5 | 42.5 | 4043 |
| 03X120 + 3G25 + 2X2.5 | 47 | 5540 |
| 03X150 + 3G25 + 2X2.5 | 54 | 6450 |
| 03X185 + 3G35 + 2X2.5 | 58.5 | 7560 |
| 03X240 + 3G50 + 2X2.5 | 63.5 | 9398 |
| 04G16 | 22 | 860 |
Standard:
Flame-retardant: VDE 0482-332-1-2/IEC 60332-1-2
Oil-resistant: EN 60811-2-1
Construction:
Conductor :bare copper wire , flexible ,class5
Insulation: XLPE
Reinforce Core: High Tension Soft Textile Material
Inner sheath: Polyurethan , Yellow
Reinforce Layer: Braiding , High Tension Soft Textile Material
Outer Sheath: Polyurethan , Yellow
Core identification: colours acc. to VDE 0293 (HD308)
Technical data:
Rated voltage: 0.6/1KV
Max. Conductor operating Temperature: 90 °C
Permitted outer cable temperature, fixed, °C: -40 – +80 °C
Permitted outer cable temperature, moved, °C: -30 – +80 °C
Bending radius: fixed installation: 6 D , moving application 8D
Maximum tensile strength at the conductor: 25 N/mm²
Operating speed random, m/min.: 180 m/min.
Operating speed festoon, m/min.: 200 m/min.
Reeling Mining Rubber Cable Packing
A: Roll of 100 m.
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z – Length to the client's requirement.
FAQ
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4:What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
