BS 215 All Aluminum Conductor Wasp 7 / 4.39mm Diameter Bare Overhead Electrical Cable

 China BS 215 All Aluminum Conductor Wasp 7 / 4.39mm Diameter Bare Overhead Electrical Cable supplier

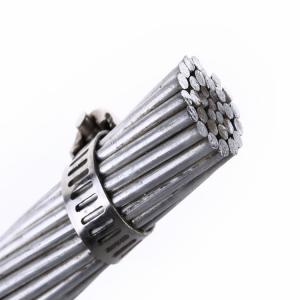

BS 215 All Aluminum Conductor Wasp 7 / 4.39mm Diameter Bare Overhead Electrical Cable image

Get a Quote Email to us

Brand Name :Suntech
Model Number :AAC
Certification :ISO9001,CCC
Place of Origin :Ningbo,China
MOQ :3000m
Price :Get the newest price
Payment Terms :L/C, T/T, Western Union
Supply Ability :5000Ton/Month
Delivery Time :15-20 workdays
Packaging Details :Exported Wooden Case or Containers
Name :Bare AAC Electrical Overhead Application Cable
Type :Bare
Usage :Transmission Line
Insulation Material :No
Core :7,19,37 Stranded
Conductor :AAC/ACSR/AAAC
BS 215 Standard AAC (ALL Aluminum Conductor) Wasp Conductor 7/4.39mm Wire Diameter Bare Overhead Electrical Cable

Concentric lay stranded Aluminium Conductor ( AAC) is made up of one or more strands of hard drawn 1350 aluminum alloy. These conductors are used in low, medium and high voltage overhead lines. AAC has seen extensive use in urban areas where spans are usually short but high conductivity us required

This product is widely used in the overhead power distribution system in our country and it is becoming more and more popular in the forming electrified wire network.

BS-215:1970 AAC

BS EN 50182:2001 AAC

ASTM B231-90 AAC

DIN 48201-5-81 AAC

IEC 61089(1991-06) AAC

BS 215:1970 AAC

Code name Nominal Stranding Wire Diameter Overall Diameter Total Area Approximate Weight Break Load DC Resistance at 20℃ Current Rating
mm2 No. mm mm mm2 kg/km kN Ω,km A
Midge 22 7 2.06 6.18 23.33 64 3.99 1.22700 114
Ant 50 7 3.1 9.30 52.83 145 8.28 0.54190 181
Fly 60 7 3.4 10.20 63.55 175 9.90 0.45050 199
Wasp 100 7 4.39 13.17 105.95 292 16.00 0.27020 271
Hornet 150 19 3.25 16.25 157.62 434 25.70 0.18250 346
Chafer 200 19 3.78 18.90 213.22 587 32.40 0.13490 414
Cockroach 250 19 4.22 21.10 265.75 731 40.40 0.10830 470
Butterfly 300 19 4.65 23.25 322.66 888 48.75 0.08916 528
Centipede 400 37 3.78 26.46 415.22 1143 63.10 0.06944 619

We are China BS 215 All Aluminum Conductor Wasp 7 / 4.39mm Diameter Bare Overhead Electrical Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
