BS 7870-5 Standard Aerial Bundled Cable , LV ABC Cable AL / XLPE Insulated

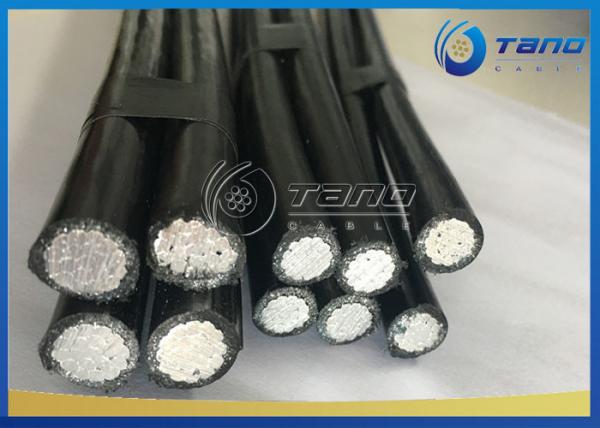

BS 7870-5 Standard Aerial Bundled Cable , LV ABC Cable AL / XLPE Insulated image
Brand Name :
TANO CABLE
Model Number :
Aerial Bundled Cable
Certification :
ISO CCC certificated
Place of Origin :
China
MOQ :
2000 meters
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
2000000 meters per month
Delivery Time :
7-20 work days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Conductor :
Compacted conductor
Material :
All aluminum conductor
Colour :
Black
Cores :
1 2 3 4 5 cores
Type :
Low Voltage
Insulated :
PVC
TANO CABLE BS 7870-5 Standard Aerial Bundled Cable AL / XLPE Insulated LV Cable
Description
Aerial Bundled Cable(ABC)
Application
The aerial bundled cables are used for overhead distribution line and electrical installations with alternating power networks with nominal voltage U0/U 0.6/1kV or in direct power networks with maximum voltage according to land 0.9kV.
Standard
Basic design to BS 7870-5
Construction Parameters
BS 7870-5
| Number of conductors and Cross section area |
Phase Core | Neutral Core | Complete Cable | |||||||
| No. and Section area |
No. of wires |
Diameter of conductor (approx.) |
Insulation Thickness |
No. and Section area |
No. of wires |
Diameter of conductor (approx.) |
Insulation Thickness |
Overall Diameter (approx.) |
Weight (approx.) |
|
| mm2 | mm2 | No. | mm | mm | mm2 | No. | mm | mm | mm | kg/km |
| 1×25 | 1×25 | 7 | 6.0 | 1.3 | – | – | – | – | 8.6 | 96 |
| 1×35 | 1×35 | 7 | 7.0 | 1.3 | – | – | – | – | 9.6 | 126 |
| 1×50 | 1×50 | 19 | 8.4 | 1.5 | – | – | – | – | 11.4 | 183 |
| 1×70 | 1×70 | 19 | 10.0 | 1.5 | – | – | – | – | 13.0 | 236 |
| 1×95 | 1×95 | 19 | 11.6 | 1.7 | – | – | – | – | 15.0 | 323 |
| 1×120 | 1×120 | 19 | 13.0 | 1.7 | – | – | – | – | 16.4 | 399 |
| 2×25 | 1×25 | 7 | 6.0 | 1.3 | 1×25 | 7 | 6.0 | 1.3 | 17.2 | 192 |
| 2×35 | 1×35 | 7 | 7.0 | 1.3 | 1×35 | 7 | 7.0 | 1.3 | 19.2 | 252 |
| 2×50 | 1×50 | 19 | 8.4 | 1.5 | 1×50 | 19 | 8.4 | 1.5 | 22.8 | 365 |
| 2×70 | 1×70 | 19 | 10.0 | 1.5 | 1×70 | 19 | 10.0 | 1.5 | 26.0 | 472 |
| 2×95 | 1×95 | 19 | 11.6 | 1.7 | 1×95 | 19 | 11.6 | 1.7 | 30.0 | 645 |
| 2×120 | 1×120 | 19 | 13.0 | 1.7 | 1×120 | 19 | 13.0 | 1.7 | 32.8 | 798 |
| 3×25 | 2×25 | 7 | 6.0 | 1.3 | 1×25 | 7 | 6.0 | 1.3 | 18.5 | 288 |
| 3×35 | 2×35 | 7 | 7.0 | 1.3 | 1×35 | 7 | 7.0 | 1.3 | 20.6 | 378 |
| 3×50 | 2×50 | 19 | 8.4 | 1.5 | 1×50 | 19 | 8.4 | 1.5 | 24.5 | 548 |
| 3×70 | 2×70 | 19 | 10.0 | 1.5 | 1×70 | 19 | 10.0 | 1.5 | 28.0 | 708 |
| 3×95 | 2×95 | 19 | 11.6 | 1.7 | 1×95 | 19 | 11.6 | 1.7 | 32.3 | 968 |
| 3×120 | 2×120 | 19 | 13.0 | 1.7 | 1×120 | 19 | 13.0 | 1.7 | 35.3 | 1196 |
| 4×25 | 3×25 | 7 | 6.0 | 1.3 | 1×25 | 7 | 6.0 | 1.3 | 20.7 | 384 |
| 4×35 | 3×35 | 7 | 7.0 | 1.3 | 1×35 | 7 | 7.0 | 1.3 | 23.1 | 504 |
| 4×50 | 3×50 | 19 | 8.4 | 1.5 | 1×50 | 19 | 8.4 | 1.5 | 27.5 | 731 |
| 4×70 | 3×70 | 19 | 10.0 | 1.5 | 1×70 | 19 | 10.0 | 1.5 | 31.4 | 943 |
| 4×95 | 3×95 | 19 | 11.6 | 1.7 | 1×95 | 19 | 11.6 | 1.7 | 36.2 | 1290 |
| 4×120 | 3×120 | 19 | 13.0 | 1.7 | 1×120 | 19 | 13.0 | 1.7 | 39.6 | 1595 |
| 5×25 | 4×25 | 7 | 6.0 | 1.3 | 1×25 | 7 | 6.0 | 1.3 | 23.2 | 480 |
| 5×35 | 4×35 | 7 | 7.0 | 1.3 | 1×35 | 7 | 7.0 | 1.3 | 25.9 | 630 |
| 5×50 | 4×50 | 19 | 8.4 | 1.5 | 1×50 | 19 | 8.4 | 1.5 | 30.8 | 914 |
| 5×70 | 4×70 | 19 | 10.0 | 1.5 | 1×70 | 19 | 10.0 | 1.5 | 35.1 | 1179 |
| 5×95 | 4×95 | 19 | 11.6 | 1.7 | 1×95 | 19 | 11.6 | 1.7 | 40.5 | 1613 |
| 5×120 | 4×120 | 19 | 13.0 | 1.7 | 1×120 | 19 | 13.0 | 1.7 | 44.3 | 1993 |
Construction
1. Phase Conductor
Circular stranded, rounded, compacted aluminum conductor
2. Neutral(Messenger) Conductor
Circular stranded, rounded, compacted aluminum conductor
3. Insulation
Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)
FAQ
1. When can I get the price?
Usually, we provide quotation or offer within 24 hours after got your inquiry. If it is urgent for you to get price, please call us directly or clarify in your mail, and we will try our best to provide timely support.
It depends on the type and size of the cable and wire, anyway, we will give biggest support to help you satisfy the final client or end user.
3.Have you ever supplied cable or wore to our Country?
Our products have been exported to many Countries, mainly, Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, etc., almost covered all the world.
4. Can you provide Type Test Report?
Surely, we will give 100% support according to your instruction.
5. Can we represent your TANO CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
We are China BS 7870-5 Standard Aerial Bundled Cable , LV ABC Cable AL / XLPE Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
